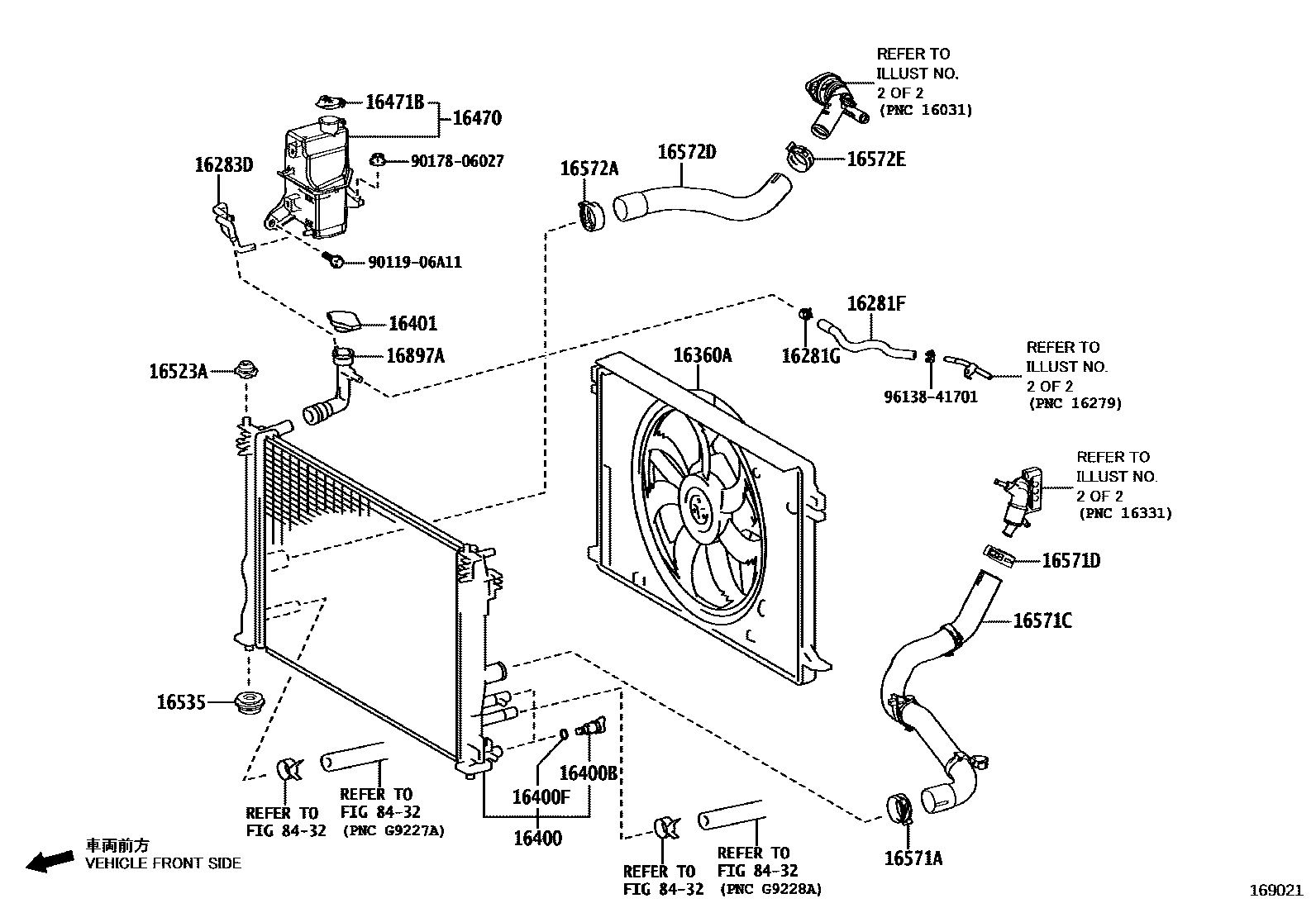

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16281HOSE, WATER BY-PASS, NO.4

main99555-10200iA25..AZSH3#202308

16281FHOSE, WATER BY-PASS, NO.5

main16282-25210iA25..AZSH36202308

main16282-25240iA25..AZSH37202312

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main96138-41901iA25..AZSH3#202308

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25..AZSH3#202308

16283DHOSE, WATER BY-PASS, NO.6

main16283-25150iA25..AZSH36202308

main16283-25190iA25..AZSH37202312

16360AFAN ASSY, W/MOTOR

main16360-25020iA25..AZSH36202308

main16360-25030iA25..AZSH37202312

16400RADIATOR ASSY

main16400-25130iA25..AZSH37202312

main16400-25141iA25..AZSH36202308

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iA25..AZSH36202308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iA25..AZSH36202308

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25..AZSH3#202308

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iA25..AZSH3#202308

16471BCAP, RESERVE TANK

main16471-23010iA25..AZSH3#202308

16523ACUSHION, RADIATOR SUPPORT

main16523-25010iA25..AZSH3#202308

16535SUPPORT, RADIATOR, LOWER

main16535-28030iA25..AZSH3#202308

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25..AZSH3#202308

16571CHOSE, RADIATOR, NO.1

main16571-25220iA25..AZSH36202308

main16571-25260iA25..AZSH37202312

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25..AZSH3#202308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AZSH3#202308

16572DHOSE, RADIATOR, NO.2

main16572-25140iA25..AZSH36202308

main16572-25200iA25..AZSH37202312

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25..AZSH3#202308

16897ANECK, FILLER

main16897-25041iA25..AZSH37202312

main16897-25091iA25..AZSH36202308

8432

9011906A11

main90119-06A11

9017806027

main90178-06027

9613841701

main96138-41701

25 parts on this diagram · 4 diagrams in section
