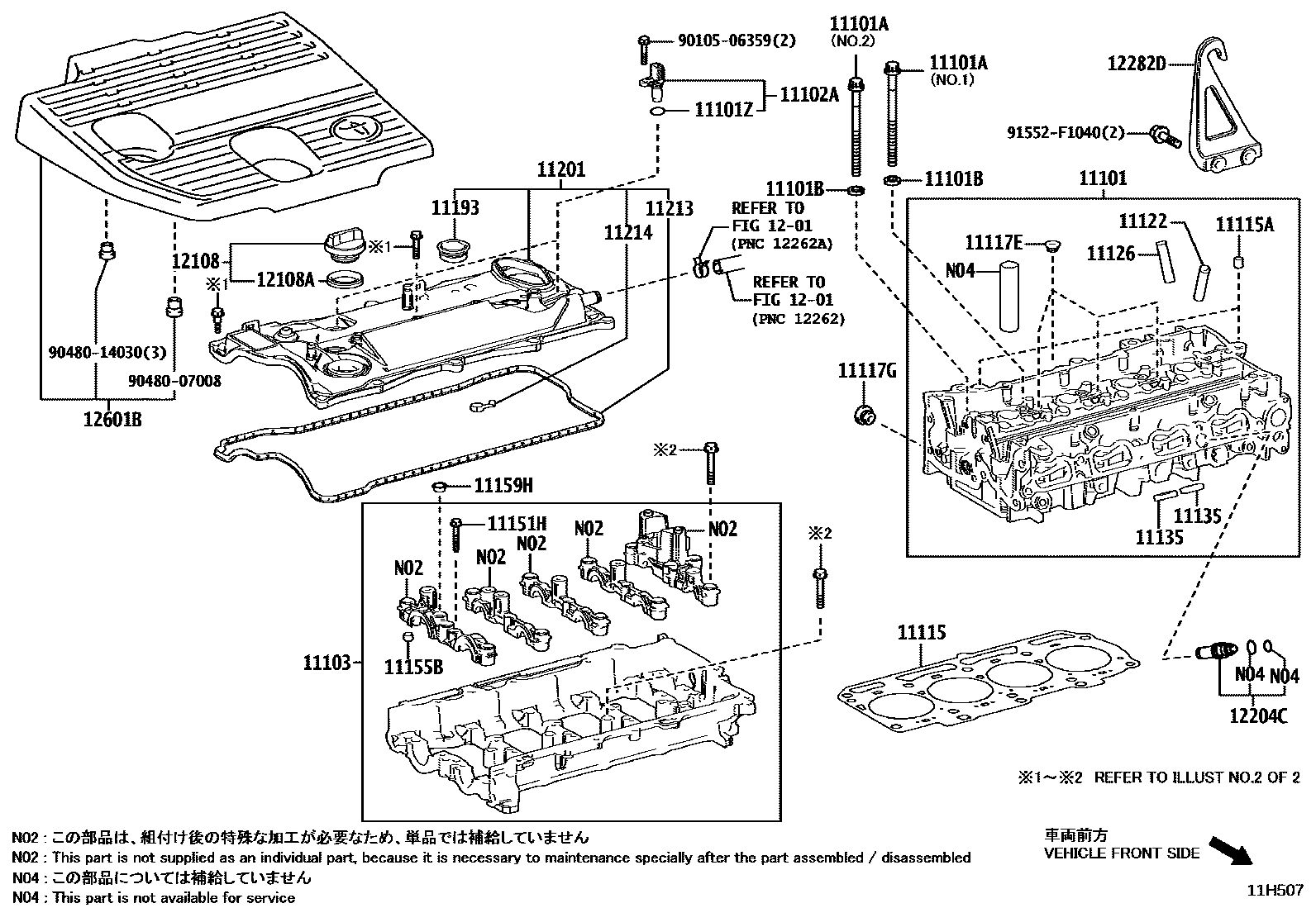

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11103HOUSING SUB-ASSY, CAMSHAFT
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010506359
main90105-06359
9048007008
main90480-07008
9048014030
main90480-14030
91552F1040
main91552-F1040
30 parts on this diagram · 2 diagrams in section
