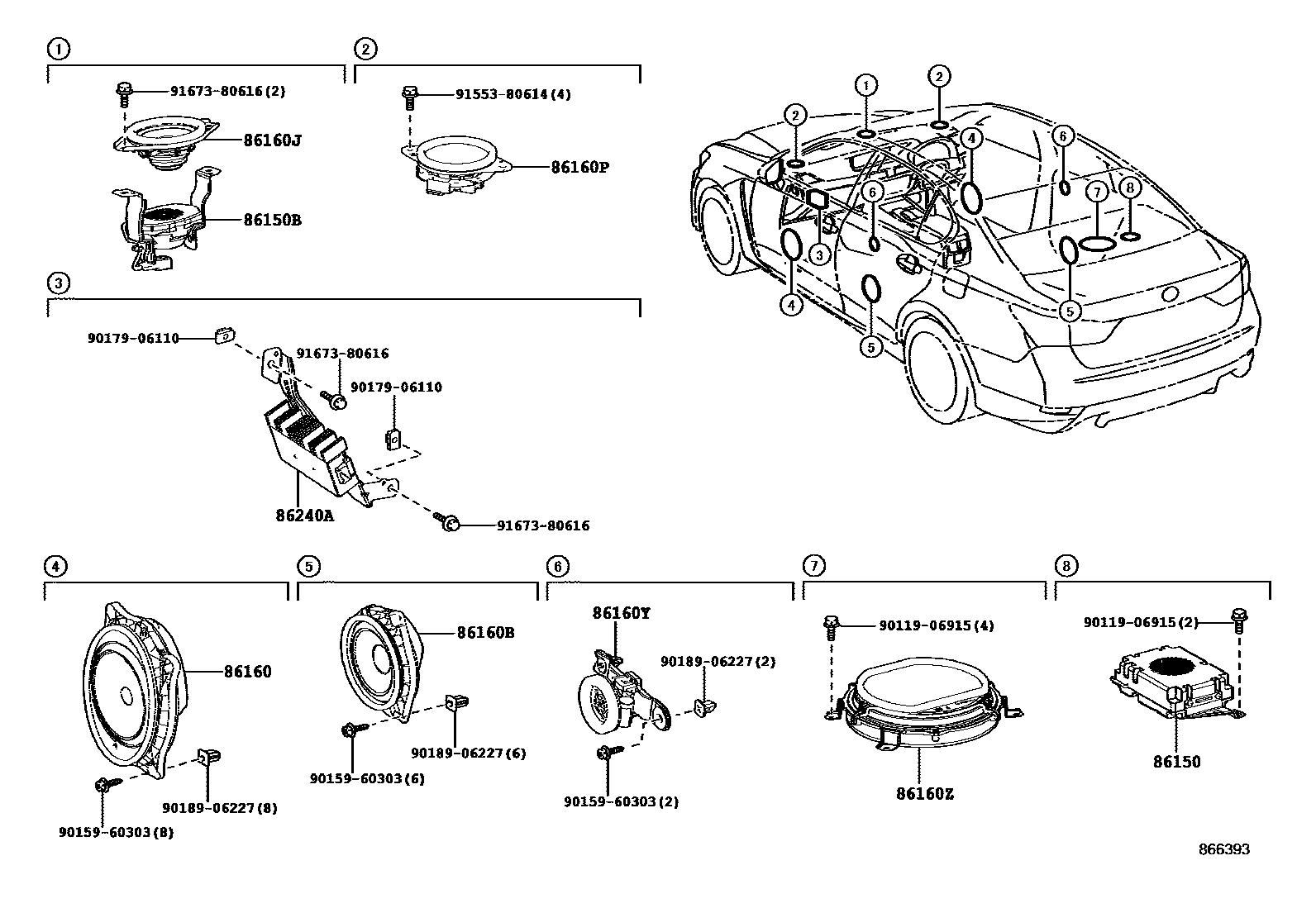

SPEAKER

0001 1������ 0002 1���������

86150SPEAKER ASSY, W/BOX, NO.1

main86150-30580iURL10¥11,300201510-202007

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-30560iURL10¥9,400201510-202007

86160SPEAKER ASSY, FRONT NO.1

main86160-48370iURL10¥7,000201510-202007

86160BSPEAKER ASSY, REAR

main86160-30E20iURL10¥8,400201510-202007

86160JSPEAKER ASSY, FRONT NO.3

main86160-30E60iURL10¥7,000201510-202007

86160PSPEAKER ASSY, FRONT NO.2

main86160-48380iURL10¥7,000201510-202007

86160YSPEAKER ASSY, REAR NO.2

main86150-30380iURL10¥8,400201510-202007

86160ZSPEAKER ASSY, REAR NO.3

main86160-30E50iURL10¥14,200201510-202007

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-30070iURL10¥45,400201510-201609

main86240-30090iURL10¥37,800201609-202007

9011906915

main90119-06915¥60

9015960303

main90159-60303¥70

9017906110

main90179-06110¥90

9018906227

main90189-06227¥70

9155380614

main91553-80614¥60

9167380616

main91673-80616¥60

15 parts on this diagram · 2 diagrams in section
