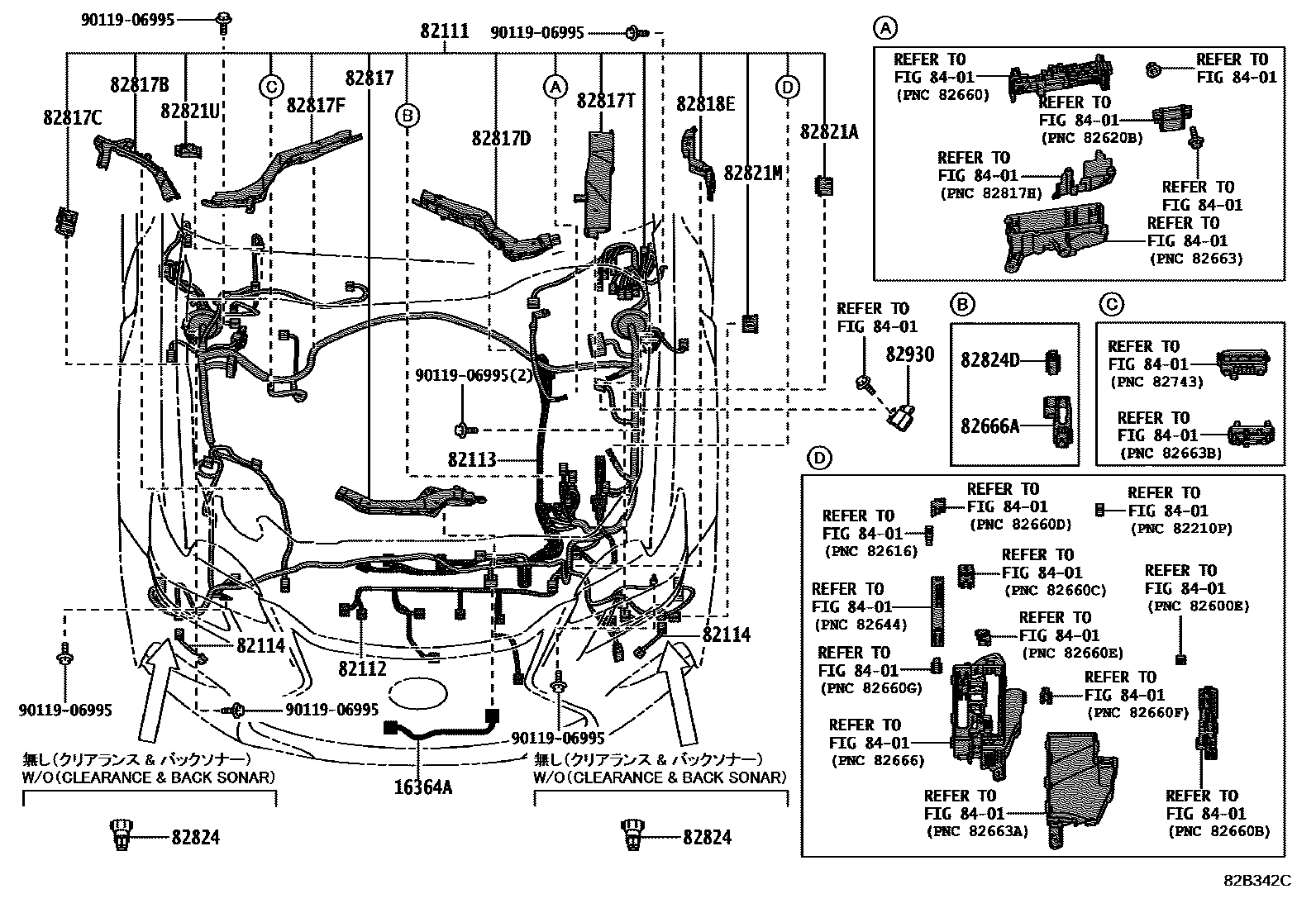

WIRING & CLAMP

0001 1����� ��� 0002 1����� 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��� 0007 1����� & ������ 0008 1���� 1/2 0009 1���� 2/2

16364AWIRE, COOLING FAN

main16364-38040i2URGSE..URL10201510-202007

82111WIRE, ENGINE ROOM MAIN

main82111-3AZ00iURL10201510-201609

main82111-3AZ01iURL10201609-201709

main82111-3AZ02iURL10201709-202007

82112WIRE, ENGINE ROOM, NO.2

main82112-30N00iURL10201510-202007

82113WIRE, ENGINE ROOM, NO.3

main82113-24050iURL10201510-202007

82114WIRE, ENGINE ROOM, NO.4

main82114-30360iURL10201510-202007

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iURL10201510-202007

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30X30iURL10201510-202007

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30D30iURL10201510-202007

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-30K20iURL10201510-201709

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30M20iURL10201510-202007

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-53280iURL10201510-202007

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-30A90iURL10201709-202007

main82817-30Z00iURL10201510-201709

sub82817-30A90

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-30N40iURL10201510-202007

82818EPROTECTOR, WIRING HARNESS, NO.6

main82817-24A70iURL10201510-202007

82821ACOVER, CONNECTOR

main82821-50560iURL10201510-202007

82821MCOVER, CONNECTOR

main82821-35040iURL10201510-202007

82821UCOVER, CONNECTOR

main82821-22120iURL10201510-202007

82824CONNECTOR, WIRING HARNESS

main82824-30720iURL10201510-202007

82824DCONNECTOR, WIRING HARNESS

main82824-30180iURL10201510-202007

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30040iURL10201510-202007

8401

9011906995

main90119-06995

22 parts on this diagram · 9 diagrams in section
