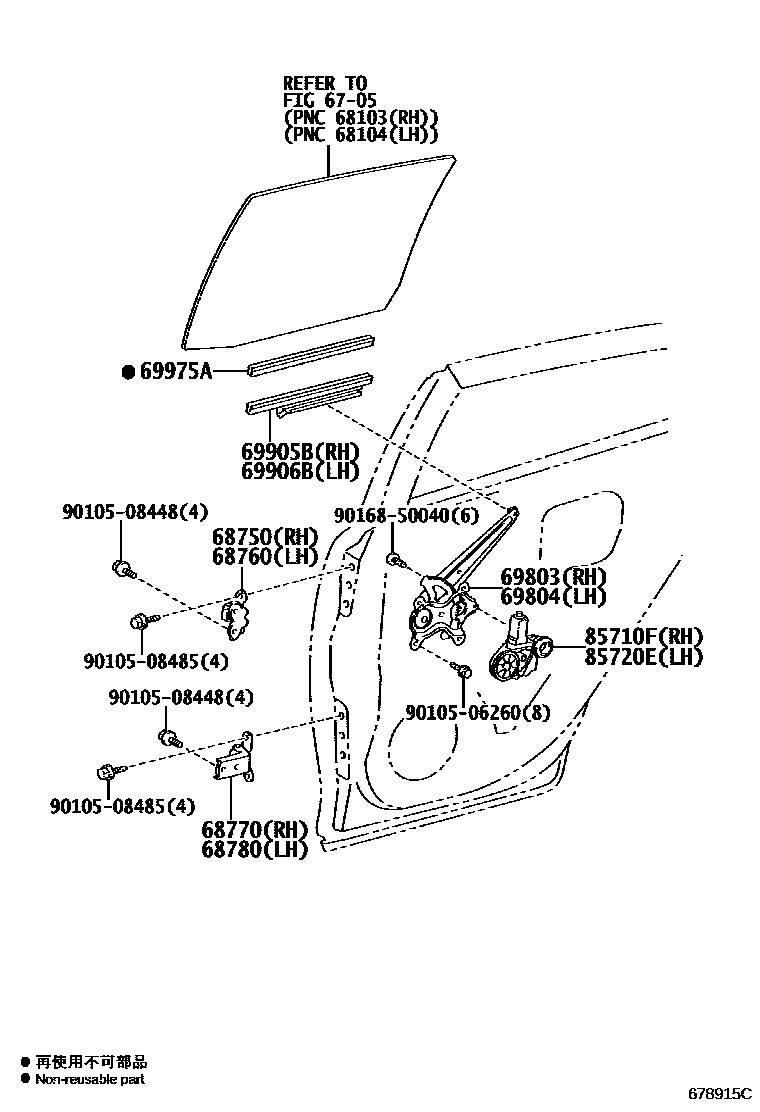

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iURL10¥1,850201510-202007

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iURL10¥1,850201510-202007

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60040iURL10¥2,470201510-202007

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60040iURL10¥2,470201510-202007

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iURL10¥4,250201510-202007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iURL10¥4,250201510-202007

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iURL10¥600201510-202007

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iURL10¥600201510-202007

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030iURL10¥570201510-202007

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60341iURL10¥23,000201510-202007

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60361iURL10¥23,000201510-202007

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

16 parts on this diagram · 1 diagram in section
