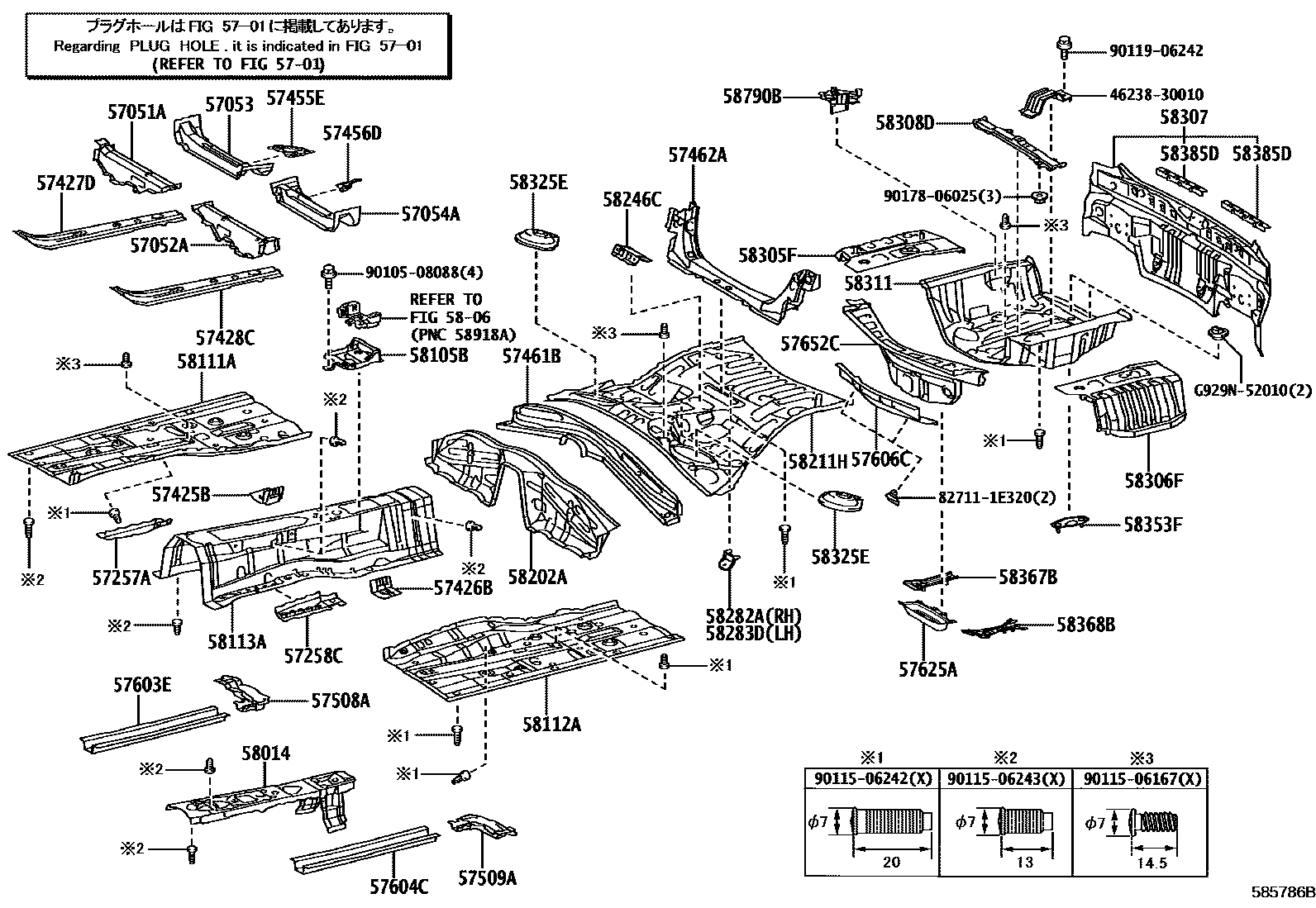

FLOOR PAN & LOWER BACK PANEL
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH
57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH
57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57625AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR OUTSIDE
57652CMEMBER, REAR FLOOR CROSS, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
5806
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58385DBRACKET, REAR BUMPER COVER
58790BCARRIER ASSY, JACK
4623830010PROTECTOR, PLUNGER LOCK PIN
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010508088
9011506167
9011506242
9011506243
9011906242
9017806025
G929N52010PLUG, BATTERY DRAIN
53 parts on this diagram · 2 diagrams in section
