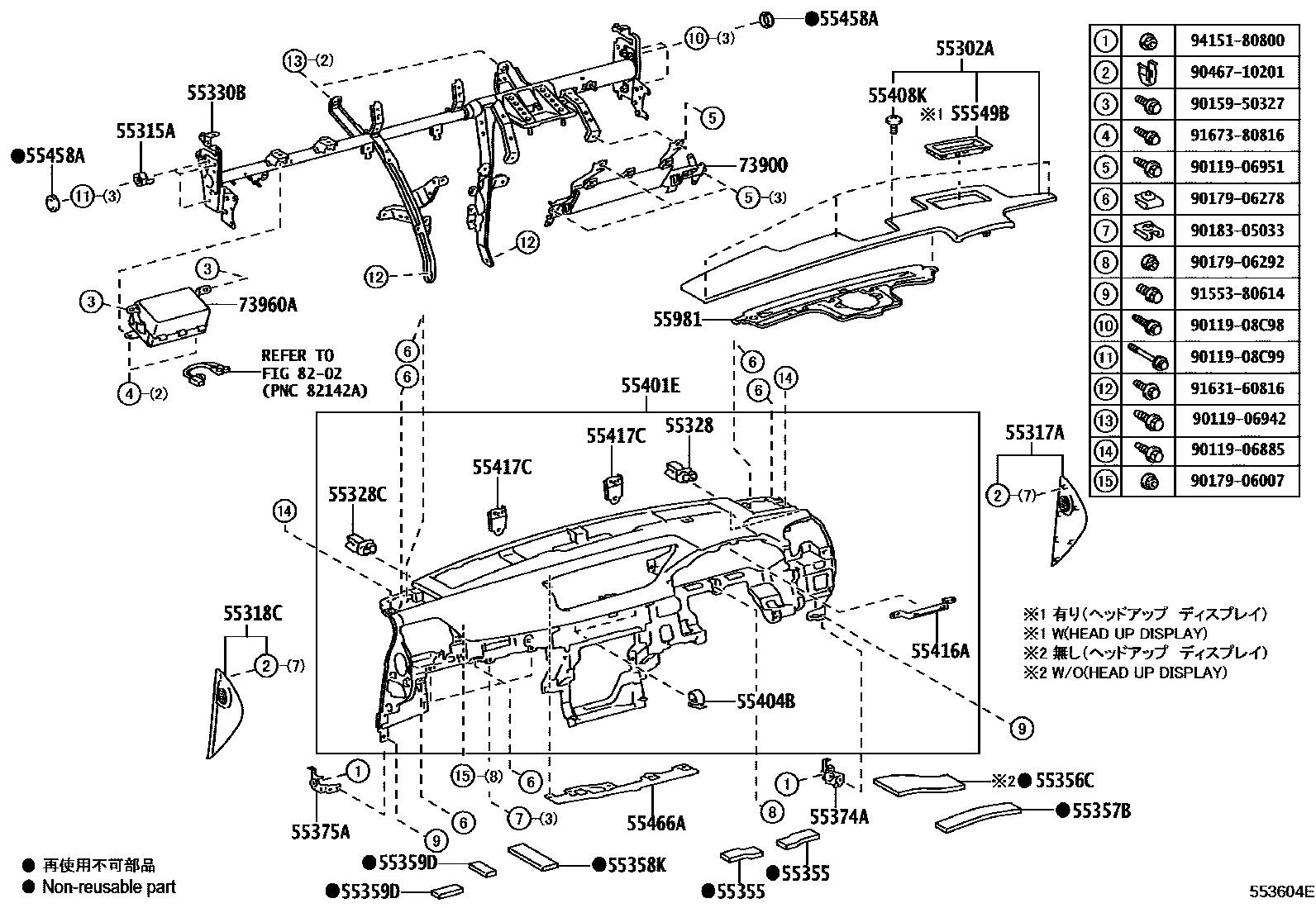

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-30180-C4supersedes 55302-30190-C4iURL10201510-202007

main55302-30180-C5supersedes 55302-30190-C5iURL10201510-202007

main55302-30180-J1supersedes 55302-30190-J1iURL10201805-201909

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iURL10201510-202007

55317APANEL, INSTRUMENT SIDE, RH

main55317-30130-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30130-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iURL10201510-202007

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-22110iURL10201510-202007

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30480iURL10201510-201609

main55330-30490iURL10201609-202007

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30130×2iURL10201510-202007

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-30060iURL10201510-202007

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-30100iURL10201510-202007

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-30160iURL10201510-202007

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-30080×2iURL10201510-202007

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-30290iURL10201510-202007

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-30190iURL10201510-202007

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30850-C0supersedes 55401-30890-C0iURL10201510-202007

55404BCLIP, SAFETY PAD SET

main90084-46027×2iURL10201510-202007

55408KSCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END

main90958-01001×4iURL10201510-202007

55416ARETAINER, METER HOOD, NO.1

main55416-30200iURL10201510-202007

55417CBRACKET, INSTRUMENT PAD, NO.3

main55417-30090×2iURL10201510-202007

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×6iURL10201510-202007

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-30080iURL10201510-202007

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55548-30220-C0iURL10201510-202007

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30160-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-30060-C0iURL10201510-202007

BLACK,TRIM0#,2#,3#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30100iURL10201510-202007

8202

9011906885

main90119-06885

9011906942

main90119-06942

9011906951

main90119-06951

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9015950327

main90159-50327

9017906007

main90179-06007

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9046710201

main90467-10201

9155380614

main91553-80614

9163160816

main91631-60816

9167380816

main91673-80816

9415180800

main94151-80800

41 parts on this diagram · 4 diagrams in section
