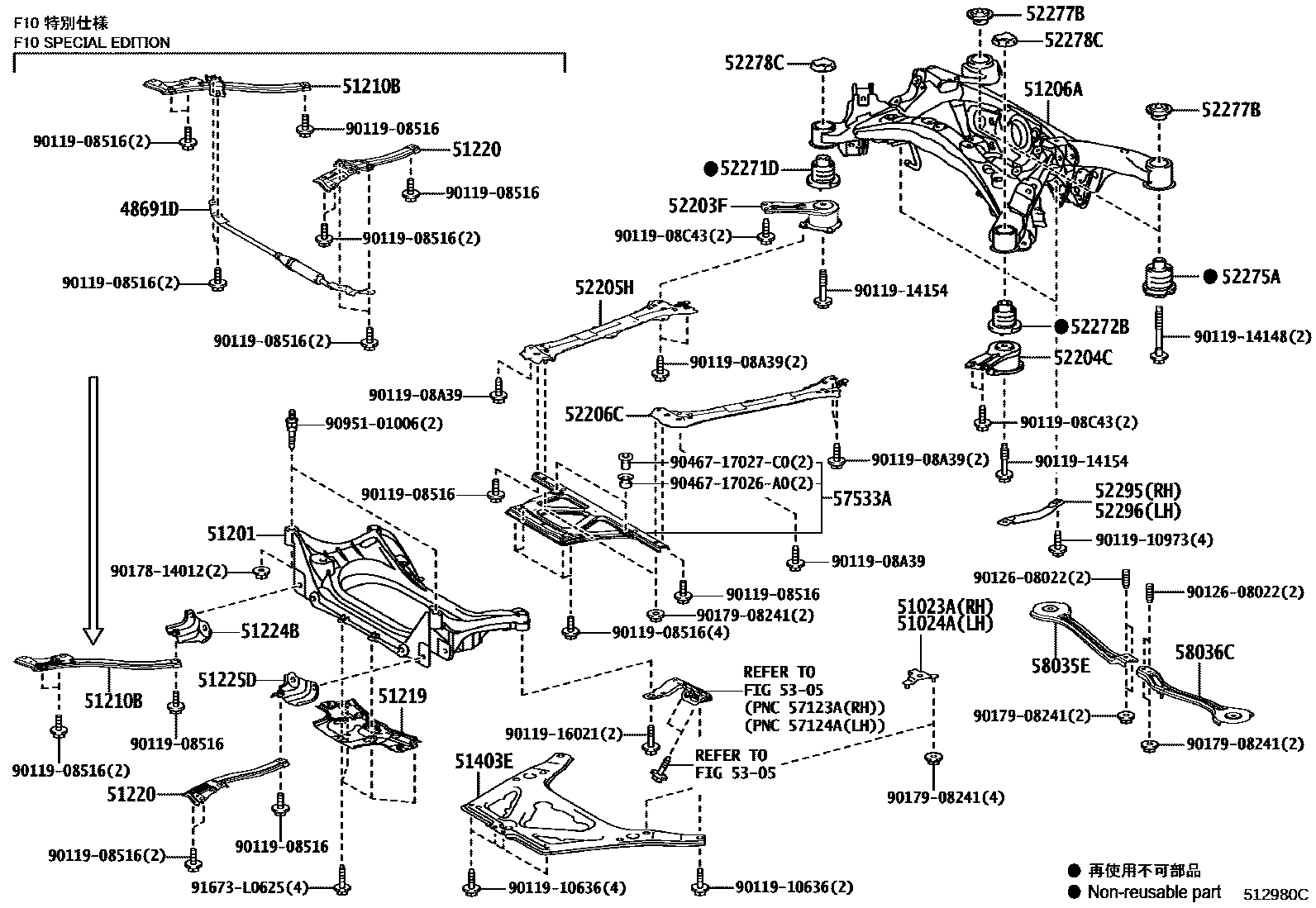

SUSPENSION CROSSMEMBER & UNDER COVER
48691DDAMPER, SUSPENSION TOWER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51210BCROSSMEMBER ASSY, FRAME, NO.1
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51220CROSSMEMBER ASSY, FRAME, NO.2
51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH
51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH
52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH
52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
5305
57533ABRACE, FRONT FLOOR, CENTER
58035EBRACE SUB-ASSY, REAR FLOOR PANEL, RH
58036CBRACE SUB-ASSY, REAR FLOOR PANEL, LH
9011908516
main90119-08516
9011908A39
main90119-08A39
9011908C43
main90119-08C43
9011910636
main90119-10636
9011910973
main90119-10973
9011914148
main90119-14148
9011914154
main90119-14154
9011916021
main90119-16021
9012608022
main90126-08022
9017814012
main90178-14012
9017908241
main90179-08241
9046717026A0
main90467-17026A0
9046717027C0
main90467-17027C0
9095101006
main90951-01006
91673L0625
main91673-L0625
41 parts on this diagram · 2 diagrams in section
