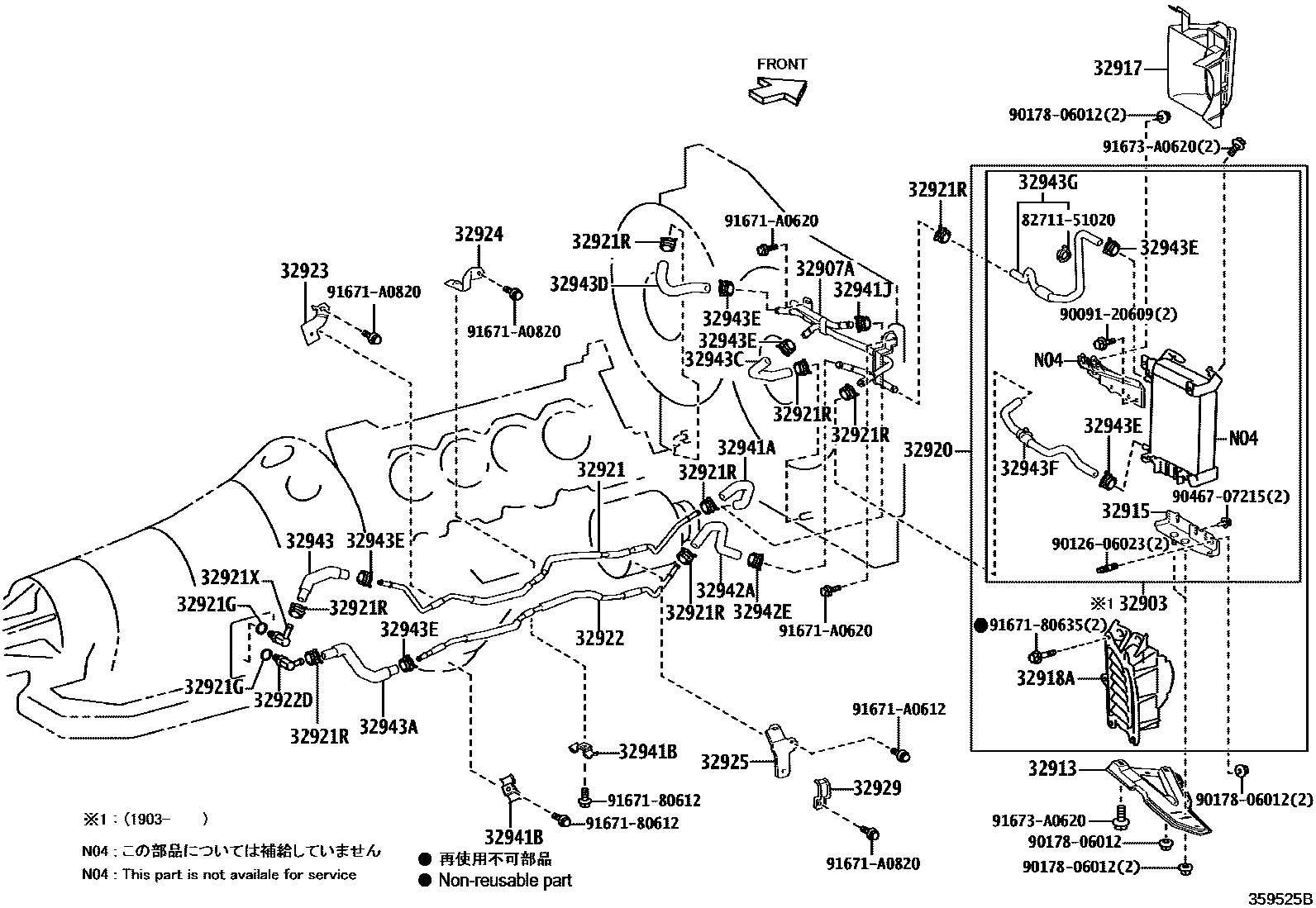

OIL COOLER & TUBE (ATM)

32903BRACKET SUB-ASSY, OIL COOLER

main32903-24010iURL10201903-202007

32907ATUBE, OIL COOLER

main32907-24010iURL10201510-202007

32913BRACKET, OIL COOLER

main32913-24010iURL10201510-202007

32915BRACKET, TRANSMISSION OIL COOLER, LWR

main32915-24010iURL10201510-202007

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-24010iURL10201510-202007

32918ADUCT, TRANSMISSION OIL COOLER AIR OUTLET

main32918-30010iURL10201510-202007

32920COOLER ASSY, OIL W/HOSE

main32920-30120iURL10201510-202007

32921TUBE, OIL COOLER INLET, NO.1

main32921-24230iURL10201510-202007

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iURL10201510-202007

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×8iURL10201510-202007

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-14033iURL10201510-201805

main90407-14034iURL10201806-202007

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-24240iURL10201510-202007

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-14033iURL10201510-201805

main90407-14034iURL10201806-202007

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30240iURL10201510-202007

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-30310iURL10201510-202007

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-24010iURL10201510-202007

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24060iURL10201510-202007

32941AHOSE, OIL COOLER INLET, NO.2

main32941-24010iURL10201510-202007

32941BCLAMP(FOR OIL COOLER TUBE)

main90462-12074×2iURL10201510-202007

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iURL10201510-202007

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-24050iURL10201510-202007

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iURL10201510-202007

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-30150iURL10201510-202007

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-30160iURL10201510-202007

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-24010iURL10201510-202007

32943DHOSE, TRANSMISSION OIL COOLER, NO.4

main32943-60510iURL10201510-202007

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iURL10201510-202007

32943FHOSE, TRANSMISSION OIL COOLER, NO.5

main32943-24020iURL10201510-202007

32943GHOSE, TRANSMISSION OIL COOLER, NO.6

main32943-24030iURL10201510-202007

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9009120609

main90091-20609

9012606023

main90126-06023

9017806012

main90178-06012

9046707215

main90467-07215

9167180612

main91671-80612

9167180635

main91671-80635

91671A0612

main91671-A0612

91671A0620

main91671-A0620

91671A0820

main91671-A0820

91673A0620

main91673-A0620

40 parts on this diagram · 1 diagram in section
