RADIATOR & WATER OUTLET

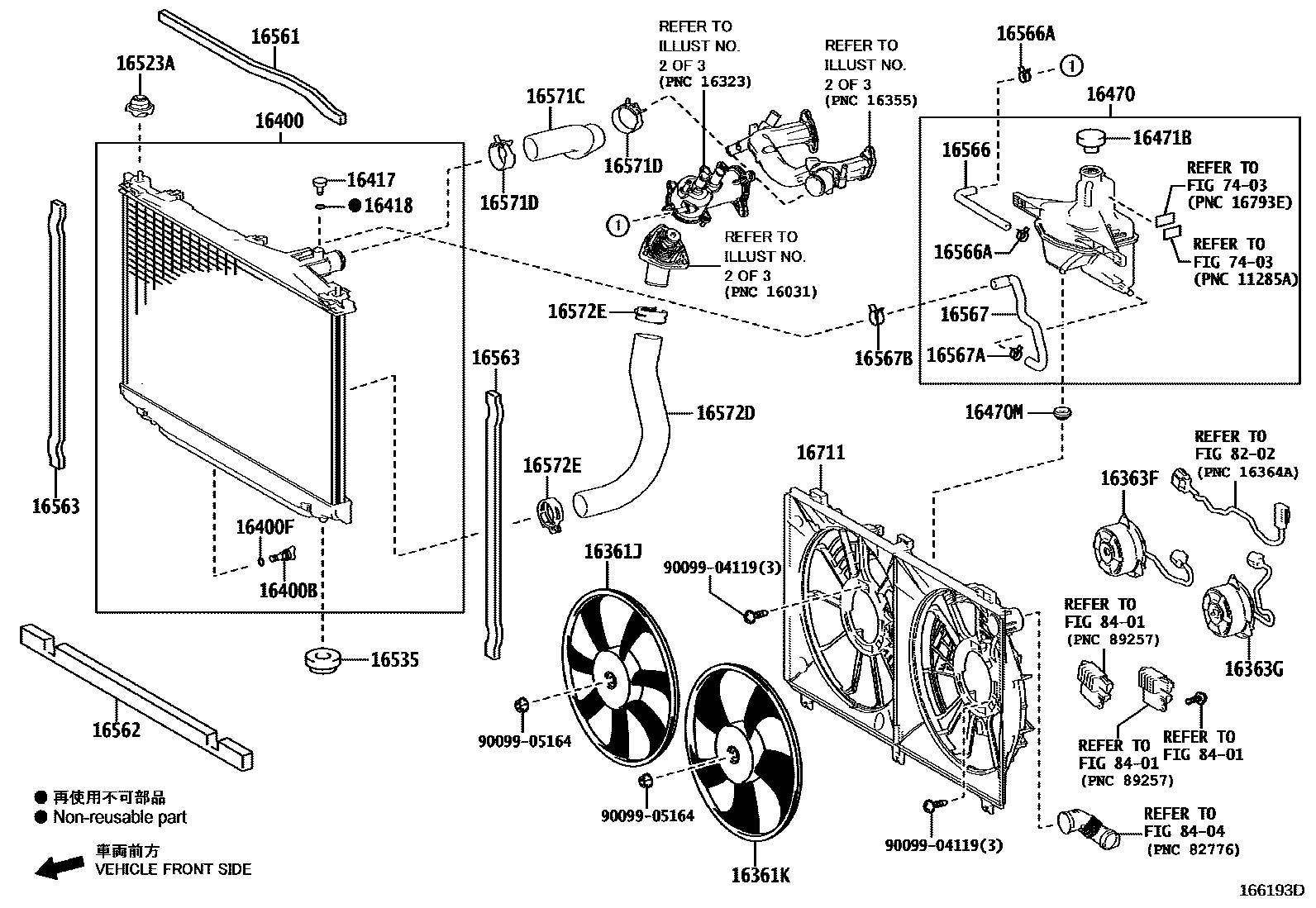

Parts diagram

16361JFAN, RH

main16361-38120i201510-202007

16361KFAN, LH

main16361-38110i201510-202007

16363FMOTOR, COOLING FAN, RH

main16363-38160i201510-202007

16363GMOTOR, COOLING FAN, LH

main16363-38160i201510-202007

16400RADIATOR ASSY

main16400-38280i201510-202007

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i201510-202007

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i201510-202007

16417COCK

main16417-28530i201510-202007

16418PACKING

main16418-20291i201510-202007

16470TANK ASSY, RADIATOR RESERVE

main16470-38100i201510-201602

main16470-38101i201603-202007

16470MGROMMET

main90480-18010i201510-202007

16471BCAP, RESERVE TANK

main16475-28140i201603-202007

main16475-37011i201510-201602

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i201510-202007

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i201510-201603

main90480-40022×2i201604-202007

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-38010i201510-202007

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-38010i201510-202007

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-31050×2i201510-202007

16566HOSE, RESERVE TANK OUTLET

main16566-38060i201510-202007

16566ACLIP(FOR RESERVE TANK OUTLET)

main96137-41501×2i201510-202007

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38070i201510-202007

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main96137-41701i201510-202007

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main96136-42101i201510-202007

16571CHOSE, RADIATOR, NO.1

main16571-38071i201510-202007

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i201510-202007

16572DHOSE, RADIATOR, NO.2

main16572-38160i201510-202007

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2i201510-202007

16711SHROUD, FAN

main16711-36240i201510-202007

7403

8202

8401

8404

9009904119

main90099-04119

9009905164

main90099-05164

33 parts on this diagram · 3 diagrams in section
