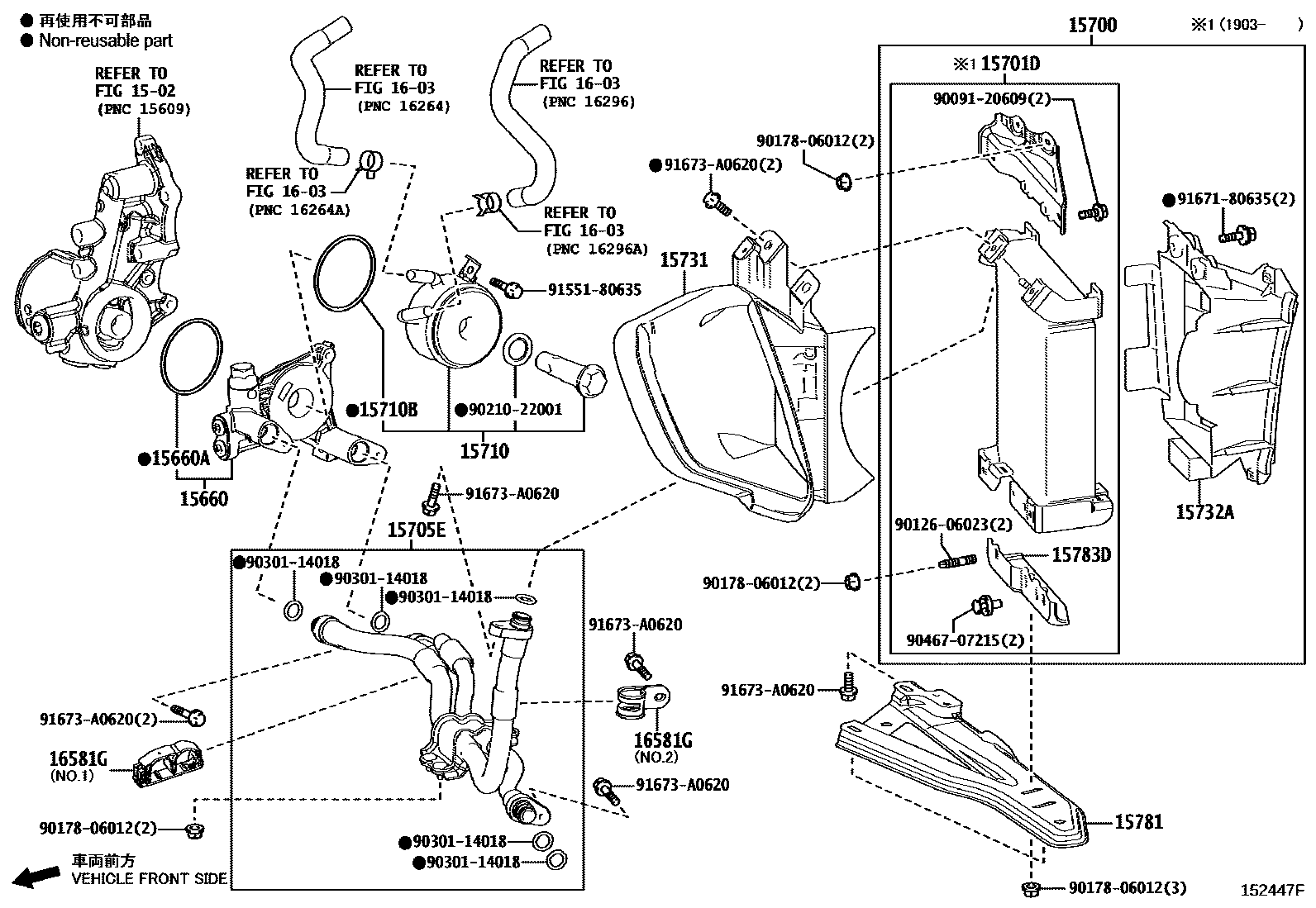

ENGINE OIL COOLER
1502
15660HOUSING ASSY, OIL THERMOSTAT
15660ARING, O(FOR OIL THERMOSTAT HOUSING)
15700COOLER ASSY, OIL W/BRACKET
15701DBRACKET SUB-ASSY, OIL COOLER
15705EHOSE SUB-ASSY, OIL COOLER
15710COOLER ASSY, OIL
15710BRING, O(FOR OIL COOLER)
15731DUCT, ENGINE OIL COOLER AIR INLET
15732ADUCT, ENGINE OIL COOLER AIR OUTLET
15781BRACKET, OIL COOLER, NO.1
15783DBRACKET, ENGINE OIL COOLER, LWR
1603
16581GCLAMP, HOSE(FOR OIL COOLER HOSE)
9009120609
main90091-20609
9012606023
main90126-06023
9017806012
main90178-06012
9021022001
main90210-22001
9030114018
main90301-14018
9046707215
main90467-07215
9155180635
main91551-80635
9167180635
main91671-80635
91673A0620
main91673-A0620
23 parts on this diagram · 1 diagram in section
