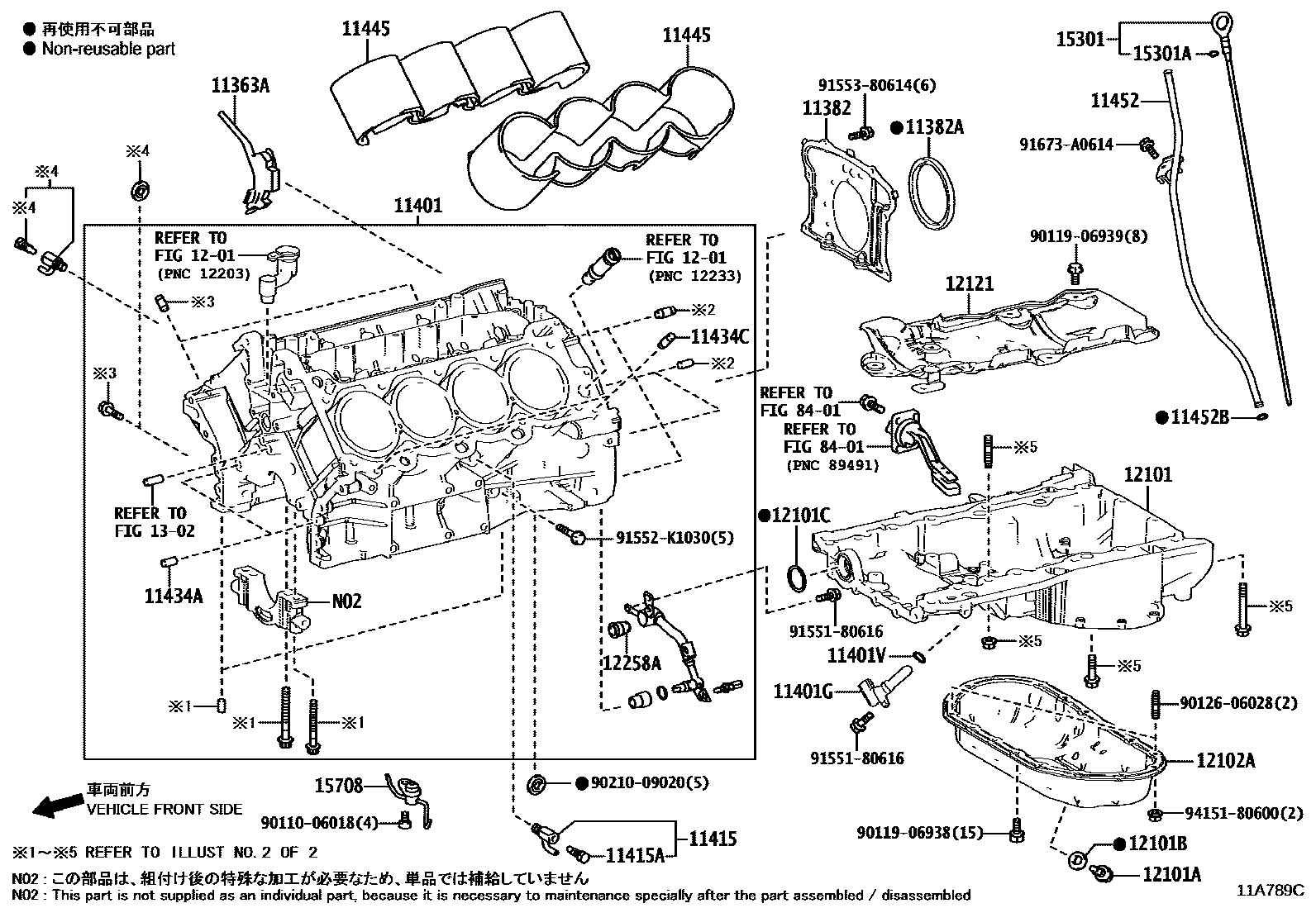

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
11382RETAINER, ENGINE OIL SEAL, REAR
11382ASEAL, OIL(FOR OIL SEAL RETAINER)
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
1201
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12258AGASKET, OIL RETURN PIPE
1302
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
8401
9011006018
main90110-06018
9011906938
main90119-06938
9011906939
main90119-06939
9012606028
main90126-06028
9021009020
main90210-09020
9155180616
main91551-80616
91552K1030
main91552-K1030
9155380614
main91553-80614
91673A0614
main91673-A0614
9415180600
main94151-80600
36 parts on this diagram · 2 diagrams in section
