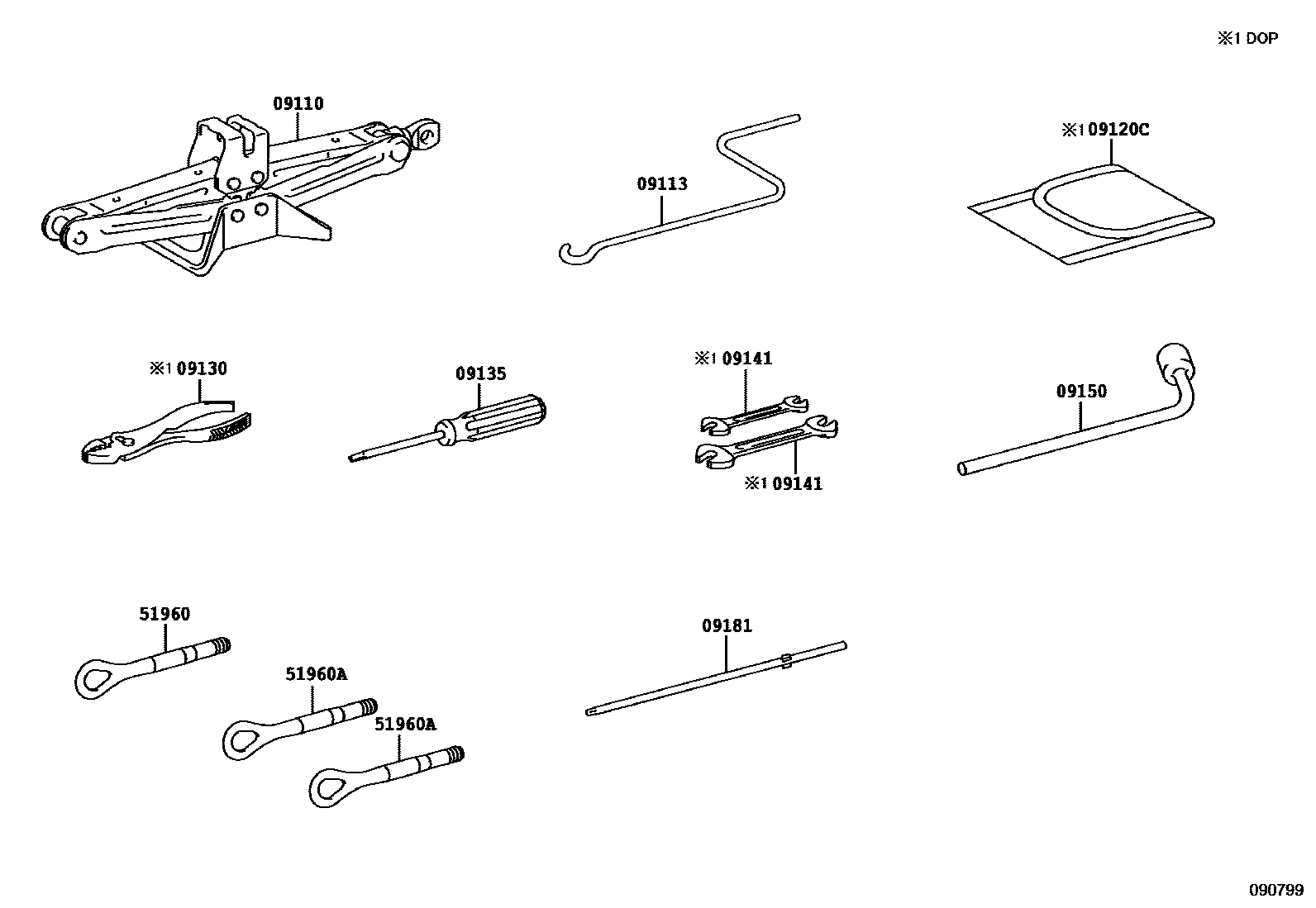

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-30160iURL10201510-201602

sub09111-30181

main09111-30180iURL10201603-202007

sub09111-30181

09113HANDLE, JACK

main09113-30050iURL10201510-202007

09120CBAG,TOOL, NO.2

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060iURL10201510-202007

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-76020iURL10201510-202007

09181ROD, PARKING BRAKE RELEASE

main09181-30010iURL10201510-202007

51960HOOK ASSY, FRONT

main51961-53010iURL10201510-202007

51960AHOOK ASSY, REAR

main51961-53010iURL10201510-202007

10 parts on this diagram · 2 diagrams in section
