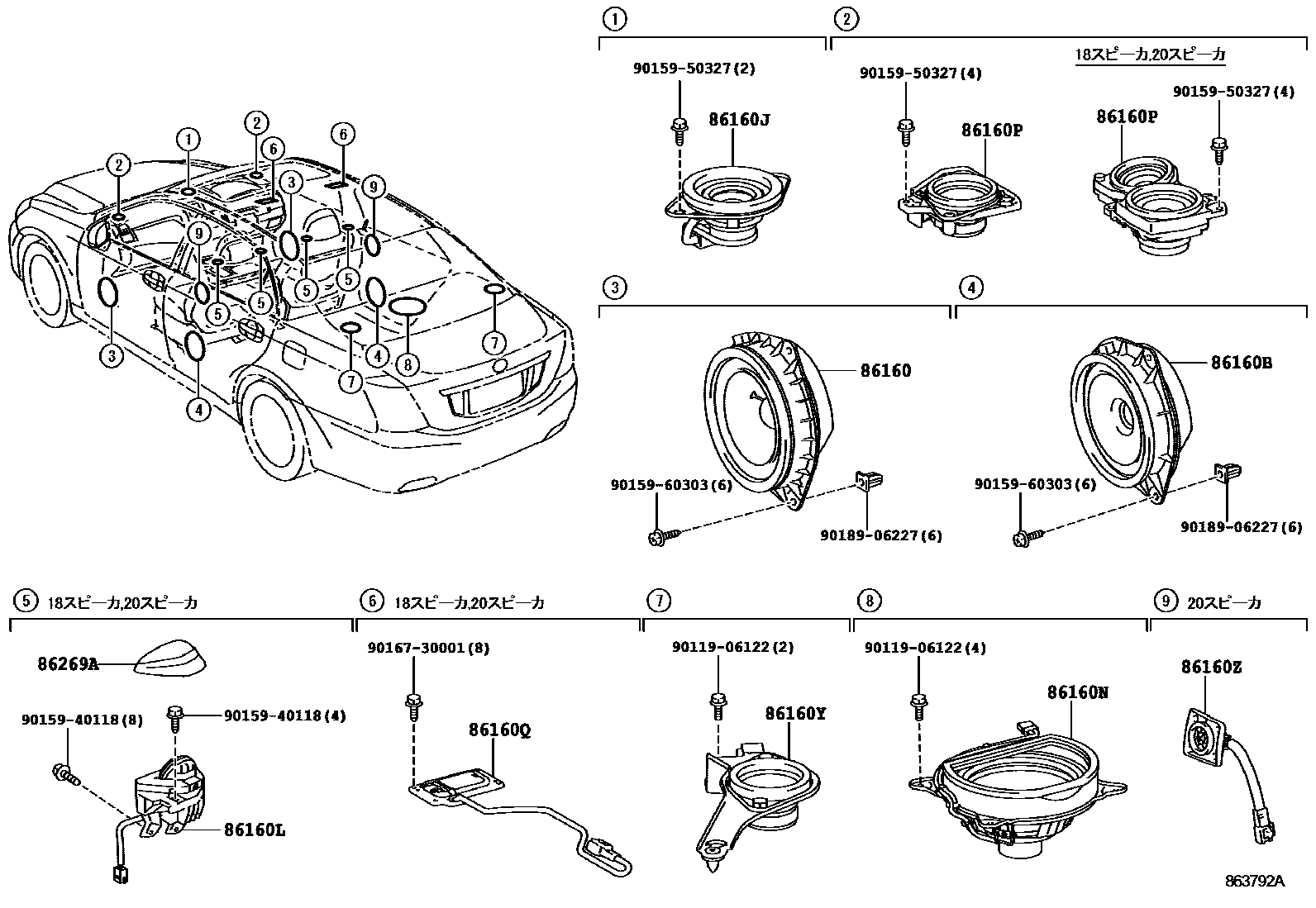

SPEAKER

0001 1�����-��(�����) 0002 1�����-��(�����)

86160SPEAKER ASSY, FRONT NO.1

main86160-30B40×2supersedes 86160-30A20iURS206..G200903-201307

86160BSPEAKER ASSY, REAR

main86160-30D80×2iURS206..G200903-201307

86160JSPEAKER ASSY, FRONT NO.3

main86160-30C80supersedes 86160-30C80iURS206..G200903-201307

86160LSPEAKER ASSY, FRONT NO.4

86160NSPEAKER ASSY, STEREO COMPONENT, REAR

main86160-30B90supersedes 86160-30B80iURS206..G200903-201307

86160PSPEAKER ASSY, FRONT NO.2

main86160-30B50iURS206..G200903-201307

main86160-30B60supersedes 86160-30B30iURS206..G200903-201307

86160QSPEAKER ASSY, ROOF

main86160-30C50iURS206..G200903-201307

main86160-30C90supersedes 86160-30C90iURS206..G200903-201307

86160YSPEAKER ASSY, REAR NO.2

main86160-30D40iURS206..G200903-201307

main86160-30D50supersedes 86160-30D50iURS206..G200903-201307

86160ZSPEAKER ASSY, REAR NO.3

main86160-30D00iURS206..G200903-201307

main86160-30D10iURS206..G200903-201307

86269AGRILLE, SPEAKER

main86269-30011-A0×2iURS206,UZS207..C,G,IFOUR201109-201307

main86269-30011-C0×2iURS206,UZS207..C,G,IFOUR201109-201307

main86269-30021-A0×2supersedes 86269-30020-A0iURS206,UZS207..C,G,IFOUR201109-201307

main86269-30021-C0×2supersedes 86269-30020-C0iURS206,UZS207..C,G,IFOUR201109-201307

9011906122

main90119-06122

9015940118

main90159-40118

9015950327

main90159-50327

9015960303

main90159-60303

9016730001

main90167-30001

9018906227

main90189-06227

16 parts on this diagram · 2 diagrams in section
