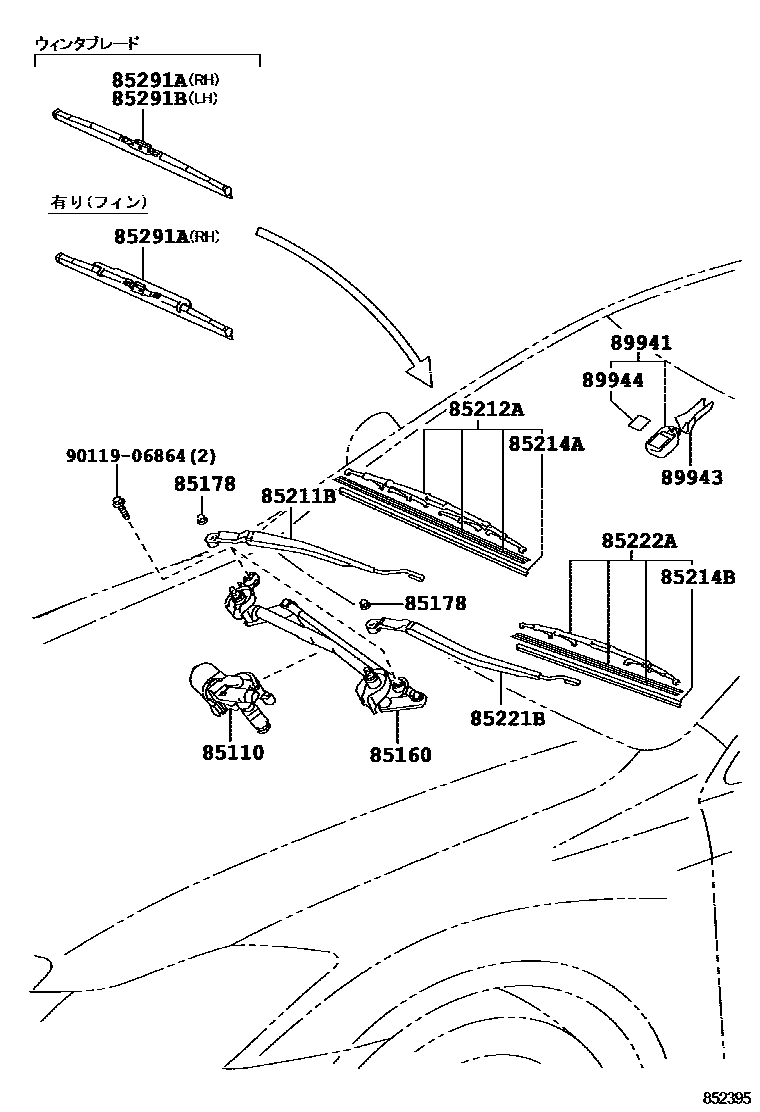

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22630iURS206201010

main85110-30570iURS206200903-201010

sub85110-30580

main85110-30580iUZS207200903

85160LINK ASSY, WINDSHIELD WIPER

main85150-30660iURS206200903-201010

main85150-30670iUZS207200903

main85150-30710iURS206201010

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iURS206,UZS207200903

85211BARM, FRONT WIPER, RH

main85211-30740iURS206200903

main85211-30750iUZS207200903

85212ABLADE, FR WIPER, RH

main85212-33240iURS206,UZS207200903

85214ARUBBER, WIPER, RH

main85214-30380iURS206,UZS207200903

85214BRUBBER, WIPER, LH

main85214-33180iURS206,UZS207200903-201307

85221BARM, FRONT WIPER, LH

main85221-30640iURS206200903

main85221-30650iUZS207200903

85222ABLADE, FR WIPER, LH

main85222-30590iURS206,UZS207200903

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-30060iURS206,UZS207200903

main85291-30060iURS206200903

main85291-50060iURS206200903

main85291-50060iURS206200903

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-22080iURS206200903

main85291-33050iURS206200903

main85291-33050iURS206200903

89941SENSOR, RAIN

main89941-30020iURS206,UZS207200903

89943COVER, RAIN SENSOR

main89943-22030iURS206,UZS207200903

89944TAPE, RAIN SENSOR

main89944-42010iURS206,UZS207200903

9011906864

main90119-06864

15 parts on this diagram · 1 diagram in section
