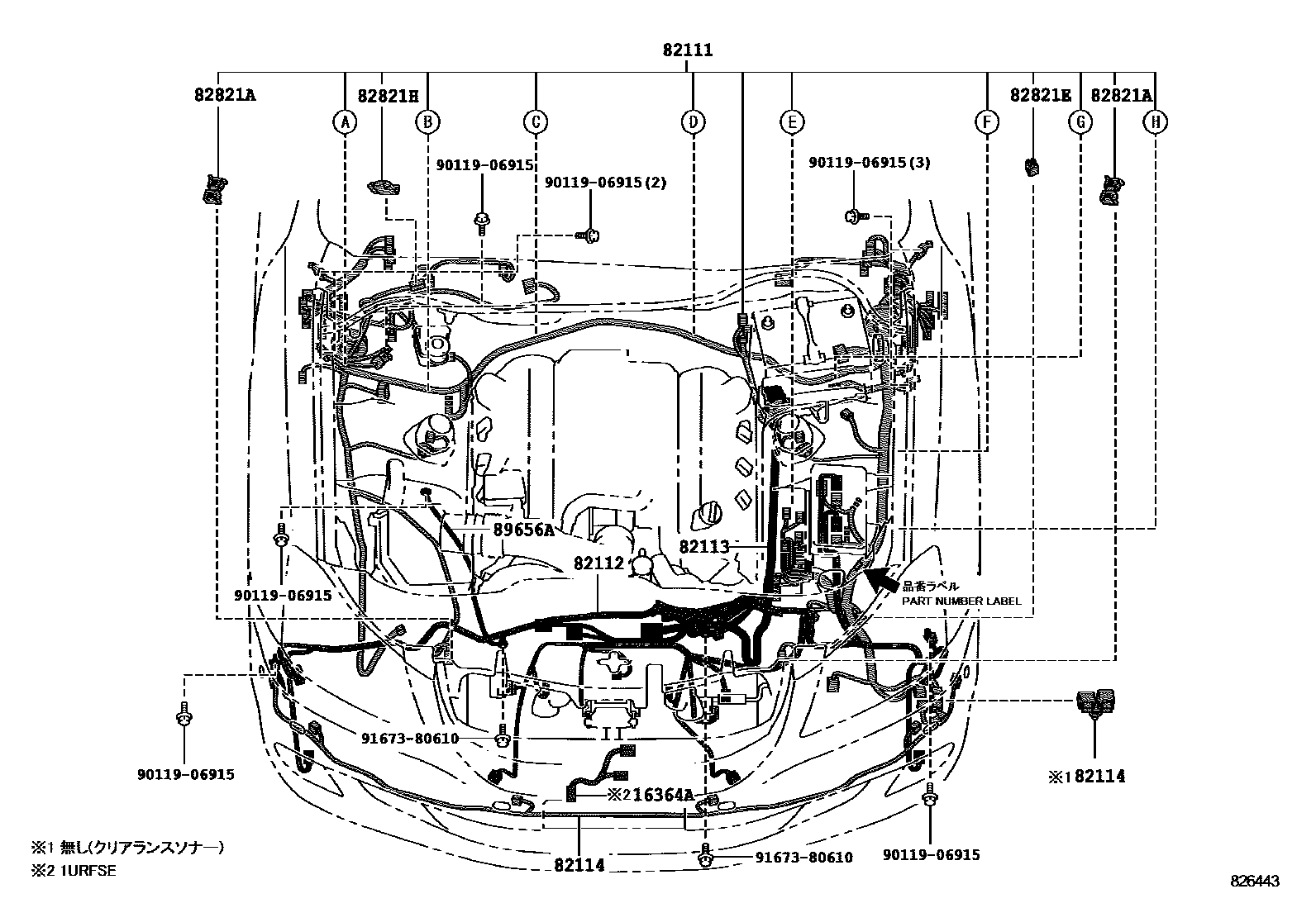

WIRING & CLAMP

0001 1����� ��� 1/2 0002 1����� ��� 2/2 0003 1����� 0004 1����� 0005 1�������� ���� 0006 1��� 0007 1��� & ��� 0008 1���(����) 0009 1���(��) 0010 1����� & ������ 0011 1����� & ������ 0012 1����� ����� 0013 1���� 1/2 0014 1���� 2/2

16364AWIRE, COOLING FAN

main16364-38010i1URFSE..URS206200903

82111WIRE, ENGINE ROOM MAIN

main82111-30Y10supersedes 82111-30Y10iURS206..A,G200903-201006

main82111-30Y11iURS206201007-201205

main82111-30Y12iURS206201205

main82111-30Y40iUZS207200903-201006

main82111-30Y41iUZS207201007-201205

main82111-30Y42iUZS207201205

82112WIRE, ENGINE ROOM, NO.2

main82112-30B30supersedes 82112-30B10iURS206..G200903

main82112-30B60supersedes 82112-30B50iUZS207200903

82113WIRE, ENGINE ROOM, NO.3

main82113-30460iUZS207200903

main82113-30700iURS206200903

82114WIRE, ENGINE ROOM, NO.4

main82114-30140iURS206,UZS207200903-201307

main82114-30150iUZS207200903-201307

main82114-30160iURS206200903-201307

82821ACOVER, CONNECTOR

main82821-30650×2iURS206,UZS207200903

82821ECOVER, CONNECTOR

main82821-35040iURS206,UZS207200903

82821HCOVER, CONNECTOR

main82821-22120supersedes 82821-22120iURS206,UZS207..A,G,IFOUR200903

89656AWIRE, POWER STEERING EARTH

main89656-30020iUZS207200903

main89656-53020iURS206200903

9011906915

main90119-06915

9167380610

main91673-80610

11 parts on this diagram · 14 diagrams in section
