INTERIOR LAMP
7101
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
main81090-30020
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81230BBULB(FOR COURTESY LAMP)
81250CBULB, SPOT LAMP
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
SHELL,TRIM0#
GRAY,TRIM2#
81260CBULB(FOR MAP LAMP)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
81360TLAMP ASSY, SPOT
SHELL,TRIM0#
GRAY,TRIM2#
GRAY,TRIM2#,4#
81936CBULB ASSY
8202
8603
7423750010PANEL, REAR ARMREST BASE, LOWER
main74237-50010
9015940206
main90159-40206
9018904102
main90189-04102
9046710167
main90467-10167

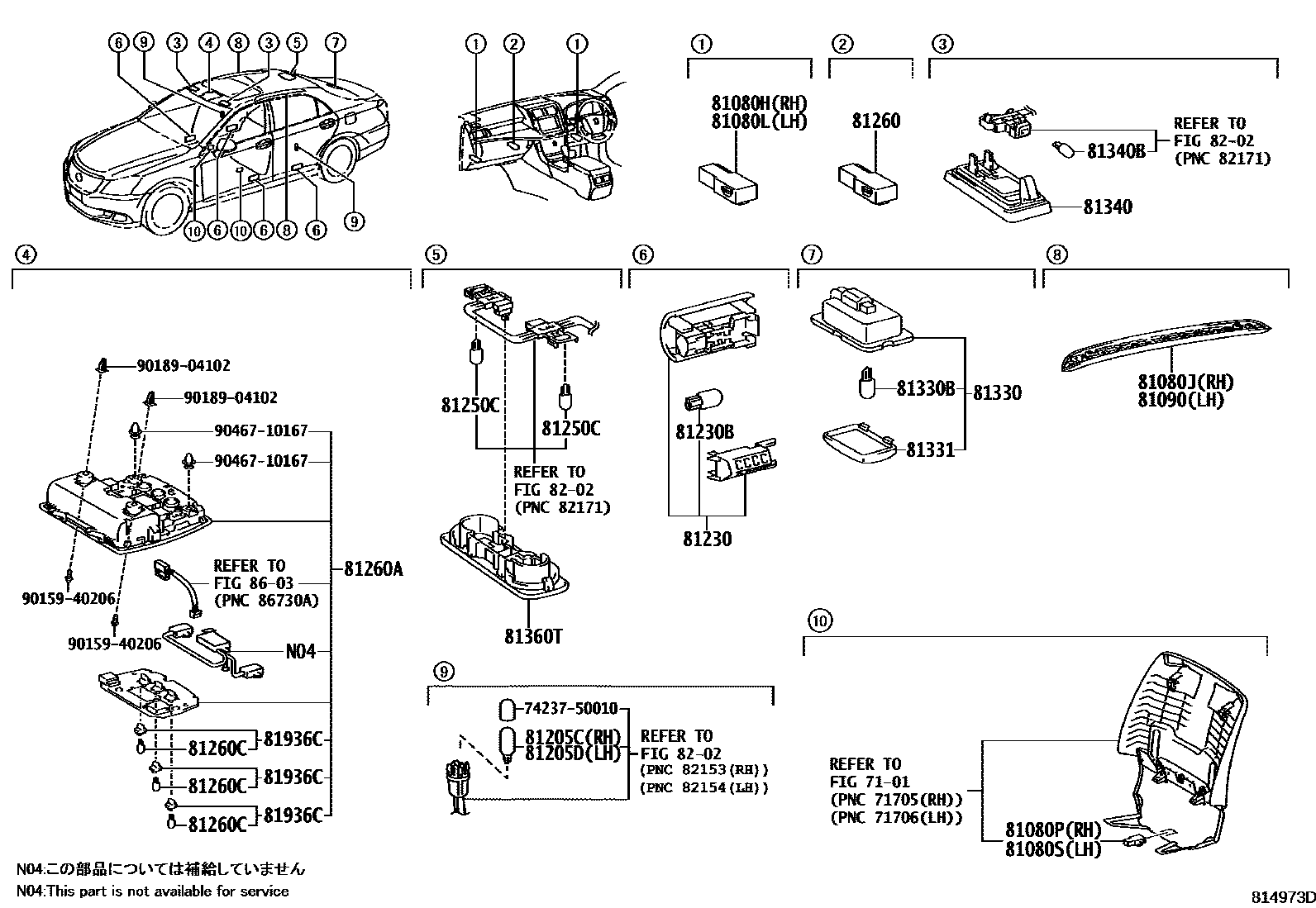

28 parts on this diagram · 1 diagram in section
