INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30101iURS206,UZS207¥44,300200903

62170BBOLT, W/WASHER

main90119-06869iURS206,UZS207¥60200903

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30101iURS206,UZS207¥44,300200903

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010iURS206,UZS207¥80200903

62211GARNISH, FRONT PILLAR, RH

main62211-30520-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62211-30520-B0iURS206..G200903-201307

BLACK,TRIM2#

main62211-30520-B0iURS206..G200903-201307

BLACK,TRIM2#,4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iURS206,UZS207¥90200903

62212GARNISH, FRONT PILLAR, LH

main62212-30530-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62212-30530-B0iURS206..G200903-201307

BLACK,TRIM2#

main62212-30530-B0iURS206..G200903-201307

BLACK,TRIM2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33031iURS206,UZS207¥210200903

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30270iURS206,UZS207¥5,800200903-201201

sub62313-30271¥5,800

main62313-30271iURS206,UZS207¥5,800201202

sub62313-30272¥5,800

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30190iURS206,UZS207¥5,800200903-201201

sub62314-30191¥5,800

main62314-30191iURS206,UZS207¥5,800201202

sub62314-30192¥5,800

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-30110-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62315-30110-C0iURS206..G200903-201307

BLACK,TRIM2#

main62315-30110-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-30100-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62316-30100-C0iURS206..G200903-201307

BLACK,TRIM2#

main62316-30100-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30250iURS206,UZS207¥5,800200903-201111

sub62333-30251¥5,800

main62333-30251iURS206,UZS207¥5,800201112

62334ATRIM, REAR DOOR OPENING, LH

main62334-30190iURS206,UZS207¥5,800200903-201111

sub62334-30191¥5,800

main62334-30191iURS206,UZS207¥5,800201112

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30460-A0iURS206,UZS207200903-201206

SHELL,TRIM0#

sub62411-30H02¥10,900

main62411-30460-B0iURS206,UZS207..A,C,IFOUR200903-201206

GRAY,TRIM2#

sub62411-30H02¥10,900

main62411-30460-B0iURS206..G200903-201206

GRAY,TRIM2#,4#

sub62411-30H02¥10,900

main62411-30461-A0iURS206,UZS207201206-201307

SHELL,TRIM0#

main62411-30461-B0iURS206,UZS207..C,G,IFOUR201206-201307

GRAY,TRIM2#

main62411-30461-B0iURS206,UZS207..C,G,IFOUR201206-201307

GRAY,TRIM2#,4#

main62411-30H02-A1iURS206,UZS207200903-201206

main62411-30H02-B2iURS206,UZS207..A,C,IFOUR200903-201206

main62411-30H02-B2iURS206,UZS207..A,C,IFOUR200903-201206

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30460-A0iURS206,UZS207200903-201206

SHELL,TRIM0#

sub62412-30H02¥10,900

main62412-30460-B0iURS206..G200903-201206

GRAY,TRIM2#

sub62412-30H02¥10,900

main62412-30460-B0iURS206..G200903-201206

GRAY,TRIM2#,4#

sub62412-30H02¥10,900

main62412-30461-A0iURS206,UZS207201206-201307

SHELL,TRIM0#

main62412-30461-B0iURS206,UZS207..C,G,IFOUR201206-201307

GRAY,TRIM2#

main62412-30461-B0iURS206,UZS207..C,G,IFOUR201206-201307

GRAY,TRIM2#,4#

main62412-30H02-A1iURS206,UZS207200903-201206

main62412-30H02-B2iURS206,UZS207..A,C,IFOUR200903-201206

main62412-30H02-B2iURS206,UZS207..A,C,IFOUR200903-201206

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30230-A0iURS206,UZS207200903-201203

SHELL,TRIM0#

sub62413-30231¥14,100

main62413-30230-C0iURS206..G200903-201203

BLACK,TRIM2#

sub62413-30231¥14,100

main62413-30230-C0iURS206..G200903-201203

BLACK,TRIM2#,4#

sub62413-30231¥14,100

main62413-30231-A0iURS206,UZS207201204-201307

SHELL,TRIM0#

main62413-30231-C0iURS206,UZS207..C,G,IFOUR201204-201307

BLACK,TRIM2#

main62413-30231-C0iURS206..A201204-201307

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iURS206,UZS207¥90200903

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30160-A0iURS206,UZS207200903-201203

SHELL,TRIM0#

sub62414-30161¥14,100

main62414-30160-C0iURS206..G200903-201203

BLACK,TRIM2#

sub62414-30161¥14,100

main62414-30160-C0iURS206..G200903-201203

BLACK,TRIM2#,4#

sub62414-30161¥14,100

main62414-30161-A0iURS206,UZS207201204-201307

SHELL,TRIM0#

main62414-30161-C0iURS206..A201204-201307

BLACK,TRIM2#,4#

main62414-30161-C0iURS206..A201204-201307

BLACK,TRIM2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-09212iURS206,UZS207¥100200903

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30530-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62471-30530-B0iURS206..G200903-201307

GRAY,TRIM2#

main62471-30530-B0iURS206..G200903-201307

GRAY,TRIM2#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iURS206,UZS207¥80200903

62471MCLIP

main90467-10167iURS206,UZS207¥90200903

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30500-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62472-30500-B0iURS206..G200903-201307

GRAY,TRIM2#

main62472-30500-B0iURS206..G200903-201307

GRAY,TRIM2#,4#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30320-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62551-30320-C0iURS206..G200903-201307

BLACK,TRIM2#

main62551-30320-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30280-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main62552-30280-C0iURS206..G200903-201307

BLACK,TRIM2#

main62552-30280-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iURS206,UZS207¥190200903

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iURS206,UZS207¥190200903

62619APLATE, SIDE TRIM SET

main62619-30030iURS206,UZS207¥90200903

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30230iURS206,UZS207¥6,200200903

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30240iURS206,UZS207¥6,200200903

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30280-A0iURS206,UZS207200903-201008

SHELL,TRIM0#

sub67913-30281¥5,100

main67913-30280-C0iURS206..G200903-201008

BLACK,TRIM2#

sub67913-30281¥5,100

main67913-30280-C0iURS206..G200903-201008

BLACK,TRIM2#,4#

sub67913-30281¥5,100

main67913-30281-A0iURS206,UZS207201009-201307

SHELL,TRIM0#

main67913-30281-C0iURS206..A201009-201307

BLACK,TRIM2#,4#

main67913-30281-C0iURS206..A201009-201307

BLACK,TRIM2#

67913ACLIP(FOR SCUFF PLATE)

main90467-09212iURS206,UZS207¥100200903

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30280-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main67914-30280-C0iURS206..G200903-201307

BLACK,TRIM2#

main67914-30280-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30180iURS206,UZS207¥4,830200903

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30180iURS206,UZS207¥4,830200903

67917APLATE, REAR DOOR SCUFF, RH

main67917-30240-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main67917-30240-C0iURS206..G200903-201307

BLACK,TRIM2#

main67917-30240-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30220-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main67918-30220-C0iURS206..G200903-201307

BLACK,TRIM2#

main67918-30220-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-09212iURS206,UZS207¥100200903

7104

9016450045

main90164-50045¥110

9046709225

main90467-09225¥260

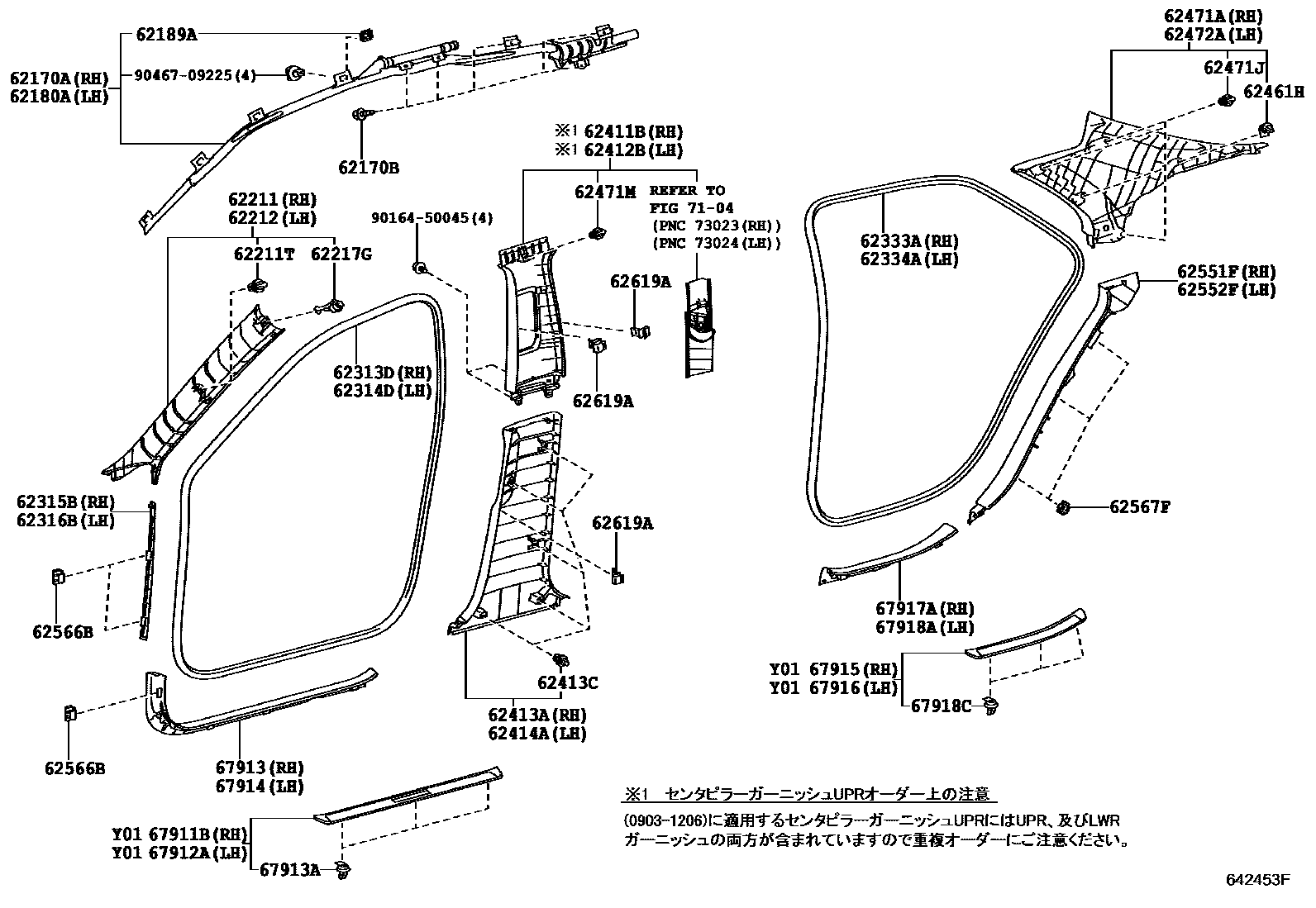

42 parts on this diagram · 1 diagram in section
