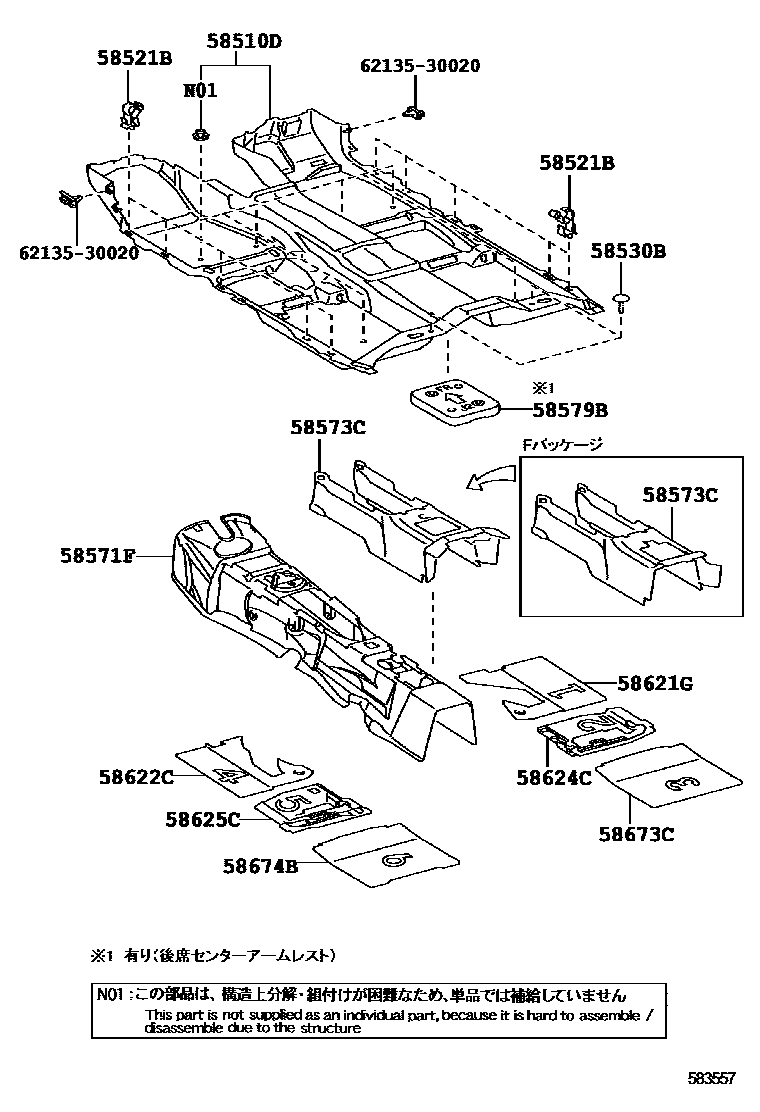

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-30B90-A0iURS206200903-201307

SHELL,TRIM0#

main58510-30B90-C0iURS206..G200903-201307

BLACK,TRIM2#

main58510-30B90-C0iURS206..G200903-201307

BLACK,TRIM2#,4#

main58510-30C10-A0iUZS207200903-201307

SHELL,TRIM0#

main58510-30C10-C0iUZS207200903-201307

BLACK,TRIM2#,4#

58521BHOOK, FLOOR CARPET

main58521-30140iURS206,UZS207200903

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8iURS206,UZS207200903-201307

LT.GRAY

sub90467-05164

58571FPAD, FRONT FLOOR, FRONT

main58571-30040iURS206200903

main58571-30140iUZS207200903

58573CPAD, FRONT FLOOR CENTER

main58573-30110iURS206200903-201304

sub58573-30111

main58573-30111iURS206201305

main58573-30130iUZS207200903-201304

sub58573-30131

main58573-30131iUZS207201305

58579BPAD, REAR FLOOR

main58579-30020iURS206200903

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iURS206,UZS207200903-201304

sub58621-30151

main58621-30151iURS206,UZS207201305

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iURS206200903-201304

sub58622-30161

main58622-30161iURS206201305

main58622-30170iUZS207200903-201304

sub58622-30171

main58622-30171iUZS207201305

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30130iURS206,UZS207200903-201304

sub58624-30131

main58624-30131iURS206,UZS207201305

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30080iURS206,UZS207200903-201304

sub58625-30081

main58625-30081iURS206,UZS207201305

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-30040iURS206,UZS207200903-201304

sub58673-30041

main58673-30041iURS206,UZS207201305

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30030iURS206,UZS207200903-201304

sub58674-30031

main58674-30031iURS206,UZS207201305

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

13 parts on this diagram · 2 diagrams in section
