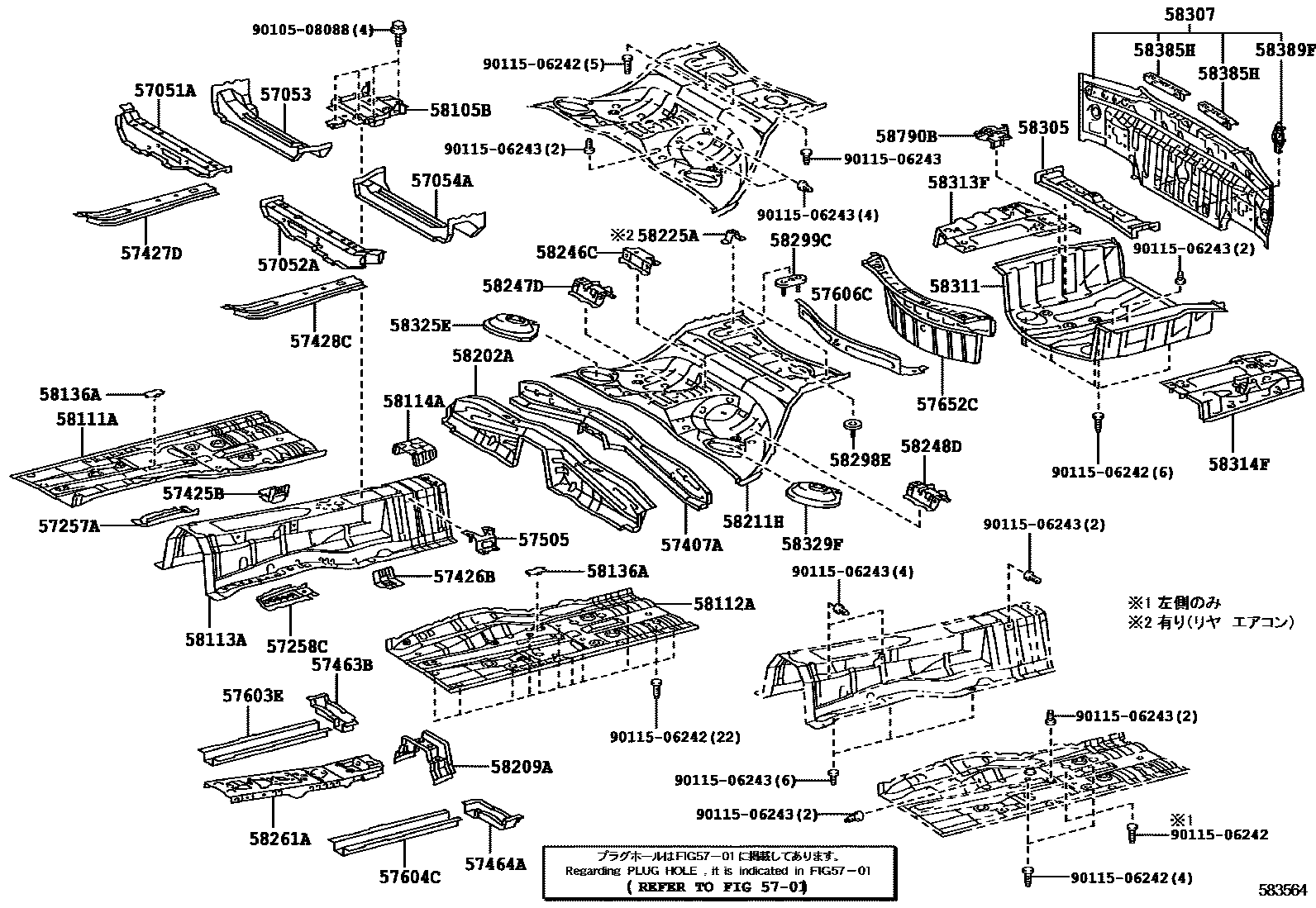

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30100iURS206,UZS207200903

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30100iURS206200903

main57052-30110iUZS207200903

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30071iURS206,UZS207200903

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30071iURS206,UZS207200903

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30041iURS206200903

main57257-30050iUZS207200903

sub57257-30070

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-30091iURS206200903

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-30151iURS206,UZS207200903-201307

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30020iURS206,UZS207200903

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30020iURS206,UZS207200903

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30030iURS206,UZS207200903

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30030iURS206,UZS207200903

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57508-30020iURS206,UZS207200903

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57509-30020iURS206,UZS207200903

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-30030iURS206,UZS207200903

57603EEXTENSION SUB-ASSY, REAR SIDE MEMBER, RH

main57603-30060iURS206,UZS207200903

57604CEXTENSION SUB-ASSY, REAR SIDE MEMBER, LH

main57603-30060iURS206,UZS207200903

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-30061iURS206,UZS207200903-201307

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30110iURS206,UZS207200903

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-30040iURS206,UZS207200903

58111APAN, FRONT FLOOR, RH

main58111-30480iURS206,UZS207200903

sub58111-30490

sub57257-30042

sub87212-30431

58112APANEL, FRONT FLOOR, LH

main58112-30180iURS206200903

main58112-30190iUZS207200903

sub58112-30191

58113APANEL, FRONT FLOOR, CENTER

main58102-30040iUZS207200903

main58113-30220iURS206200903

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-30060iURS206200903

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-51010×2iURS206,UZS207200903

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-30091iURS206,UZS207200903-201307

main58202-30120iURS206..G200903-201307

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050iURS206,UZS207200903

58211HPAN, CENTER FLOOR

main58211-30350iURS206..A200903

main58211-30360iURS206,UZS207..C,G,IFOUR200903

58225ABRACKET, CENTER MOUNTING

main58225-30060×2iURS206,UZS207..C,G,IFOUR200903

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-22020iURS206,UZS207200903

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-30020iURS206,UZS207200903

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-30030iURS206,UZS207200903

58261ACOVER, TRANSMISSION

main58261-30231iURS206200903

main58261-30250iUZS207200903

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iURS206,UZS207200903

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iURS206,UZS207200903

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-30210iURS206,UZS207200903

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30790iURS206,UZS207200903

58311PAN, REAR FLOOR

main58311-30341iURS206,UZS207200903

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-30180iURS206,UZS207200903-201307

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-30110iURS206,UZS207200903-201307

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30020iURS206,UZS207200903

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30030iURS206,UZS207200903

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-30070×2iURS206,UZS207200903

58389FBRACKET, LOWER BACK COVER

main58389-30030×2iURS206,UZS207200903

58790BCARRIER ASSY, JACK

main58790-30021iURS206,UZS207200903

9010508088

main90105-08088

9011506242

main90115-06242

9011506243

main90115-06243

48 parts on this diagram · 4 diagrams in section
