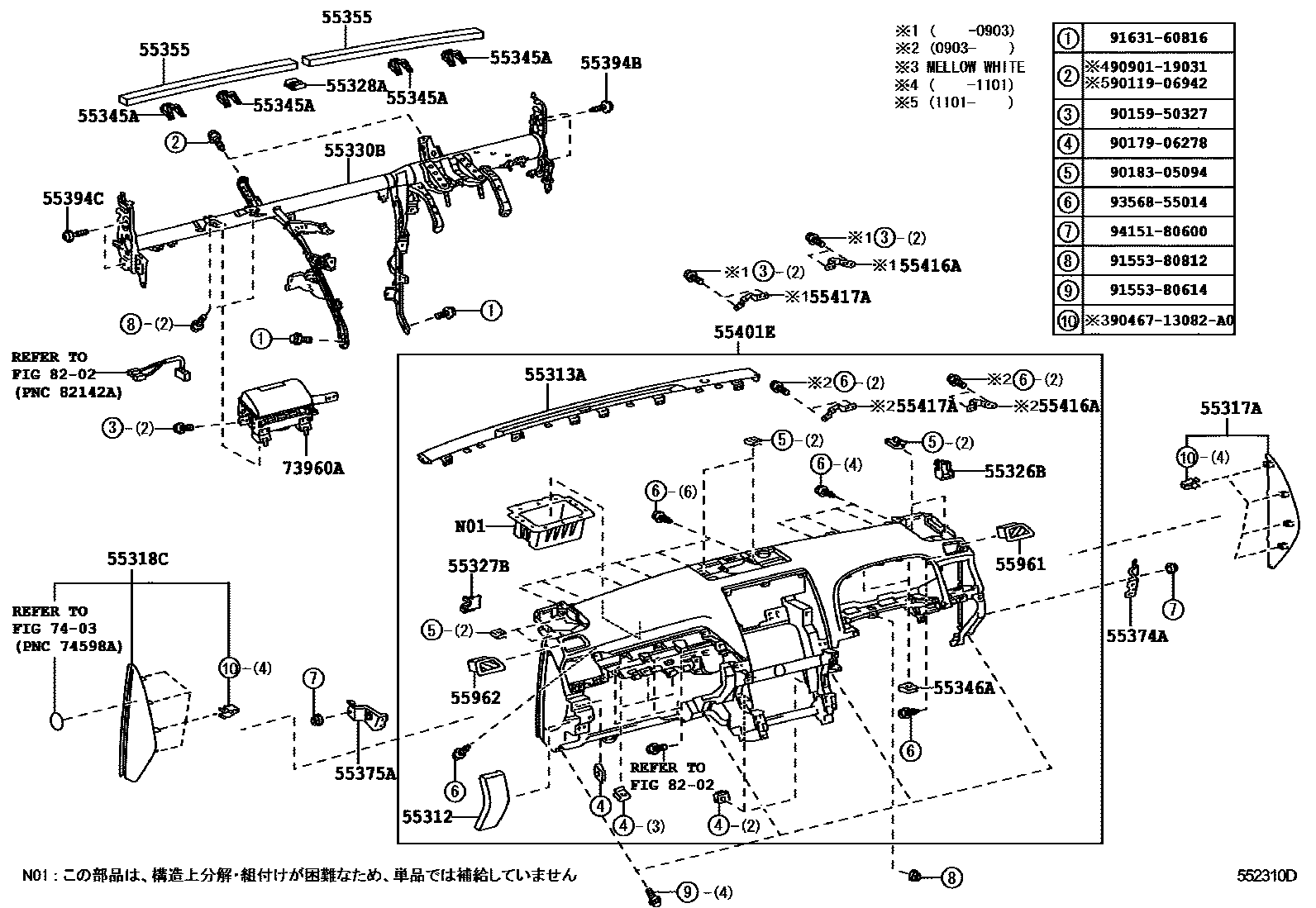

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55312PANEL, INSTRUMENT, LOWER

main55312-30120-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main55312-30120-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

55313APANEL, INSTRUMENT MAIN

main55313-30080-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

main55313-30080-E0iURS206,UZS207200903-201307

DK. BROWN,TRIM0#

55317APANEL, INSTRUMENT SIDE, RH

main55317-30080-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main55317-30080-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30100-A0iURS206,UZS207200903-201307

SHELL,TRIM0#

main55318-30100-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

55326BSTAY, INSTRUMENT PANEL, RH

main55326-30130iURS206,UZS207200903

55327BSTAY, INSTRUMENT PANEL, LH

main55327-30120iURS206,UZS207200903

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-22060iURS206,UZS207200903

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30370iURS206200903

main55330-30380iUZS207200903

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30060×4iURS206,UZS207200903

55346ACLIP, INSTRUMENT PANEL, NO.2

main55345-12060×2iURS206,UZS207200903

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060×2iURS206,UZS207200903

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-30270iURS206,UZS207200903

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-30170iURS206,UZS207200903

55394BBOLT, INSTRUMENT PANEL

main55394-30021×3iURS206,UZS207200903

55394CBOLT, INSTRUMENT PANEL

main55394-51011×2iURS206,UZS207200903

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-30082-C2iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

main55400-30082-E0iURS206,UZS207200903-201307

DK. BROWN/SHELL,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30190iURS206,UZS207200903

55417ARETAINER, METER HOOD, NO.2

main55417-30080iURS206,UZS207200903

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30150-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

main55961-30150-E0iURS206,UZS207200903-201307

DK. BROWN,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30130-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

main55962-30130-E0iURS206,UZS207200903-201307

DK. BROWN,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30090iURS206,UZS207200903

7403

8202

9011906942

main90119-06942

9015950327

main90159-50327

9017906278

main90179-06278

9018305094

main90183-05094

9046713082A0

main90467-13082A0

9090119031

main90901-19031

9155380614

main91553-80614

9155380812

main91553-80812

9163160816

main91631-60816

9356855014

main93568-55014

9415180600

main94151-80600

34 parts on this diagram · 4 diagrams in section
