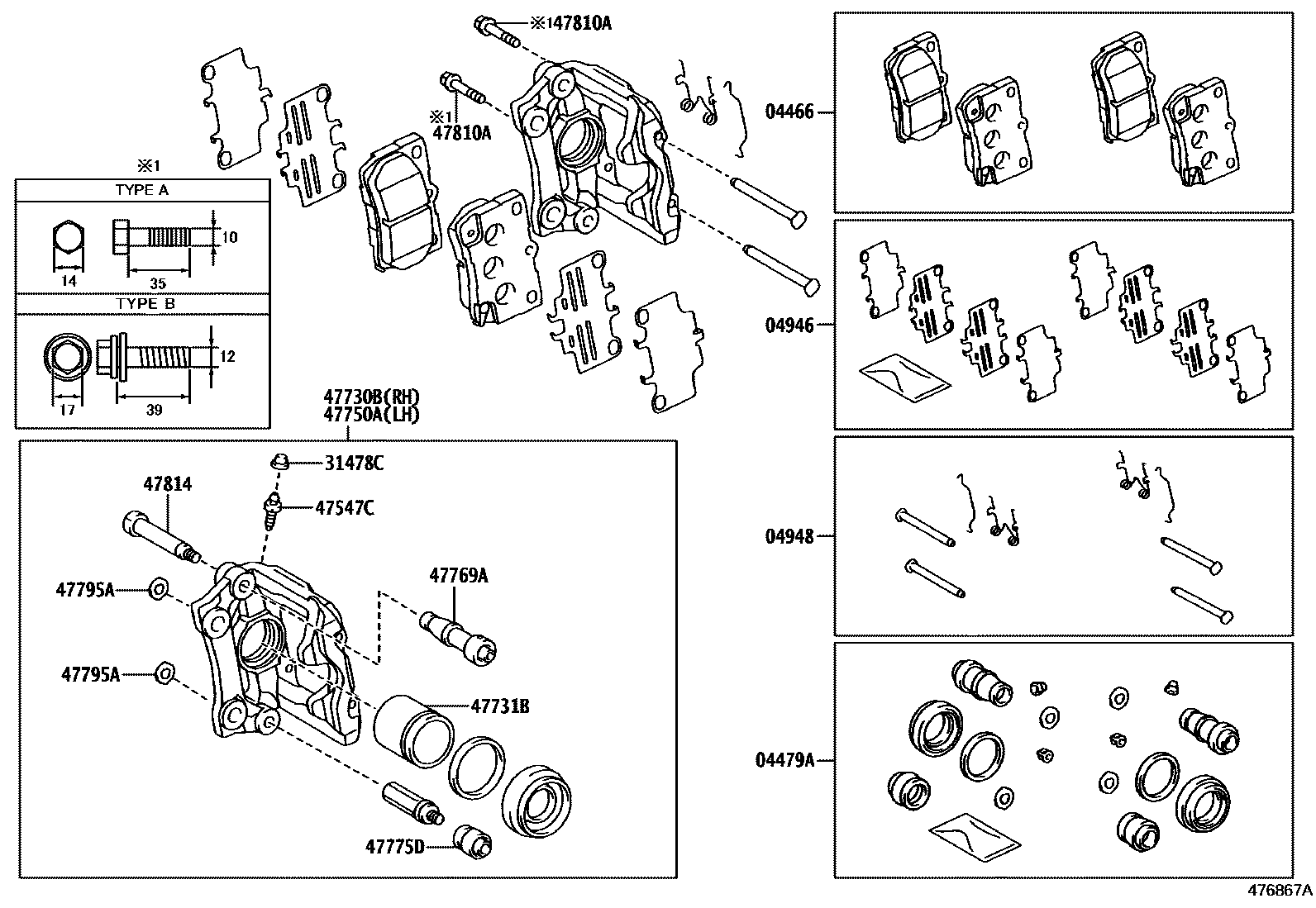

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iURS206,UZS207200903

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30520iURS206,UZS207200903-201104

main04479-30570iURS206,UZS207201104

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iURS206,UZS207200903

04948FITTING KIT, DISC BRAKE, REAR

main04948-30210iURS206,UZS207200903

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iURS206,UZS207200903

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iURS206,UZS207200903

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-30311iURS206,UZS207200903-201212

main47830-30361iURS206,UZS207201212-201307

47731BPISTON, REAR DISC BRAKE

main47831-30310×2iURS206,UZS207200903

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30311iURS206,UZS207200903-201212

main47850-30361iURS206,UZS207201212-201307

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iURS206,UZS207200903

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30340×2iURS206,UZS207200903-201104

main47875-30341×2iURS206,UZS207201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iURS206,UZS207200903

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iURS206,UZS207200903-201212

main90119-12416×4iURS206,UZS207201212-201307

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iURS206,UZS207200903

14 parts on this diagram · 1 diagram in section
