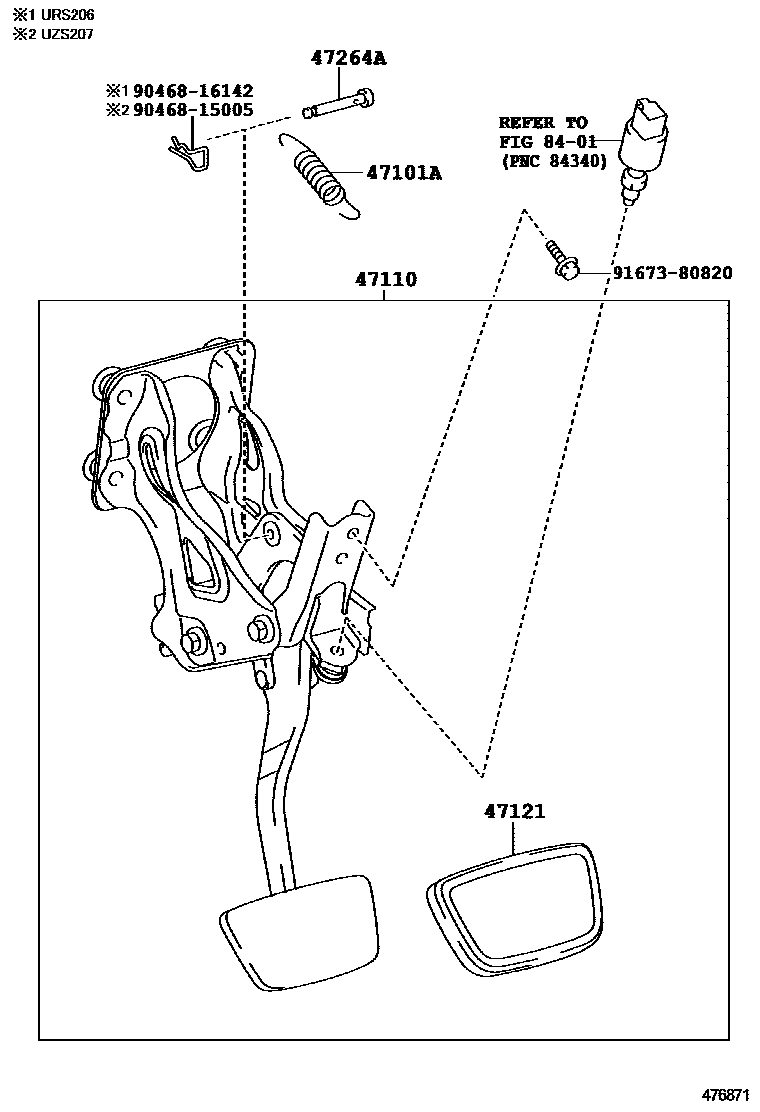

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iURS206200903

main90507-13009iUZS207200903

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30451iUZS207200903-200909

main47110-30452iUZS207200910

sub47110-30453

main47110-30461iURS206200903-200909

main47110-30462iURS206200910

47121PAD, BRAKE PEDAL

main47121-50020iURS206,UZS207200903

47264APIN(FOR PUSH ROD)

main90249-06180iUZS207200903

main90249-10199iURS206200903

8401

9046815005

main90468-15005

9046816142

main90468-16142

9167380820

main91673-80820

8 parts on this diagram · 1 diagram in section
