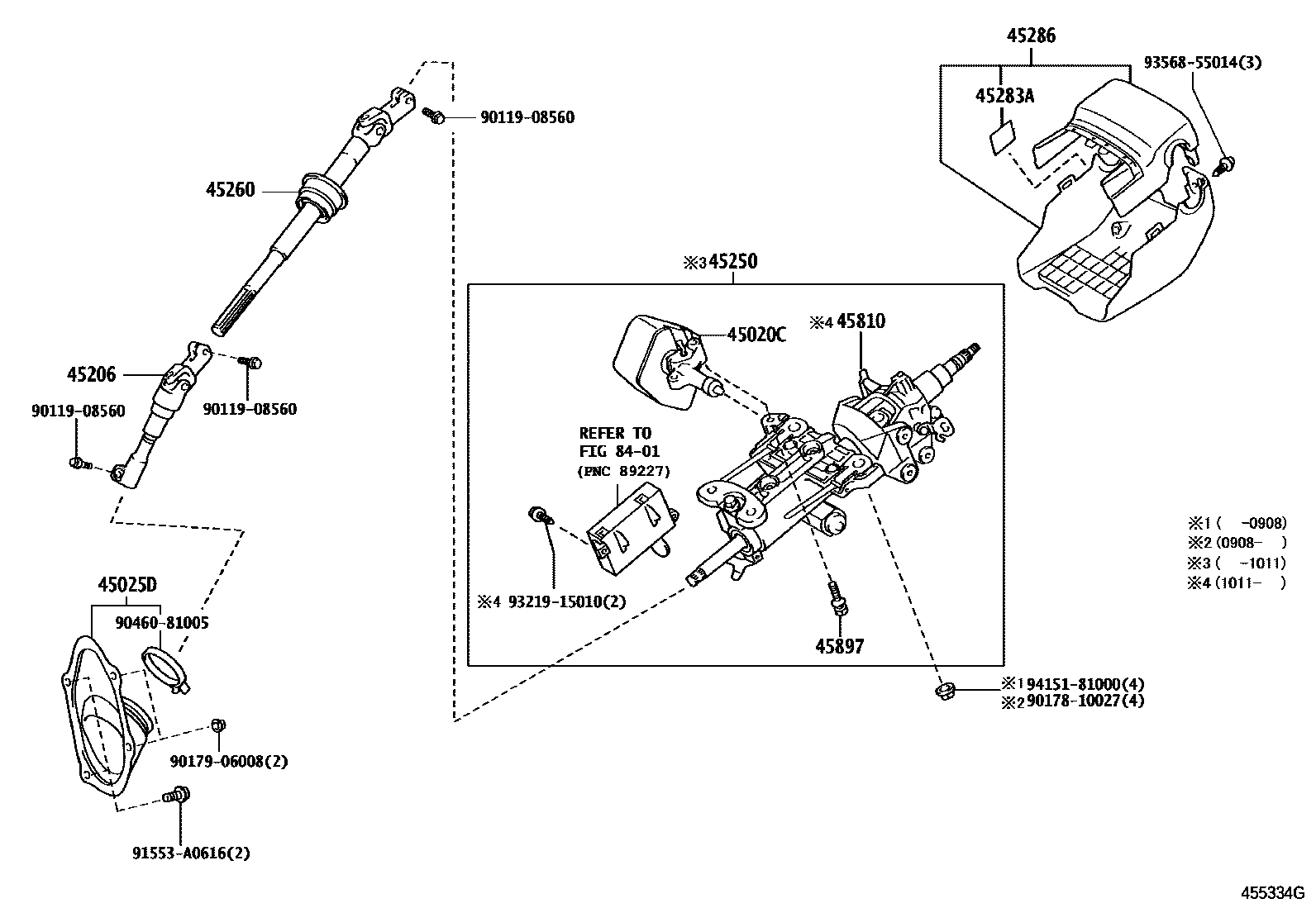

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1L �������

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A70iURS206,UZS207200903-201307

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iURS206200903

main45025-30360iUZS207200903-201302

sub45025-30361

main45025-30361iUZS207201303

main45025-30370iURS206..A200903

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30100iURS206200903-201112

sub45206-30140

main45206-30102iURS206201112

main45206-30120iURS206..A200903-201106

sub45206-30140

45250COLUMN ASSY, STEERING

main45250-30B00iURS206,UZS207200903-201011

sub45810-30190

sub45020-30A70

sub45897-12020

sub89227-30050

sub93219-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-22370iURS206200903-201212

sub45260-22371

main45260-22371iURS206201301

main45260-22380iUZS207200903-201112

sub45260-30210

main45260-22381iUZS207201112-201301

sub45260-22382

main45260-22382iUZS207201302

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iURS206,UZS207200903-201307

45286COVER, STEERING COLUMN

main45286-3A904-C0iURS206,UZS207..A,C,IFOUR200903-201307

BLACK,TRIM2#

main45286-3A904-E2iURS206,UZS207200903-201307

DK. BROWN,TRIM0#

main45286-3A913-C0iURS206,UZS207..C,IFOUR200903-201307

main45286-3A913-E1iURS206..G200903-201307

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30190iURS206,UZS207201011

45897BOLT, STEERING LOCK SET

main45897-12020iURS206,UZS207200903

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

9321915010

main93219-15010

9356855014

main93568-55014

9415181000

main94151-81000

18 parts on this diagram · 3 diagrams in section
