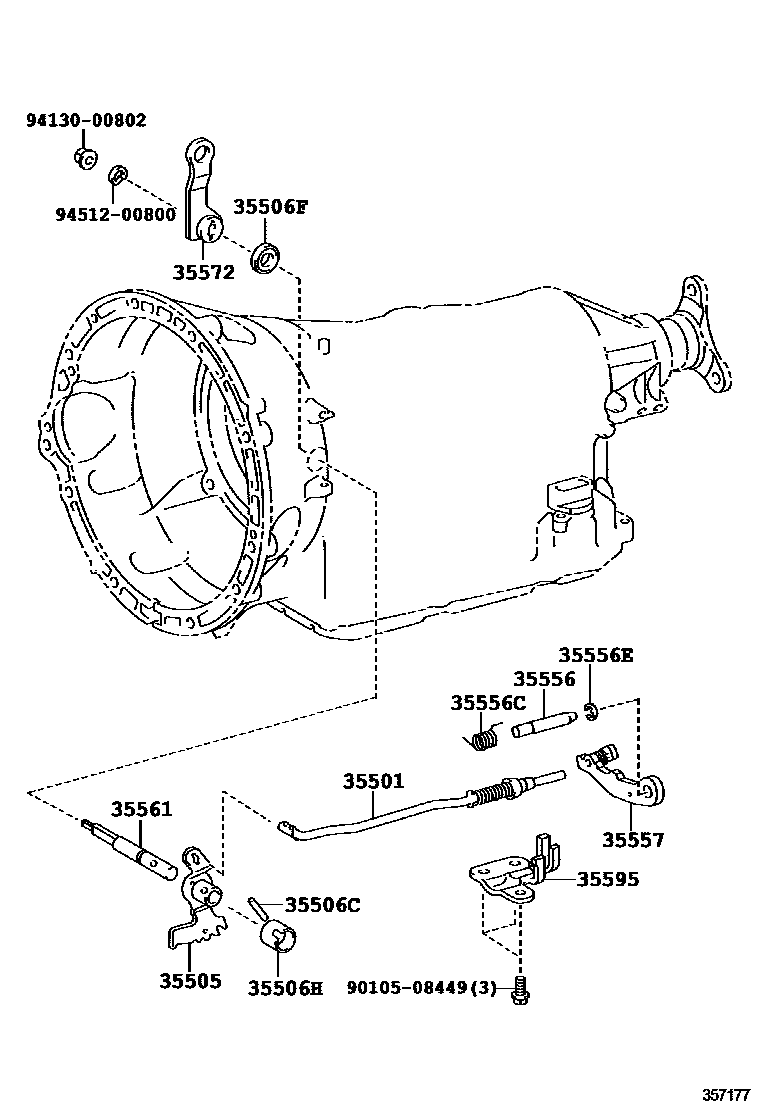

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AA80E 0002 1A761H

35501ROD SUB-ASSY, PARKING LOCK

main35501-50010iUZS207200903

main35501-50020iURS206200903

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30040iURS206200903

main35505-53030iUZS207200903

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iURS206,UZS207200903

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iURS206200903

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iURS206,UZS207200903

35556SHAFT, PARKING LOCK PAWL

main35556-60020iURS206,UZS207200903

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90949-03147iURS206200903

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iURS206,UZS207200903

35557PAWL, PARKING LOCK

main35590-50010iUZS207200903

sub35590-50030

main35590-50020iURS206200903

35561SHAFT, MANUAL VALVE LEVER

main35561-50030iURS206200903

main35561-60030iUZS207200903

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30100iURS206200903

35595BRACKET, PARKING LOCK PAWL

main35595-50010iUZS207200903

main35595-50020iURS206200903

9010508449

main90105-08449

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
