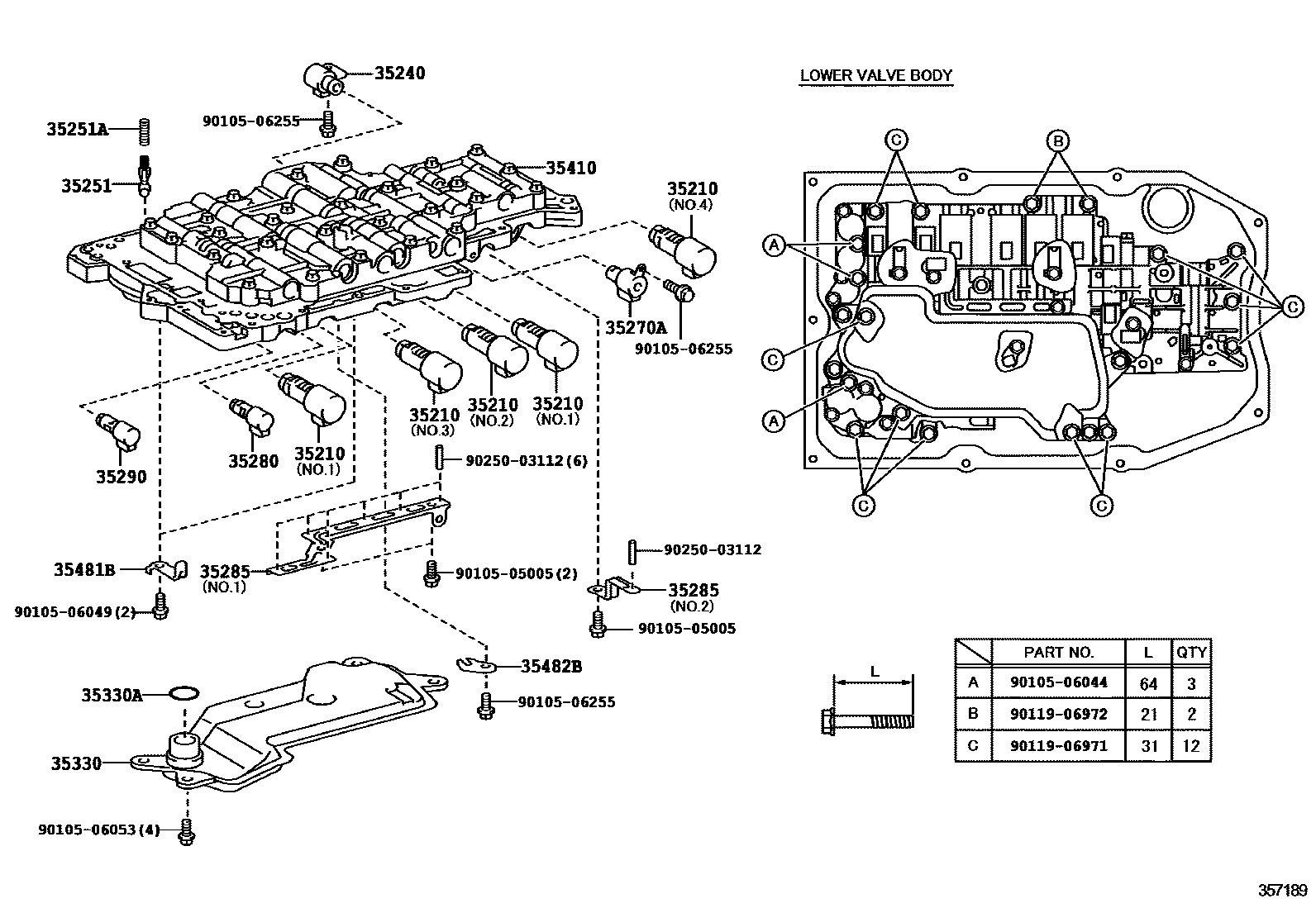

VALVE BODY & OIL STRAINER (ATM)

0001 1AA80E 0002 1A761H 0003 1AA80E 0004 1A761H

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-50010×2iUZS207200903

main35210-50040×2iURS206200903

main35210-50050iURS206200903

main35210-50060iURS206200903

main35210-50070iURS206200903

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-50030×2iUZS207200903

main35240-50040iUZS207200903

main35240-50050iUZS207200903

main35240-50060iUZS207200903

main35240-50090iURS206200903

35251BODY, CHECK BALL

main35251-30020iURS206,UZS207200903

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iURS206,UZS207200903

35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP

main35270-50020iURS206200903

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-30050iUZS207200903

main35280-50030iURS206200903

35285PLATE, SOLENOID LOCK

main35285-50020×2iUZS207200903

main35285-50040iURS206200903

main35285-50050iURS206200903

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-34010iUZS207200903

main35290-50020iURS206200903

35330STRAINER ASSY, VALVE BODY OIL

main35330-30080iUZS207200903

main35330-50030iURS206200903

35330ARING, O (FOR OIL STRAINER)

main90301-31014iURS206,UZS207200903

35410BODY ASSY, TRANSMISSION VALVE

main35410-30A30iUZS207200903

sub35410-30A31

main35410-50130iURS206200903

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50040iUZS207200903

main35481-50050×2iURS206200903

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iURS206200903

main35482-60040iUZS207200903

9010505005

main90105-05005

9010506044

main90105-06044

9010506049

main90105-06049

9010506053

main90105-06053

9010506255

main90105-06255

9011906971

main90119-06971

9011906972

main90119-06972

9025003112

main90250-03112

21 parts on this diagram · 4 diagrams in section
