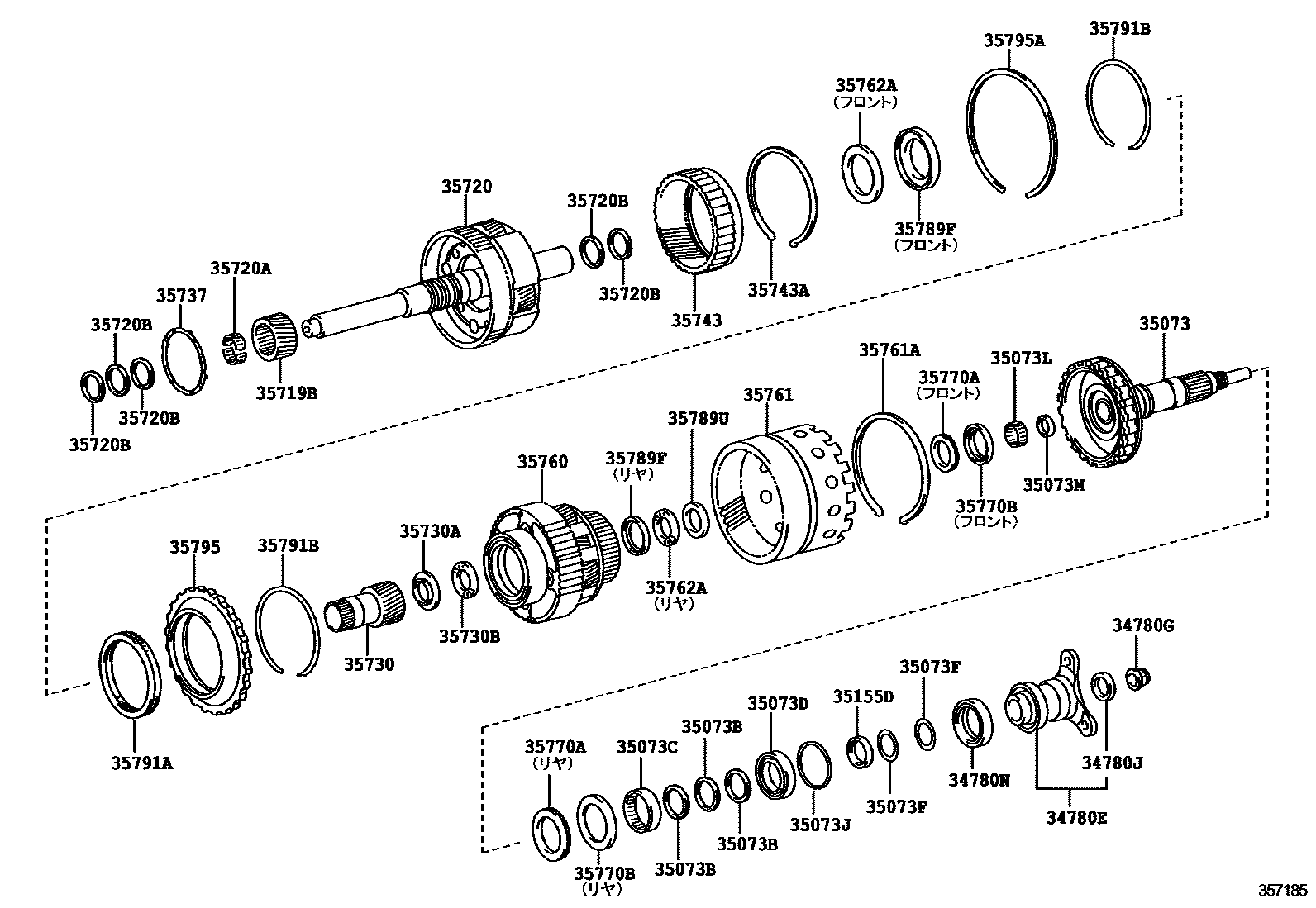

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
34780NSEAL, TYPE T OIL (FOR FRANGE YOKE)
35073SHAFT SUB-ASSY, OUTPUT
35073BRING, O (FOR OUTPUT SHAFT)
35073CBEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
35073DBEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
35073FSPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35073LBEARING, NEEDLE ROLLER (FOR OUTPUT SHAFT)
35073MPLUG, TIGHT (FOR OUTPUT SHAFT)
35155DSLEEVE, REAR COVER
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35730GEAR ASSY, REAR PLANETARY SUN
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
35737WASHER, PLANETARY CARRIER THRUST
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
35789URACE, THRUST BEARING
35791ACLUTCH, 1 WAY, NO.1
35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)
35795RACE, 1 WAY CLUTCH OUTER
35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
35 parts on this diagram · 2 diagrams in section
