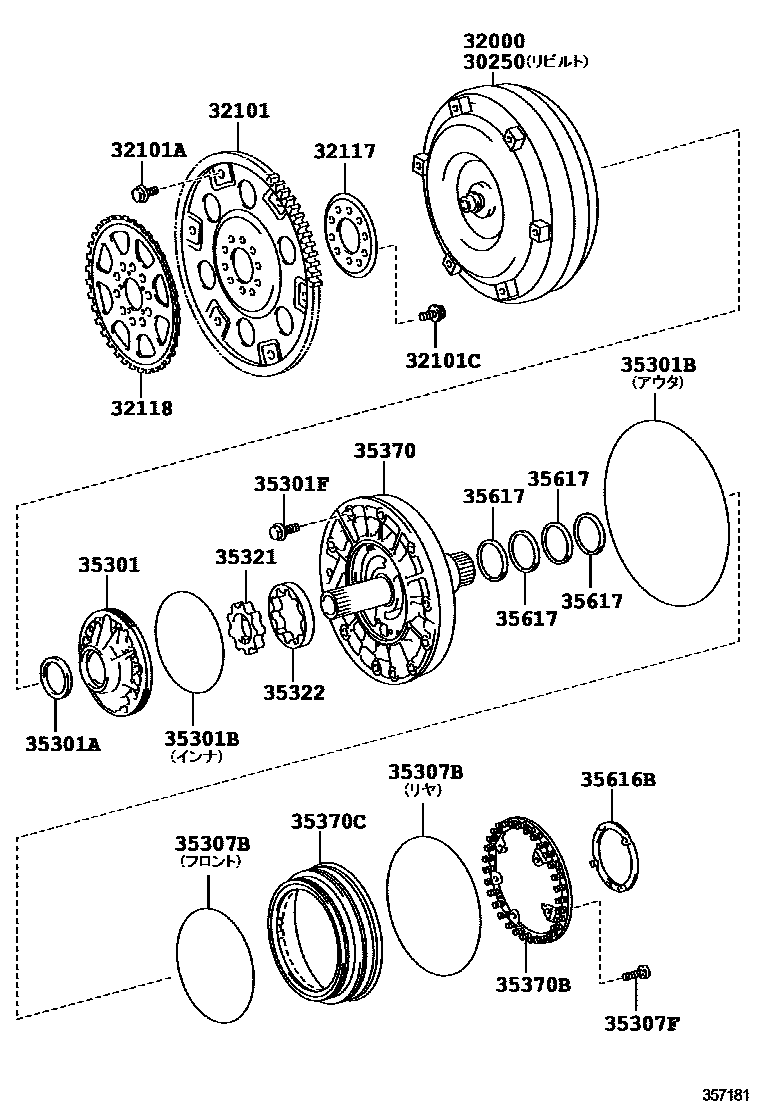

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AA80E 0002 1A761H

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-50040iUZS207200903-201307

main30250-50050iURS206200903-201307

32000CONVERTER ASSY, TORQUE

main32000-50040iUZS207200903-201307

main32000-50050iURS206200903-201307

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50010iUZS207200903

main32101-50021iURS206200903

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iUZS207200903

main90105-09006×5iUZS207200903

main90105-10340×5iURS206200903

main90105-10547iURS206200903

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129×8iURS206200903

main90910-A2002×10iURS206200903

32117SPACER, DRIVE PLATE, REAR

main32117-34010iURS206200903

main32117-50010iUZS207200903

32118ROTOR, CRANKSHAFT ANGLE SENSOR

main32118-34010iURS206200903

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-50030iURS206200903-201208

main35301-50031iURS206201208

main35301-60030iUZS207200903

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iUZS207200903

main90311-45032iURS206200903

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99087iURS206200903

main90301-99139iUZS207200903

main90301-99148iUZS207200903

main90301-99171iURS206200903

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08353×11iURS206200903

main90105-08451×10iUZS207200903

35307BRING, SHAFT SNAP (FOR STATOR SHAFT)

main90301-99170iURS206200903

main90301-99172iURS206200903

35307FBOLT (FOR STATOR SHAFT)

main90148-06001×7iURS206200903

main90148-60079×14iUZS207200903

35321GEAR, FRONT OIL PUMP DRIVE

main35321-50010iUZS207200903

main35321-50020iUZS207200903

main35321-50030iUZS207200903

main35321-50040iUZS207200903

main35321-50050iUZS207200903

main35321-50060iUZS207200903

main35321-50070iUZS207200903

main35321-50080iURS206200903

main35321-50090iURS206200903

main35321-50100iURS206200903

main35321-50110iURS206200903

main35321-50120iURS206200903

main35321-50130iURS206200903

main35321-50140iURS206200903

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-50010iUZS207200903

main35322-50020iUZS207200903

main35322-50030iUZS207200903

main35322-50040iUZS207200903

main35322-50050iUZS207200903

main35322-50060iUZS207200903

main35322-50070iUZS207200903

main35322-50080iURS206200903

main35322-50090iURS206200903

main35322-50100iURS206200903

main35322-50110iURS206200903

main35322-50120iURS206200903

main35322-50130iURS206200903

main35322-50140iURS206200903

35370SHAFT ASSY, STATOR

main35370-50030iUZS207200903

main35370-50040iURS206200903-201208

main35370-50041iURS206201208

35370BSPRING SUB-ASSY, STATOR SHAFT

main35608-50020iURS206200903

35370CPISTON, STATOR SHAFT

main35621-50020iURS206200903

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-50010iURS206200903

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030×3iURS206200903

20 parts on this diagram · 2 diagrams in section
