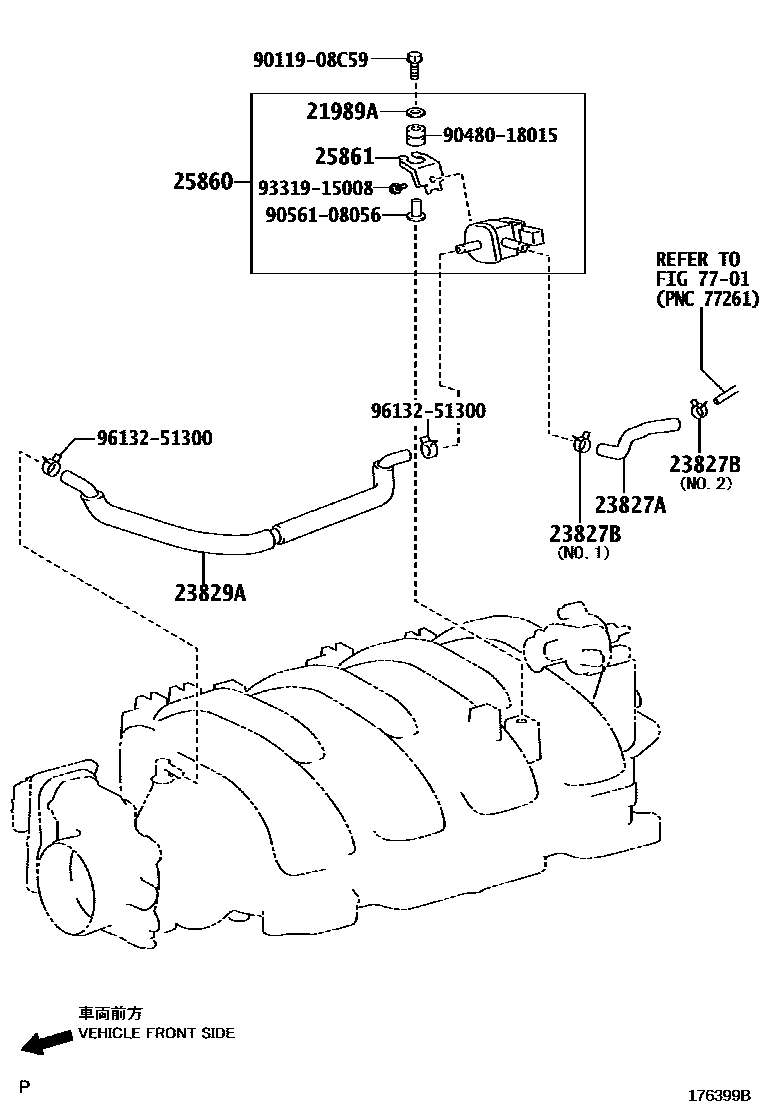

VACUUM PIPING

0001 1 0002 1

21989AINSULATOR, PLATE

main21989-38010i1URFSE..URS206200903

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38040i1URFSE..URS206200903-201307

main23827-50160i3UZFE..UZS207200903-201307

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i1URFSE..URS206200903-201307

main96132-41500i3UZFE..UZS207200903-201307

main96132-51300i1URFSE,3UZFE..URS206,UZS207200903-201307

23829AHOSE, FUEL VAPOR FEED

main23829-38030i1URFSE..URS206200903

sub23829-38031

main23829-50070i3UZFE..UZS207200903

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i1URFSE..URS206200903

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i1URFSE..URS206200903

7701

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

9613251300

main96132-51300

12 parts on this diagram · 2 diagrams in section
