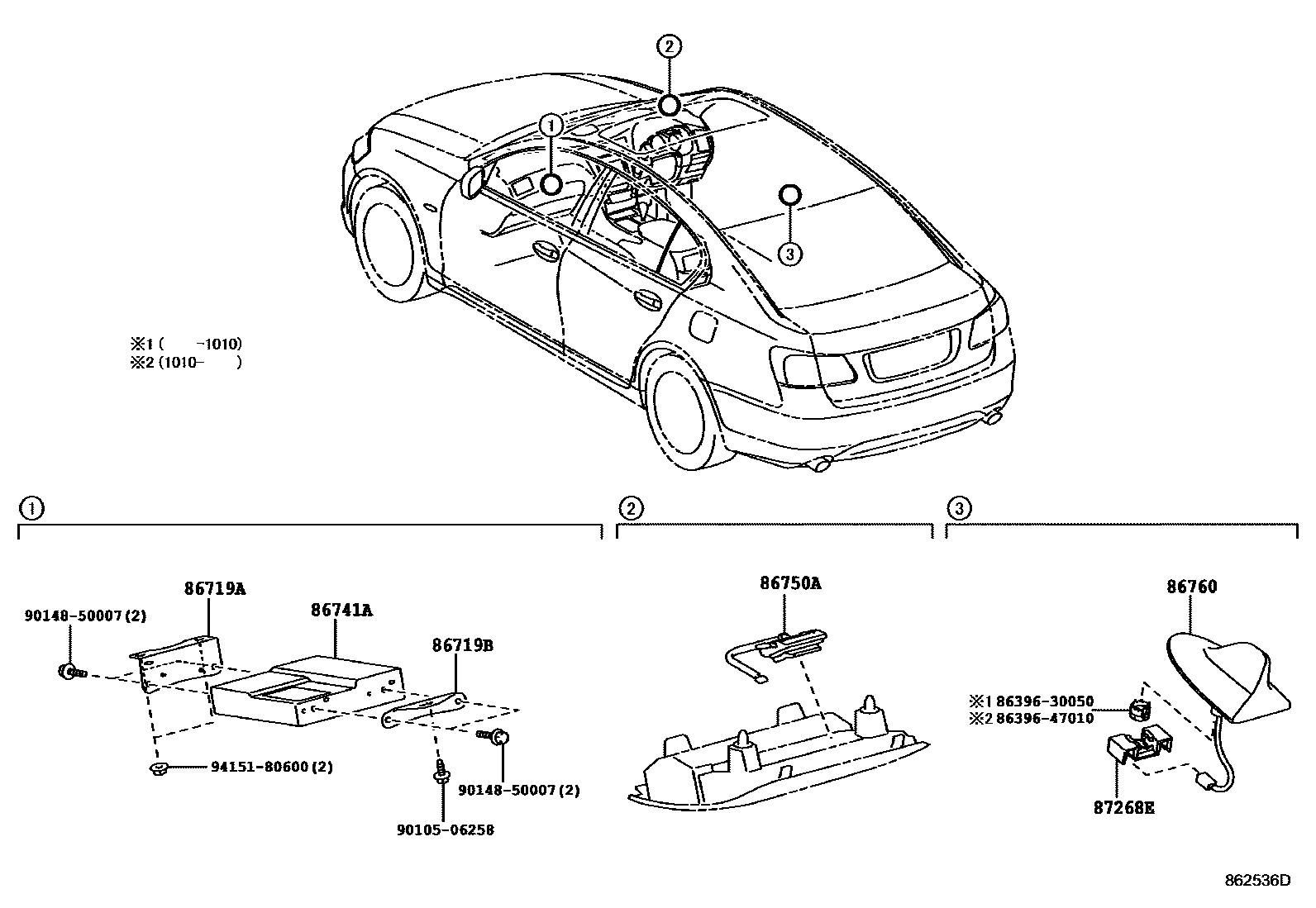

TELEPHONE & MAYDAY
86719ABRACKET, TELEPHONE NO.1
86719BBRACKET, TELEPHONE NO.2
86750ASWITCH ASSY, MAYDAY
IVORY,TRIM0#
GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#
IVORY,TRIM02,03,26
WATER WHITE,TRIM04
LT.GRAY,TRIM1#,20,22,26
86760ANTENNA ASSY, TELEPHONE
WHITE PEARL CS.,062
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,202
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
PREMIUM BEIGE,4S7
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
OLIVE M.M.,6T7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DARK BLUE MC.,8P8
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
DK.PURPLE M.M.,9AB
8639630050NUT, ANTENNA
main86396-30050
8639647010NUT, ANTENNA
main86396-47010
9010506258
main90105-06258
9014850007
main90148-50007
9415180600
main94151-80600
11 parts on this diagram · 1 diagram in section
