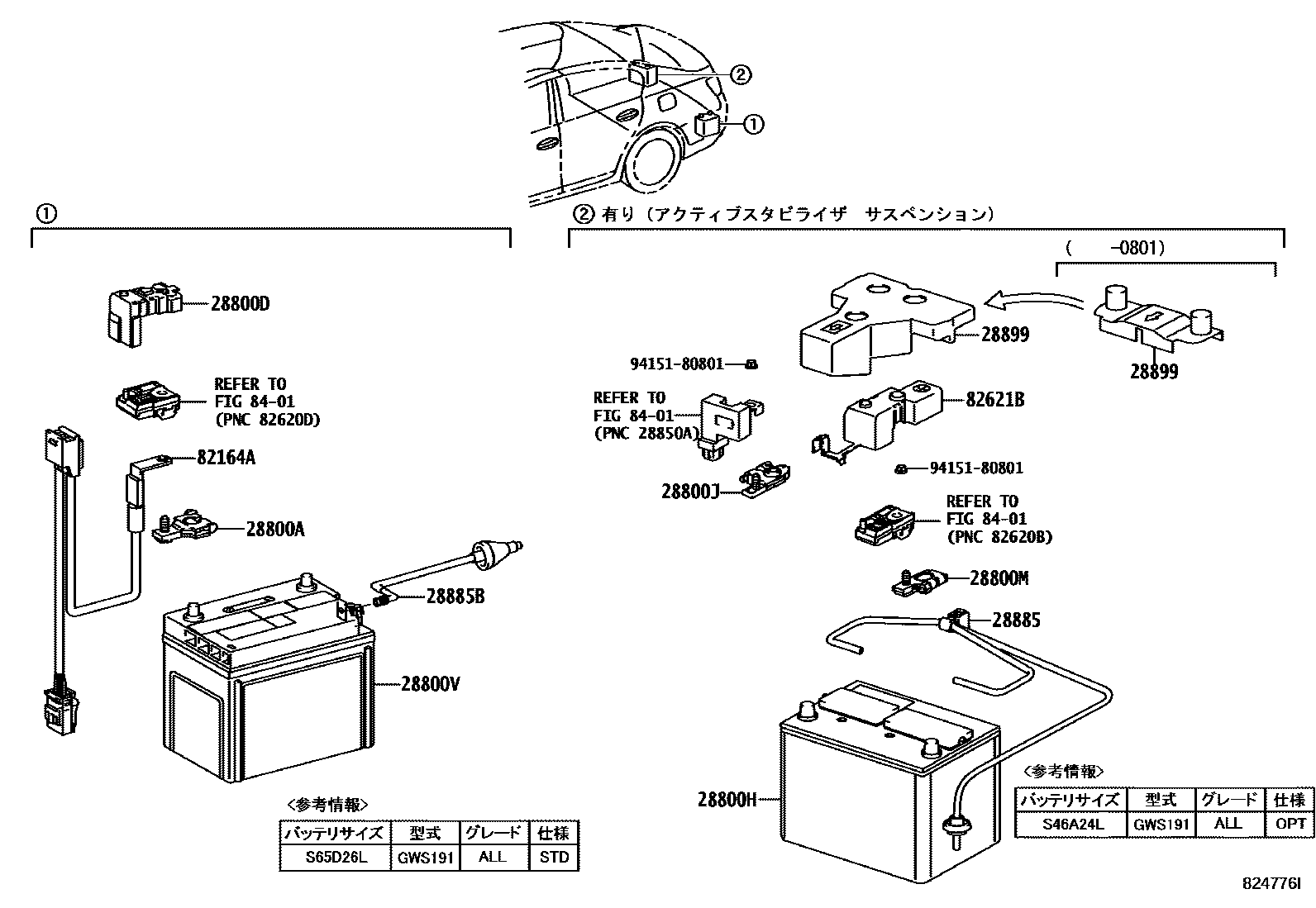

BATTERY & BATTERY CABLE

0001 112V ����� 0002 1HV ����� 0003 1HV ����� 0004 1HV ����� 0005 1HV ����� 0006 1HV ����� 0007 1HV �����

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i2GRFSE..GWS191200602-201112

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-30020i2GRFSE..GWS191200602-200709

28800HBATTERY, NO.2

28800JTERMINAL, BATTERY NEGATIVE

28800MTERMINAL, BATTERY POSITIVE

28800VBATTERY, W/TEMPERATURE SENSOR

main28800-31310i2GRFSE..GWS191200602-201008

sub28800-31311

main28800-31311i2GRFSE..GWS191201009-201112

28885HOSE, BATTERY ROOM VENTILATION

main28885-31010

main28885-31020

main28885-31030

main28885-31080

28885BHOSE, BATTERY

main28885-31030i2GRFSE..GWS191200602-200709

28899INSULATOR, BATTERY

main28899-31050

main28899-31120

82164AWIRE, FLOOR, NO.4

main82163-30090iGWS191200602-201112

82621BCOVER, FUSIBLE LINK

8401

9415180801

main94151-80801

13 parts on this diagram · 7 diagrams in section
