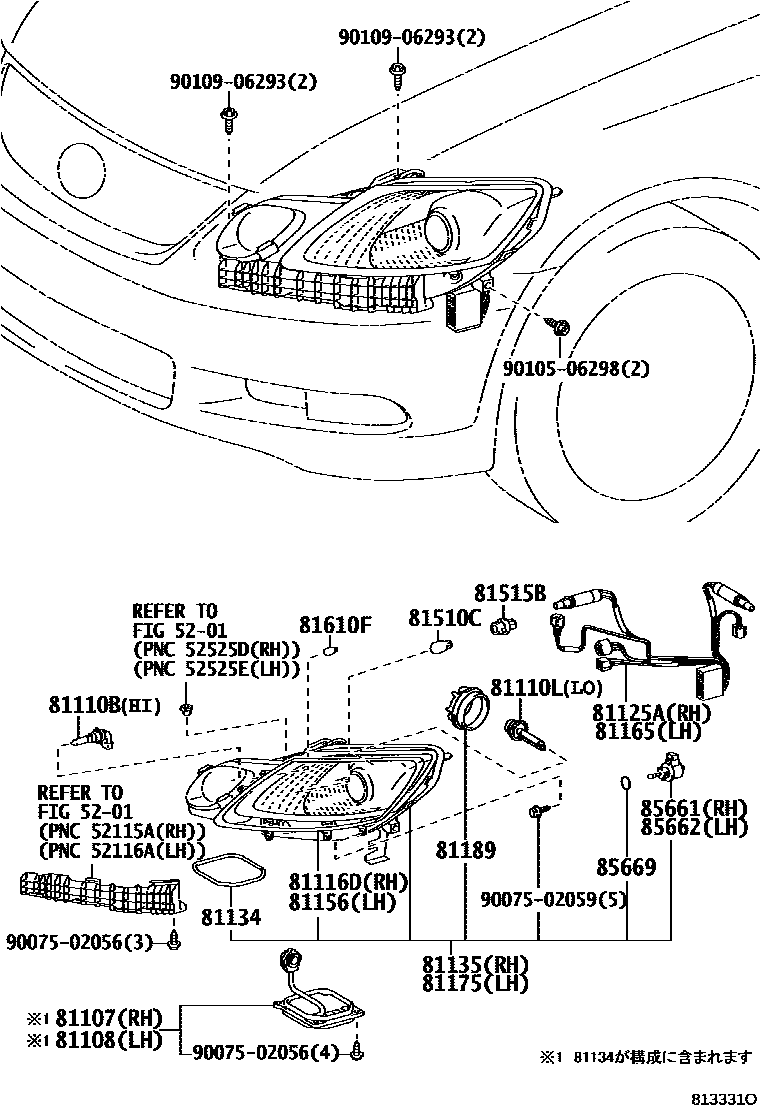

HEADLAMP

0001 1 0002 1

5201

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-30D30iGWS191200911-201005

sub81107-30D31

main81107-30D31iGWS191201005

main81107-47150iGWS191200611-200911

sub81107-30D30

main81108-30B90iGWS191200602-200610

sub81107-47150

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-30D30iGWS191200911-201005

sub81107-30D31

main81107-30D31iGWS191201005

main81107-47150iGWS191200611-200911

sub81107-30D30

main81108-30B90iGWS191200602-200610

sub81107-47150

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13066iGWS191200602-201112

81110LBULB, DISCHARGE HEADLAMP

main90981-20020iGWS191200709-200711

sub90981-20024

main90981-20021iGWS191200602-200902

sub90981-20024

main90981-20024iGWS191200902-201112

81116DRIM, HEAD LAMP, RH

main81116-30B30iGWS191200602-200709

81125ACORD, HEADLAMP, RH

main81125-30B80iGWS191200602-200709

81134GASKET, HEADLAMP

main90075-68007iGWS191200602-200709

81135UNIT ASSY, HEADLAMP, RH

main81145-30B30iGWS191200602-200709

main81145-30D50iGWS191200709

81156RIM, HEADLAMP, LH

main81156-30B40iGWS191200602-200709

81165CORD, HEADLAMP, LH

main81165-30B91iGWS191200602-200709

81175UNIT ASSY, HEADLAMP, LH

main81185-30B41iGWS191200602-200709

main81185-30D60iGWS191200709

81189COVER, HEADLAMP

main81135-30D31iGWS191200602-201112

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iGWS191200602-201112

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60026iGWS191200602-200709

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGWS191200602-201112

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48030iGWS191200602-200709

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48030iGWS191200602-200709

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iGWS191200602-200709

9007502056

main90075-02056

9007502059

main90075-02059

9010506298

main90105-06298

9010906293

main90109-06293

23 parts on this diagram · 2 diagrams in section
