SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
WHITE PEARL CS.,062
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,202
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
PREMIUM BEIGE,4S7
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
OLIVE M.M.,6T7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DARK BLUE MC.,8P8
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
DK.PURPLE M.M.,9AB
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
WHITE PEARL CS.,062
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,202
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
PREMIUM BEIGE,4S7
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
OLIVE M.M.,6T7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
DARK BLUE MC.,8P8
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
DK.PURPLE M.M.,9AB
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,062
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,202
BLACK,212
BLACK OPAL MC.,214
RED MC.CS.,3R1
PREMIUM BEIGE,4S7
BEIGE ME.,4T1
OLIVE M.M.,6T7
JADE GREEN ME.,6V0
DARK BLUE MC.,8P8
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
DK.PURPLE M.M.,9AB
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,062
BLUISH PEARL CS.,074
WHITE PEARL CS.,077
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,202
BLACK,212
BLACK OPAL MC.,214
RED MC.CS.,3R1
PREMIUM BEIGE,4S7
BEIGE ME.,4T1
OLIVE M.M.,6T7
JADE GREEN ME.,6V0
DARK BLUE MC.,8P8
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
DK.PURPLE M.M.,9AB
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
6786933030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-33030
7554530150SPACER, WINDSHIELD GLASS
main75545-30150
7554630100CLIP, WINDSHIELD OUTSIDE MOULDING
main75546-30100
9015960498
main90159-60498
9015960507
main90159-60507
9016240034
main90162-40034
9016440096
main90164-40096
9018306019
main90183-06019
9018904059
main90189-04059
9018904207
main90189-04207
9018904231
main90189-04231
9018906172
main90189-06172
9026904051
main90269-04051
9026904060
main90269-04060
9046708219
main90467-08219

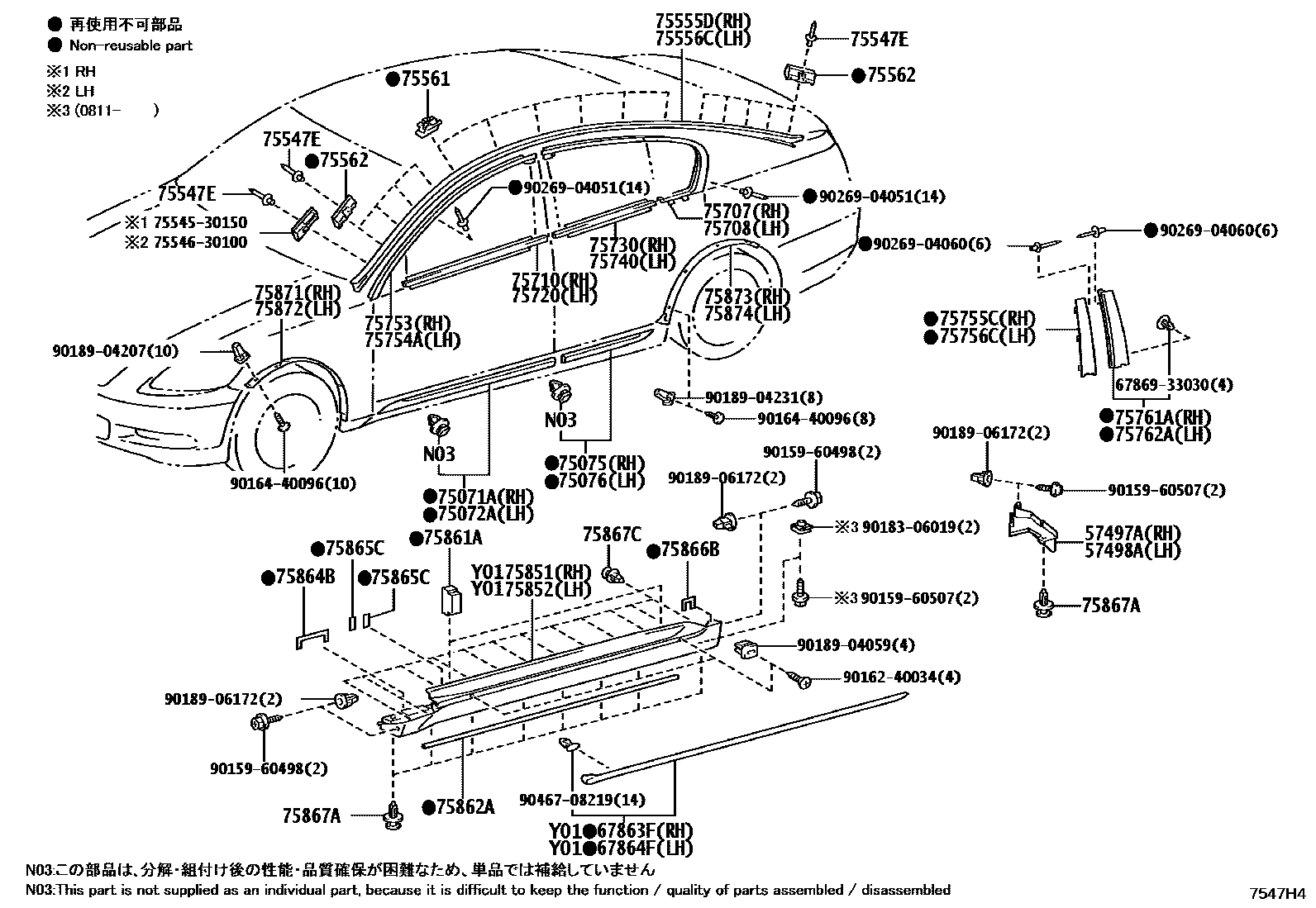

53 parts on this diagram · 1 diagram in section
