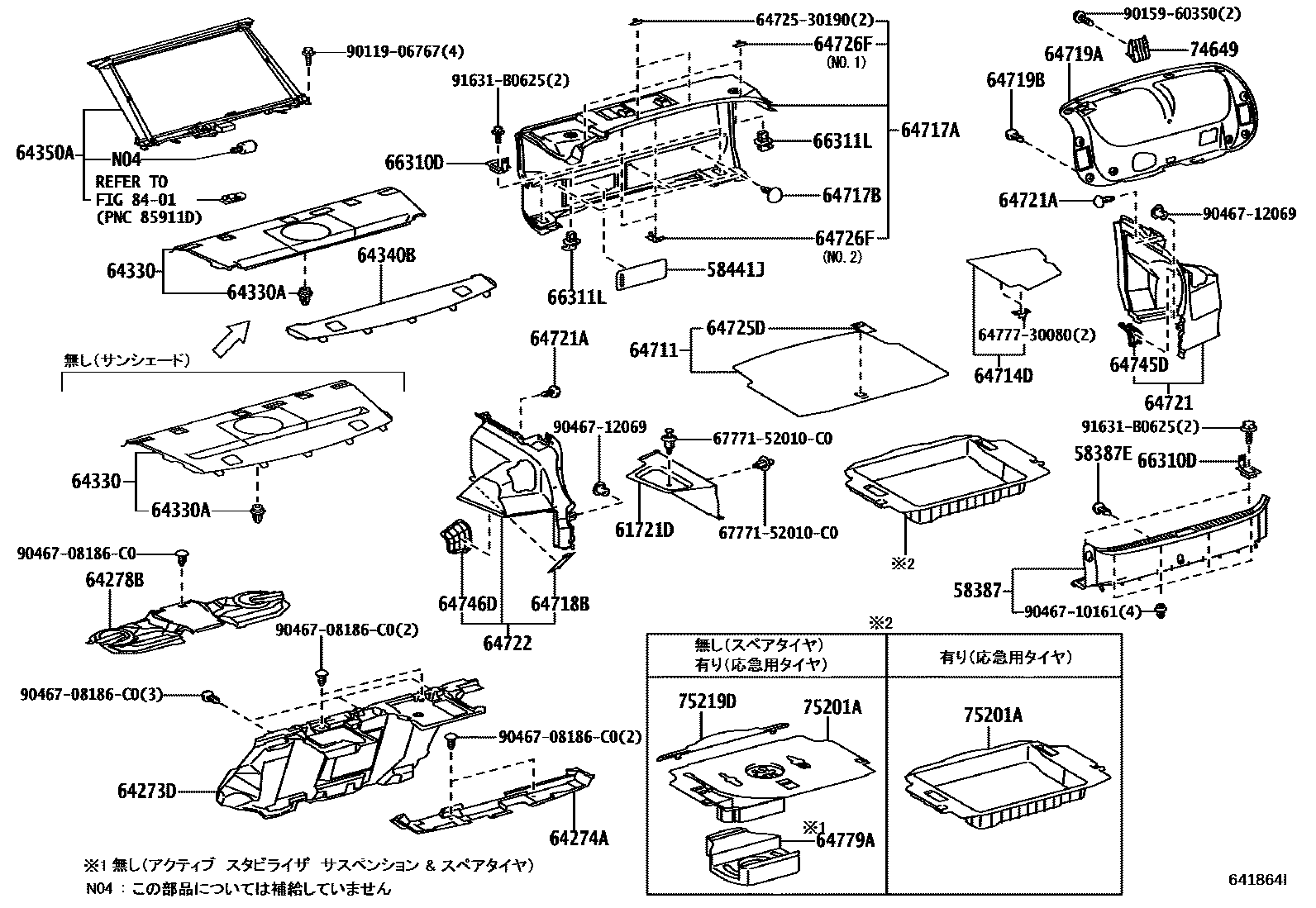

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58441JCOVER, BATTERY SERVICE HOLE
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
61721DCOVER, BATTERY SERVICE HOLE, LH
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
64779ASTOPPER, SPARE WHEEL COVER
66310DHOOK ASSY, ROPE
66311LHOOK,ROPE
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,1#,28,29
BLACK,TRIM0#,1#,2#
75201ABOX, TOOL
75219DBOARD, TOOL BOX
8401
6472530190RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30190
6477730080CLAMP, SPARE WHEEL COVER
main64777-30080
6777152010C0WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-52010C0
9011906767
main90119-06767
9015960350
main90159-60350
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046712069
main90467-12069
91631B0625
main91631-B0625
41 parts on this diagram · 1 diagram in section
