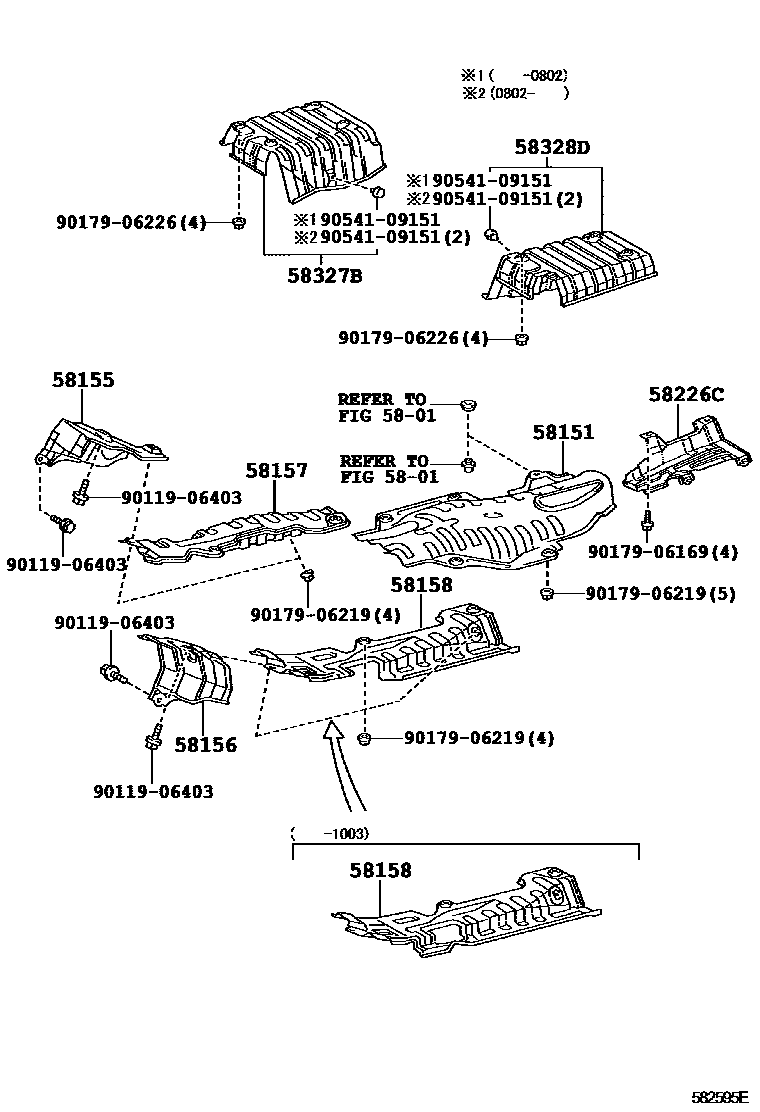

FLOOR INSULATOR

5801

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30180iGWS191200602-200709

sub58151-30181

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGWS191200602-200709

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30110iGWS191200602-200709

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGWS191200602-201003

sub58157-30072

main58157-30072iGWS191201004-201110

sub58157-30073

main58157-30073iGWS191201111-201112

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGWS191200602-201003

sub58158-30062

main58158-30062iGWS191201004-201112

sub58158-30063

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-53010iGWS191200602-200709

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30052iGWS191200602-200802

main58327-30053iGWS191200802

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30033iGWS191200602-200802

main58328-30034iGWS191200802

9011906403

main90119-06403

9017906169

main90179-06169

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

14 parts on this diagram · 1 diagram in section
