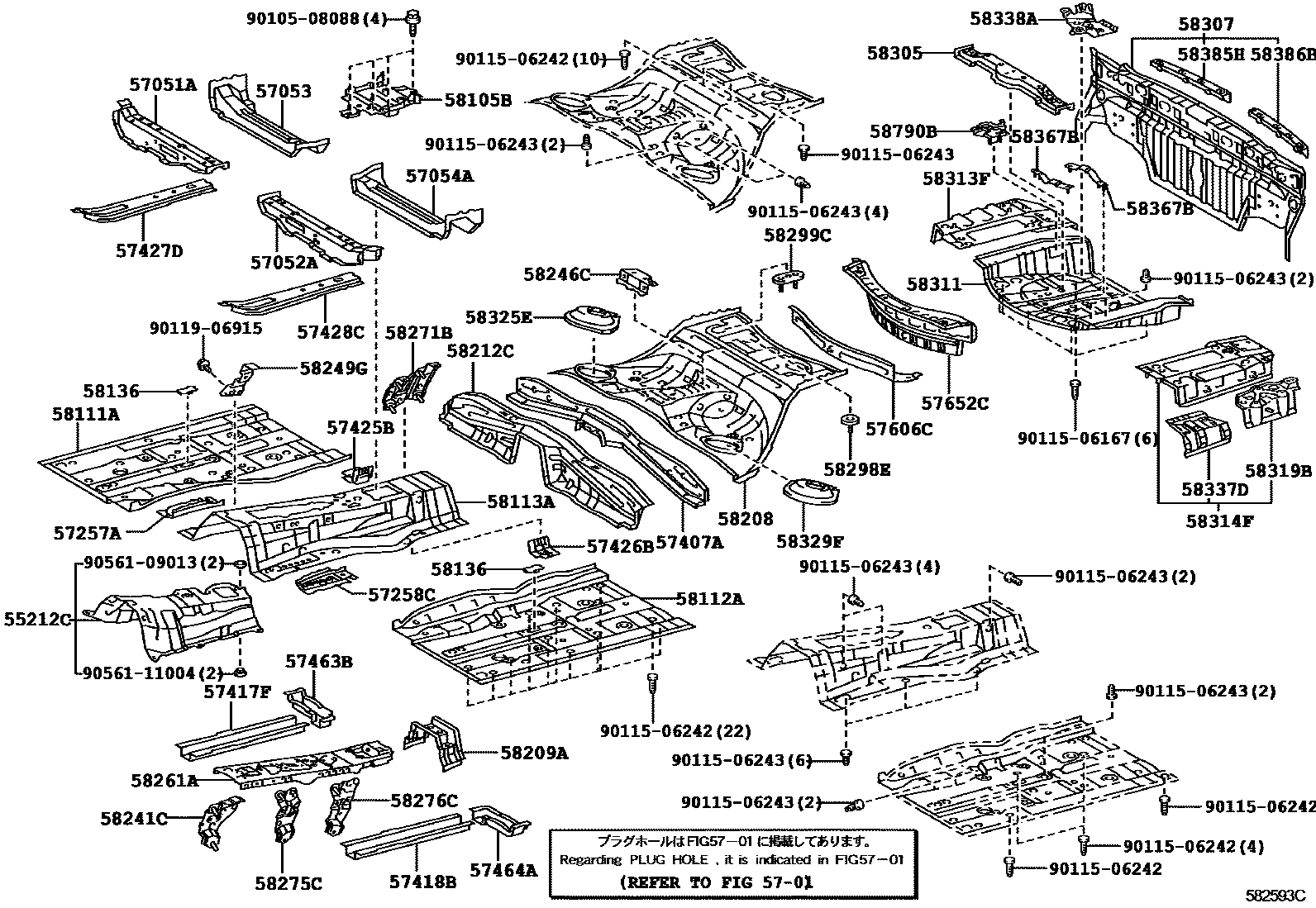

FLOOR PAN & LOWER BACK PANEL
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH
57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57652CMEMBER, REAR FLOOR CROSS, NO.1
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136COVER, FRONT FLOOR HOLE
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58241CPANEL, FLOOR SIDE, RH
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58249GBRACKET, CABLE CLAMP, NO.2
58261ACOVER, TRANSMISSION
58271BPLATE, FLOOR SIDE, REAR, RH
58275CBRACKET, WIRE HARNESS PROTECTOR
58276CREINFORCEMENT, SIDE FLOOR, NO.4
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58319BBRACKET, REAR FLOOR SIDE PANEL
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58367BBRACKET, FUEL TUBE
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58790BCARRIER ASSY, JACK
9010508088
9011506167
9011506242
9011506243
9011906915
9056109013
9056111004
57 parts on this diagram · 3 diagrams in section
