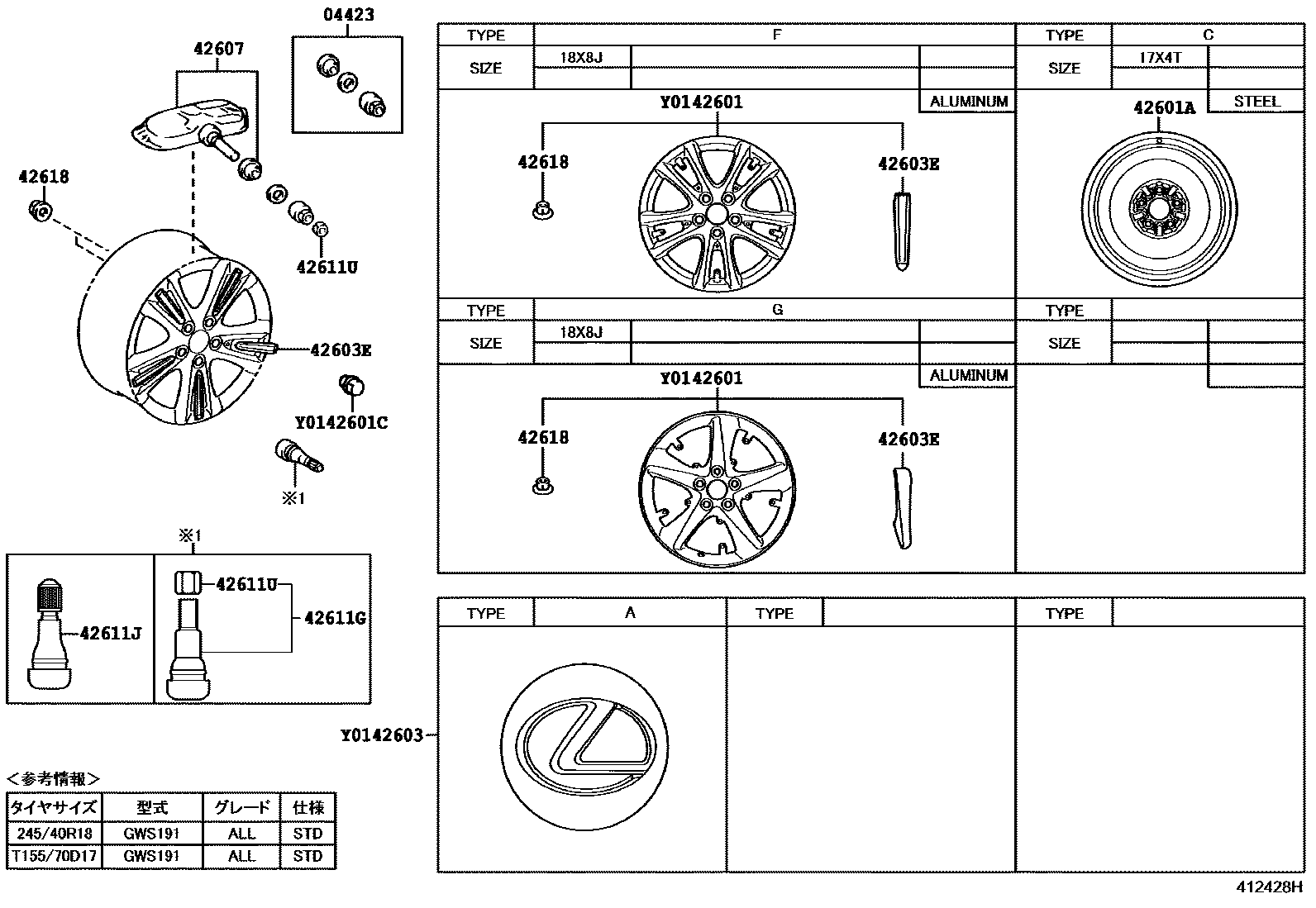

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main00000-00000iGWS191201007-201109

main04423-33030iGWS191200607-201112

sub04423-33060

main04423-35020iGWS191200602-200603

main04423-42010iGWS191200604-200607

42601WHEEL, DISC

main42601-30040iGWS191200602-200909

sub42601-30050

main42601-30080iGWS191200909-201112

sub42601-30090

main42601-30110iGWS191201007-201109

sub42601-30111

42601AWHEEL, DISC (FOR SPARE)

main42611-30A60iGWS191200602-201112

42601CNUT, HUB (FOR AXLE)

main90942-01033iGWS191200602-201112

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30540iGWS191200602-200909

main42603-30590iGWS191201007-201109

main42603-50300iGWS191200909

42603EGARNISH SUB-ASSY, WHEEL HUB

main42603-30620iGWS191200602-200709

sub4260B-30010

main4260B-30010iGWS191200709-200909

main4260B-30030iGWS191200909-201112

main4260B-30050iGWS191201007-201109

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main00000-00000iGWS191201007-201109

main42607-30020iGWS191200602-200603

sub42607-30021

main42607-30021iGWS191200603-200607

sub42607-30050

main42607-30050iGWS191200607-201112

sub42607-33022

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028iGWS191201007-201109

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGWS191200602-201112

42611UCAP, TIRE VALVE

main90942-05029iGWS191201007-201109

main90942-05037iGWS191200602-201112

42618RETAINER, WHEEL CAP

main42618-24010iGWS191200602-200709

11 parts on this diagram · 2 diagrams in section
