STANDARD TOOL

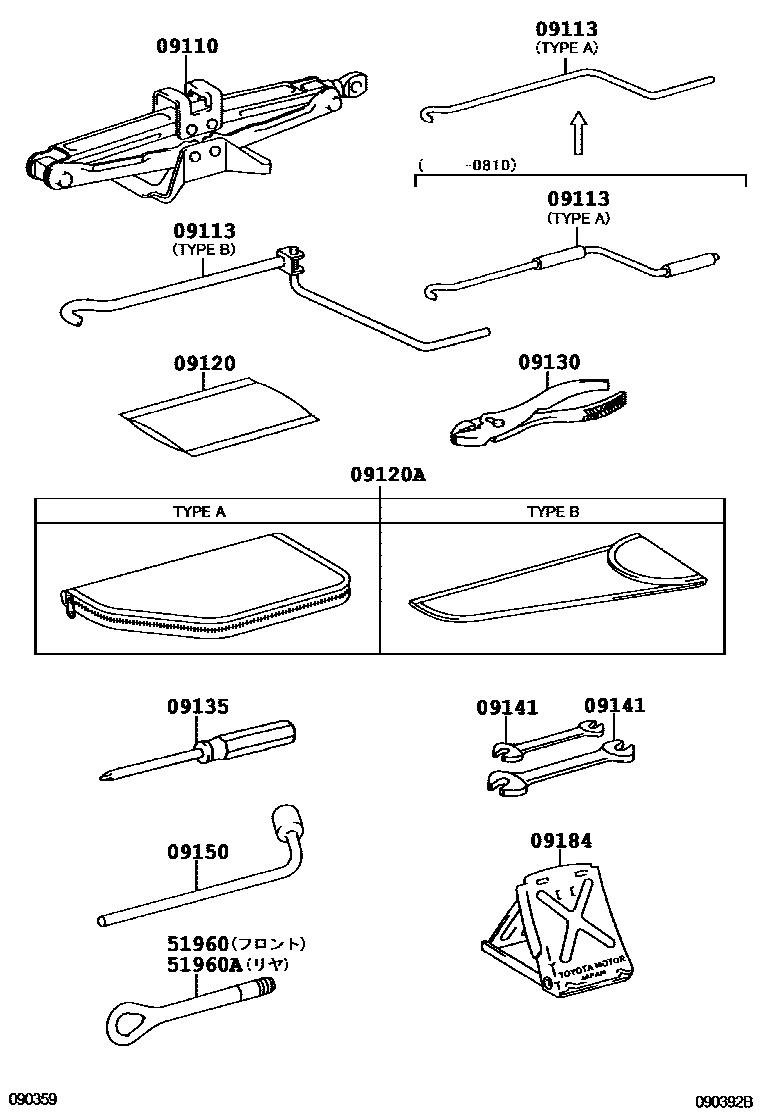

Parts diagram
09110JACK ASSY
main09111-33030i201011
sub09111-76010
main09111-50051i200602-201010
sub09111-76011
09113HANDLE, JACK
main09113-22020i200709-200809
main09113-22020i200602-200709
main09113-44010i200809
09120BAG, TOOL
main09120-53010
main09120-28020
main09120-28040
09120ACASE, TOOL
main09120-28020i200809
main09120-53010i200809
09130PLIERS
main09130-50030i200602-200908
main09130-50040i200908-201112
09135DRIVER, SCREW
main09135-50040i200602-200908
main99915-10700i200908-201112
09141SPANNER
main09141-50050i200602-200908
main09141-50060i200602-200908
main09141-60010i200908-201112
main09141-60020i200908-201112
09150WRENCH, HUB NUT BOX
main09150-50010i200602-200709
sub09150-53010
main09150-50010i200602-200709
sub09150-53010
main09150-50010i200709-200908
sub09150-53010
main09150-53010i200909-201112
sub09150-76020
09184STOPPER, WHEEL
main09184-00010
51960HOOK ASSY, FRONT
main51961-30020i200602-200709
main51961-30020i200709-200712
main51961-53010i200712
51960AHOOK ASSY, REAR
main51961-30020i200602-200709
main51961-30020i200709-200712
main51961-53010i200712

11 parts on this diagram · 1 diagram in section
