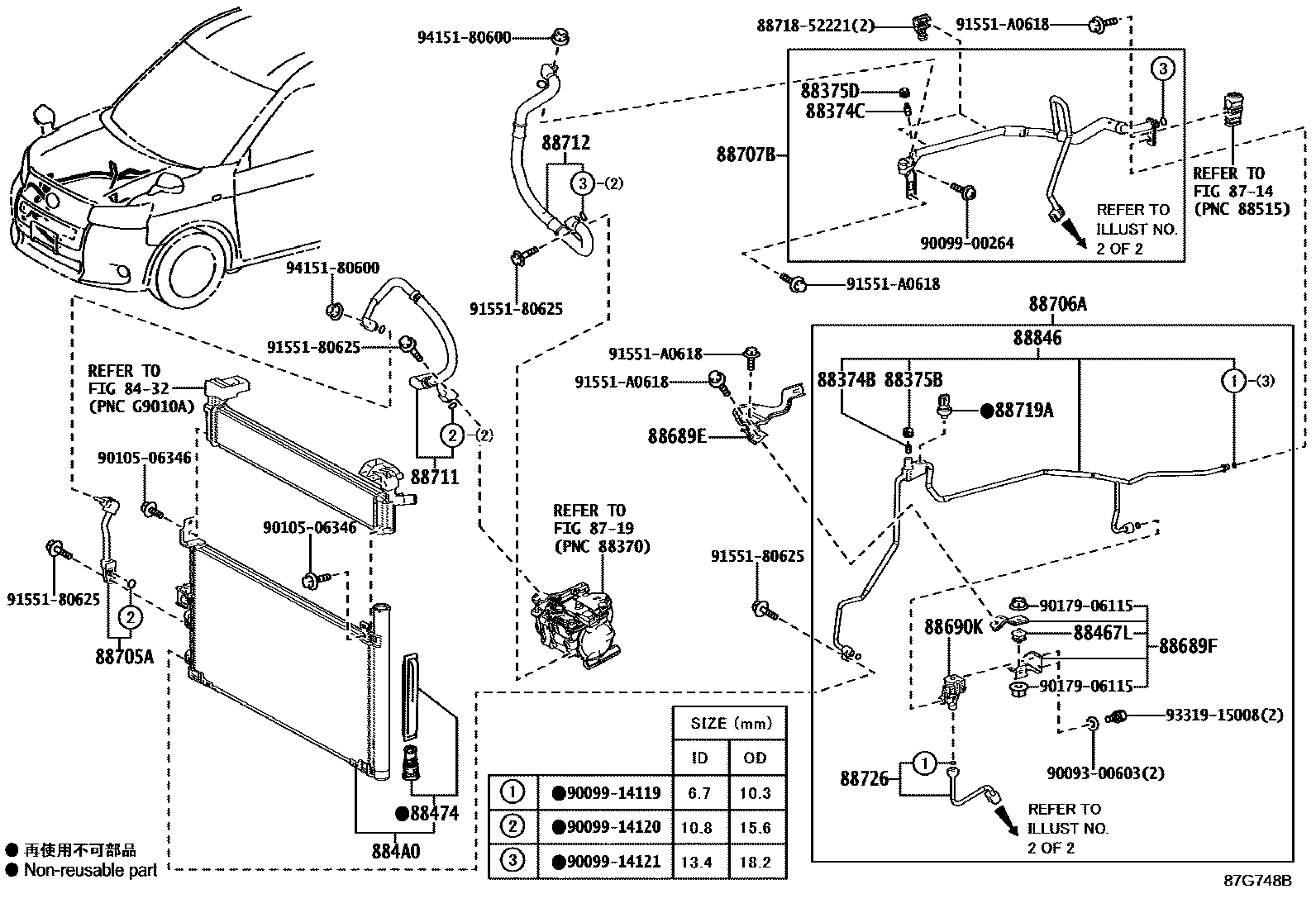

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1�������� 0002 1���

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNTP10201710

88374CVALVE, SERVICE, NO.2

main88374-30010iNTP10201710

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNTP10201710

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNTP10201710

88467LCUSHION, COOLER, NO.1

main88467-95704iNTP10201710

88474DRYER, COOLER

main88474-47020iNTP10201710

884A0CONDENSER ASSY, COOLER

main884A0-15010iNTP10201710

88689EBRACKET, COOLER, NO.1

main88688-15010iNTP10201710

88689FBRACKET, COOLER, NO.2

main88688-15050iNTP10201710

88690KVALVE ASSY, MAGNET

main88690-15010iNTP10201710

88705ATUBE SUB-ASSY, DISCHARGE

main88705-52020iNTP10201710

88706ATUBE SUB-ASSY, LIQUID, A

main88706-15010iNTP10201710

88707BTUBE SUB-ASSY, SUCTION, B

main88707-15010iNTP10201710

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-15010iNTP10201710-202403

sub88711-15011

main88711-15011iNTP10202404

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-15010iNTP10201710-202403

sub88712-15011

main88712-15011iNTP10202404

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iNTP10201710

88726TUBE, LIQUID, NO.2

main88716-15020iNTP10201710

88846TUBE, LIQUID

main88716-15010iNTP10201710

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9009300603

main90093-00603

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9017906115

main90179-06115

9155180625

main91551-80625

91551A0618

main91551-A0618

9331915008

main93319-15008

9415180600

main94151-80600

33 parts on this diagram · 2 diagrams in section
