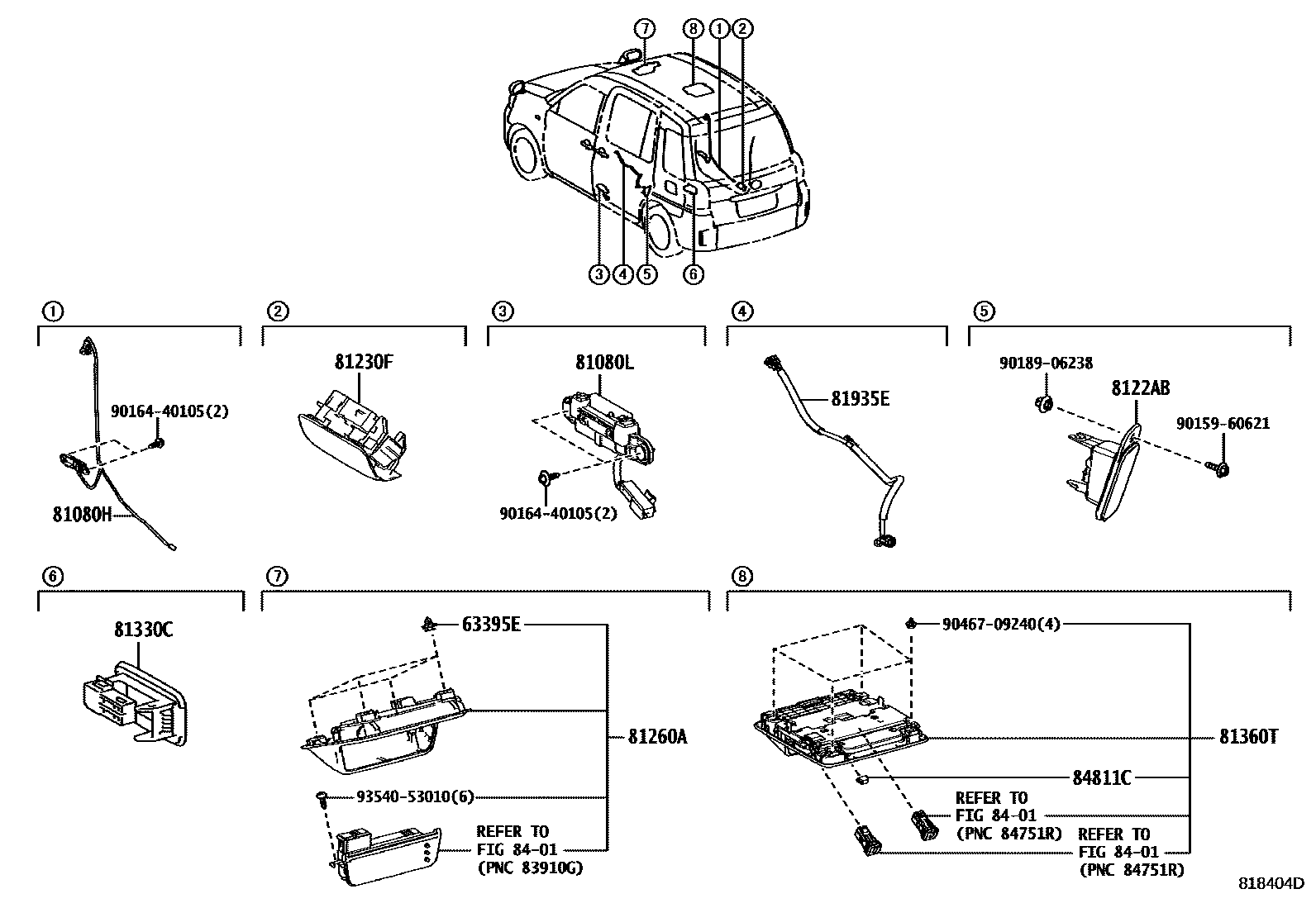

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240iNTP10201710

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-15010iNTP10201710

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-15020iNTP10201710

8122ABLAMP, LED ILLUMINATION, LH

main8122A-15010iNTP10201710

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-11030iNTP10201710

81260ALAMP ASSY, MAP

main81260-15020-B0iNTP10201710-202001

LT.GRAY,TRIM4#

main81260-15021-B0iNTP10202001

LT.GRAY,TRIM4#

81330CLAMP ASSY, LUGGAGE COMPARTMENT

main81330-11010iNTP10201710

81360TLAMP ASSY, SPOT

main81360-15010-B0iNTP10..NAGOM201710

LT.GRAY,TRIM4#

main81360-15030-B0iNTP10..TAKUM201710

LT.GRAY,TRIM4#

81935ECORD ASSY

main81935-15010iNTP10201710

8401

84811CKNOB, SWITCH

main84661-15010-B0iNTP10..TAKUM201710

LT.GRAY,TRIM4#

9015960621

main90159-60621

9016440105

main90164-40105

9018906238

main90189-06238

9046709240

main90467-09240

9354053010

main93540-53010

16 parts on this diagram · 1 diagram in section
