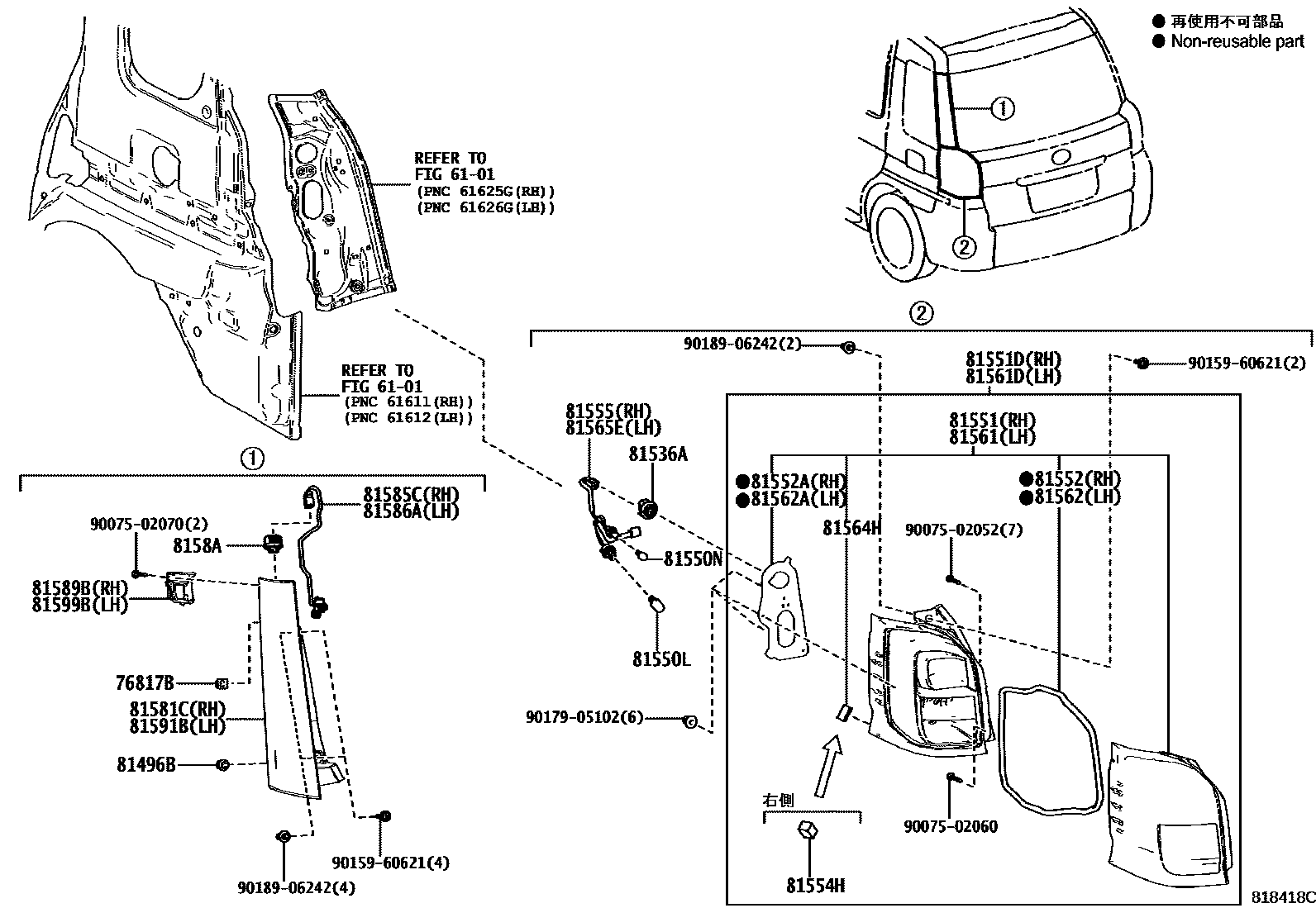

REAR COMBINATION LAMP
6101
76817BCLIP, REAR LAMP
81496BGUIDE, REAR LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551LENS, REAR COMBINATION LAMP, RH
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81554HPACKING, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561LENS, REAR COMBINATION LAMP, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81564HPACKING, REAR COMBINATION LAMP, LH
81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81585CSOCKET & WIRE, REAR LAMP, RH
81586ASOCKET & WIRE, REAR LAMP, LH
81589BCOVER, REAR COMBINATION BACK, RH
81591BLENS AND BODY, REAR LAMP, LH
81599BCOVER, REAR COMBINATION BACK, LH
9007502052
main90075-02052
9007502060
main90075-02060
9007502070
main90075-02070
9015960621
main90159-60621
9017905102
main90179-05102
9018906242
main90189-06242
31 parts on this diagram · 1 diagram in section
