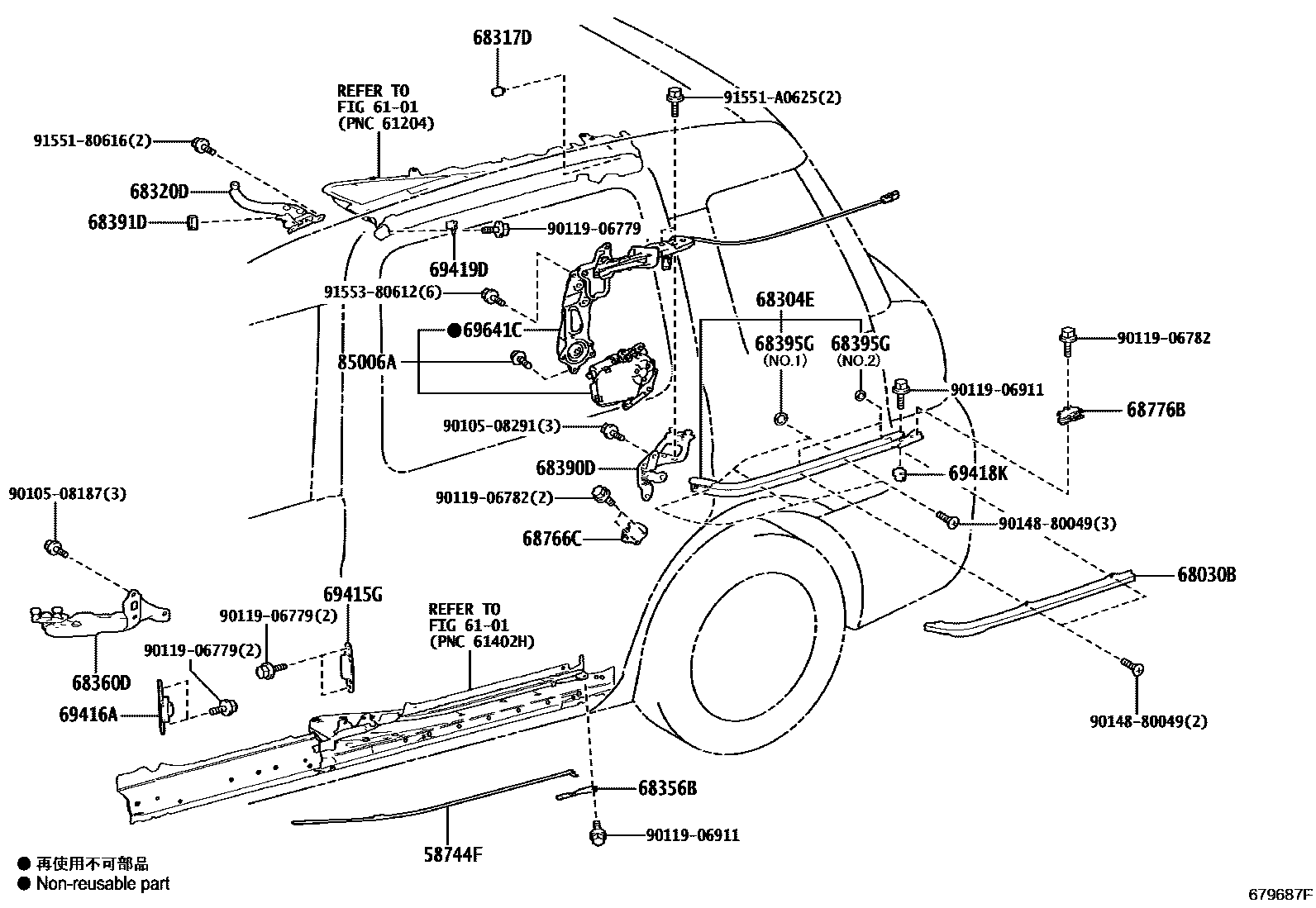

SLIDE DOOR ROLLER & RAIL

58744FPROTECTOR, SLIDE DOOR PANEL, LH

main58744-15010iNTP10201710

6101

68030BGUIDE ASSY, SLIDE DOOR CABLE

main68030-15010iNTP10201710-202108

main68030-15011iNTP10202109

68304ERAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-15010iNTP10201710

68317DSTOPPER, SLIDE DOOR UPPER RAIL

main68317-52020iNTP10201710

68320DROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-15010iNTP10201710

68356BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH

main68356-15010iNTP10201710

68360DROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-15010iNTP10201710-202201

main68360-15011iNTP10202202

68390DHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-15010iNTP10201710

68391DCUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iNTP10201710

68395GPACKING, SLIDE DOOR CENTER RAIL

main68395-52020×2iNTP10201710

main68395-52050×3iNTP10201710

68766CBRACKET, SLIDE DOOR, CENTER NO.1 LH

main68766-15010iNTP10201710

68776BBRACKET, SLIDE DOOR, CENTER NO.2 LH

main68776-52010iNTP10201710

69415GSTOPPER, SLIDE DOOR DOWN FEMALE

main69415-52010iNTP10201710

69416ASTOPPER, SLIDE DOOR DOWN MALE

main69046-52010iNTP10201710

69418KCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-52010iNTP10201710

69419DSTOP, SLIDE DOOR OPEN, LH

main69419-52020iNTP10201710-202103

main69419-52021iNTP10202104

69641CCONTROL, SLIDE DOOR ATTACHMENT, LH

main69641-15010iNTP10201710

85006AMOTOR UNIT, SLIDE DOOR, LH

main85006-15010iNTP10201710-201903

main85006-15011iNTP10201903-202001

main85006-15012iNTP10202001-202105

main85006-15020iNTP10202105

9010508187

main90105-08187

9010508291

main90105-08291

9011906779

main90119-06779

9011906782

main90119-06782

9011906911

main90119-06911

9014880049

main90148-80049

9155180616

main91551-80616

91551A0625

main91551-A0625

9155380612

main91553-80612

28 parts on this diagram · 1 diagram in section
