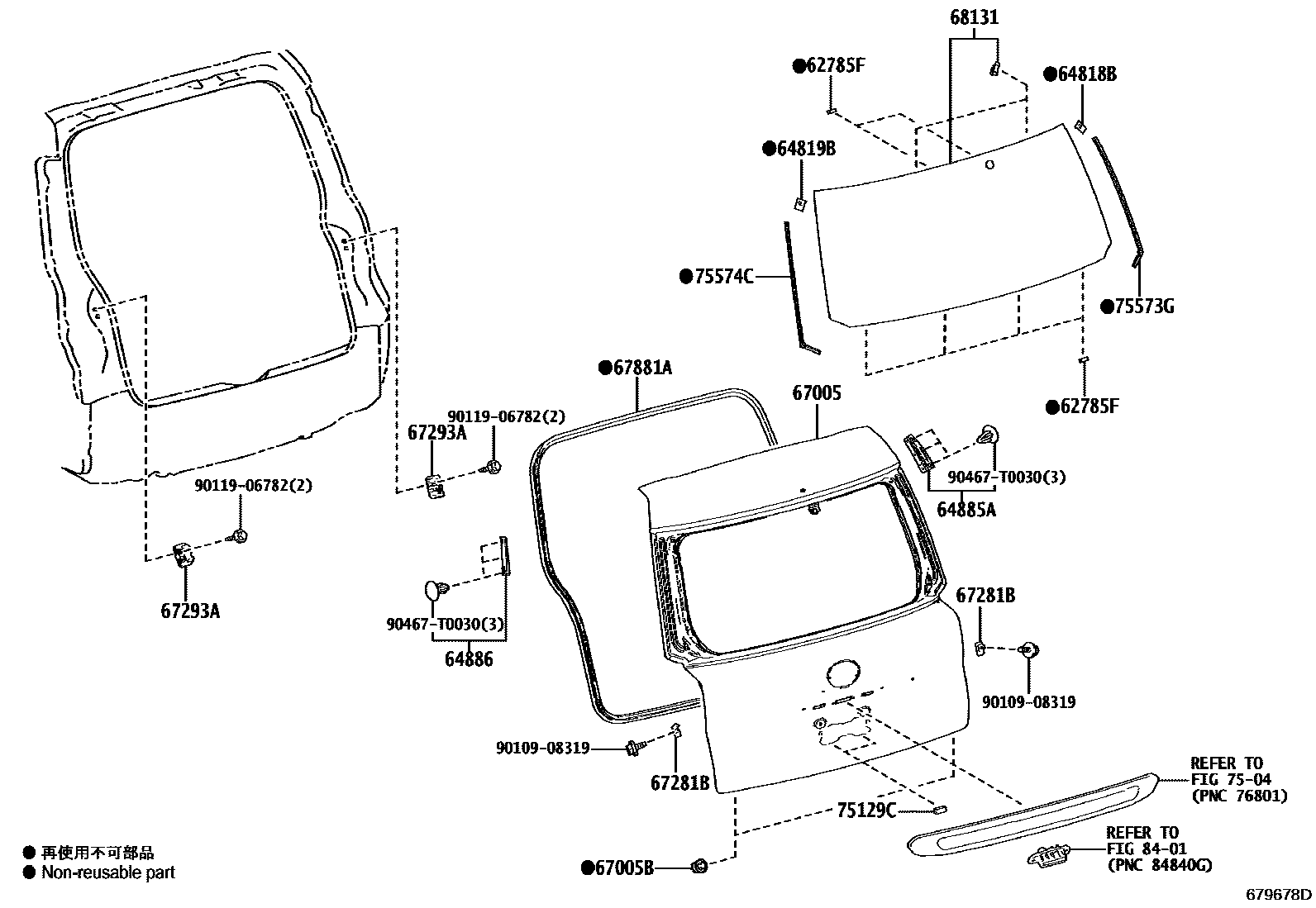

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

62785FSPACER, BACK DOOR GLASS

main62785-12050×6iNTP10201710

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-15010iNTP10201710

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-15010iNTP10201710

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-15010iNTP10201710

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-15010iNTP10201710

67005PANEL SUB-ASSY, BACK DOOR

main67005-15270iNTP10201710

67005BCUSHION(FOR BACK DOOR PANEL)

main68326-52060×2iNTP10201710

67281BSTOPPER, BACK DOOR, LOWER

main67281-15010×2iNTP10201710-201808

main67281-15011×2iNTP10201809

67293ACUSHION, BACK DOOR STOPPER

main67293-15010×2iNTP10201710

67881AWEATHERSTRIP, BACK DOOR

main67881-15040iNTP10201710

68131GLASS, BACK DOOR

main68105-15900iNTP10201710

7504

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iNTP10201710

75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1

main75573-15020iNTP10201710

75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1

main75574-15020iNTP10201710

8401

9010908319

main90109-08319

9011906782

main90119-06782

90467T0030

main90467-T0030

19 parts on this diagram · 2 diagrams in section
