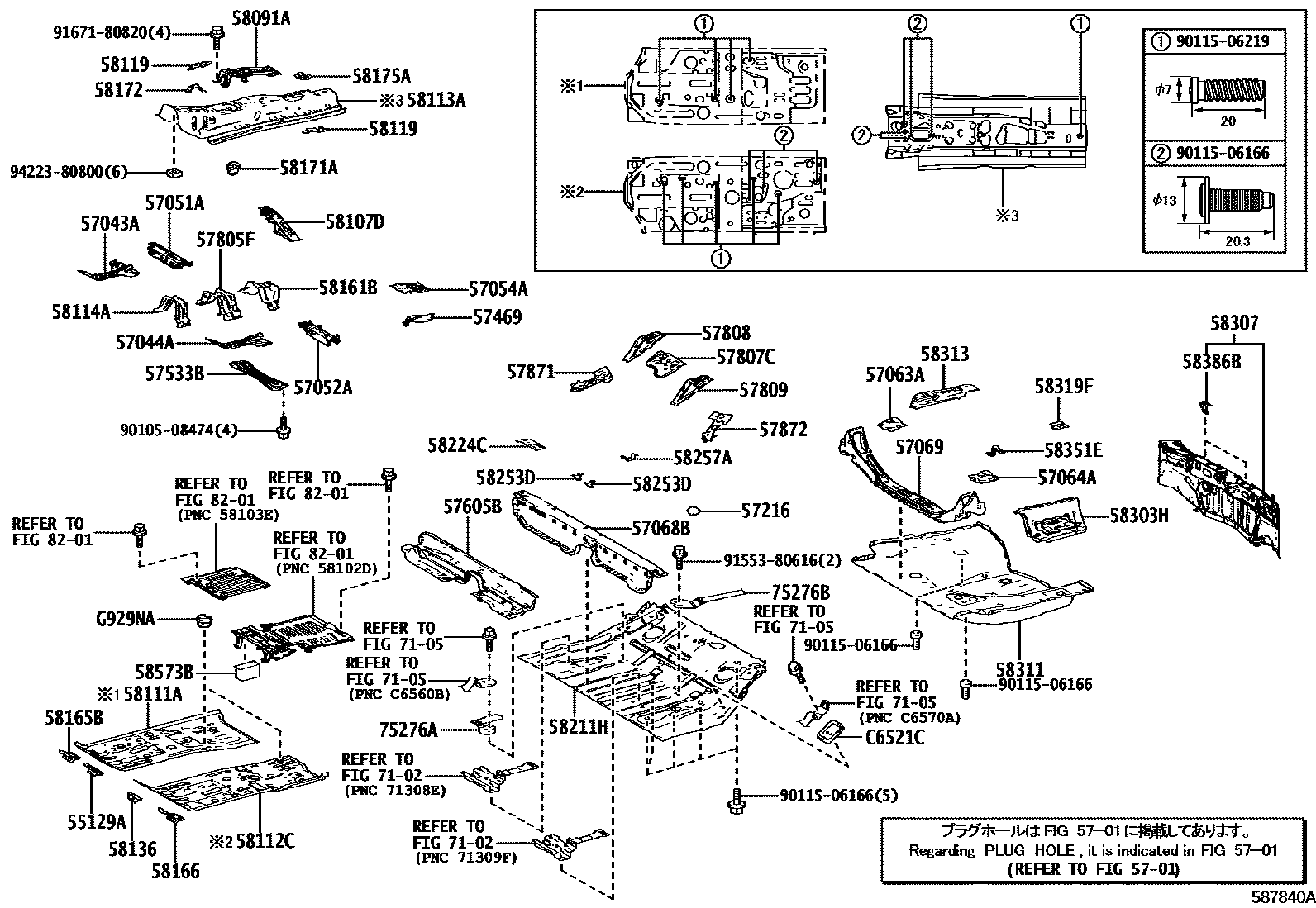

FLOOR PAN & LOWER BACK PANEL

55129ACOVER, FRONT FLOOR HOLE

main55129-52051i201710

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-15010i201710

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-15010i201710

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52060i201710

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-15010i201710

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57053-15010i201710

57063ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH

main57063-15010i201710

57064ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR LH

main57064-15010i201710

57068BMEMBER SUB-ASSY, REAR FLOOR CROSS, FRONT

main57068-15010i201710

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-15010i201710-202403

sub57069-15011

main57069-15011i202404

57216BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57216-15010i201710

57469BRACKET, FRONT SEAT, OUTSIDE

main57469-15010i201710

57533BBRACE, FRONT FLOOR, CENTER

main57533-15010i201710

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-15010i201710

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-52131i201710

57807CREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH

main57807-15010i201710

57808REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.4

main57808-15010i201710

57809REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.5

main57809-15010i201710

57871PATCH, REAR NO.1 SEAT LEG, REAR NO.1

main57871-15010i201710

57872PATCH, REAR NO.1 SEAT LEG, REAR NO.2

main57872-15010i201710

58091AREINFORCEMENT SET, BODY FITTING

main58091-15010i201710

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-15010i201710

58111APAN, FRONT FLOOR, RH

main58111-15901i201710

58112CPAN, FRONT FLOOR, LH

main58112-15901i201710

58113APANEL, FRONT FLOOR, CENTER

main58113-52931i201710

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52071i201710

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-52040i201710

58136COVER, FRONT FLOOR HOLE

main55139-52021i201710

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52141i201710

58165BCOVER, FRONT FLOOR, RH

main58165-52011i201710

58166COVER, FRONT FLOOR, LH

main58166-52011i201710

58171AREINFORCE, PARKING BRAKE BASE

main58171-52090i201710

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020i201710

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020i201710

58211HPAN, CENTER FLOOR

main58211-15901i201710

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-15010i201710

58253DBRACKET, PARKING BRAKE CABLE

main58253-52030i201710

58257ACLAMP, PARKING BRAKE CABLE, NO.2

main58257-15010i201710

58303HPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58303-15020i201710

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-15030i201710

58311PAN, REAR FLOOR

main58311-15022i202105

main58311-15901i201710-201903

sub58311-15030

main58311-15902i201903-202105

sub58311-15030

58313PANEL, REAR FLOOR SIDE, RH

main58313-15030i201710

58319FBRACKET, REAR FLOOR SIDE PANEL

main58319-15020i201710

58351EBRACKET, SPARE WHEEL CLAMP

main58351-33020i201710

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020i201710

58573BPAD, FRONT FLOOR CENTER

main58584-15010i201710

7102

7105

75276ABAND, TOOL, RH

main75276-15010i201710-201903

main75276-15011i201903

75276BBAND, TOOL, LH

main75276-15020i201710-201903

sub75276-15024

sub91553-80616

main75276-15022i201903-202105

sub75276-15023

sub91553-80616

main75276-15023i202105

8201

C6521CPLATE, WHEEL CHAIR LOCK HOLDER, NO.1

mainC652115010i201710-201903

mainC652115011i201903-202105

mainC652115040i202105

G929NAPLUG, BATTERY DRAIN

mainG929N52010i201710

9010508474

main90105-08474

9011506166

main90115-06166

9011506219

main90115-06219

9155380616

main91553-80616

9167180820

main91671-80820

9422380800

main94223-80800

60 parts on this diagram · 2 diagrams in section
