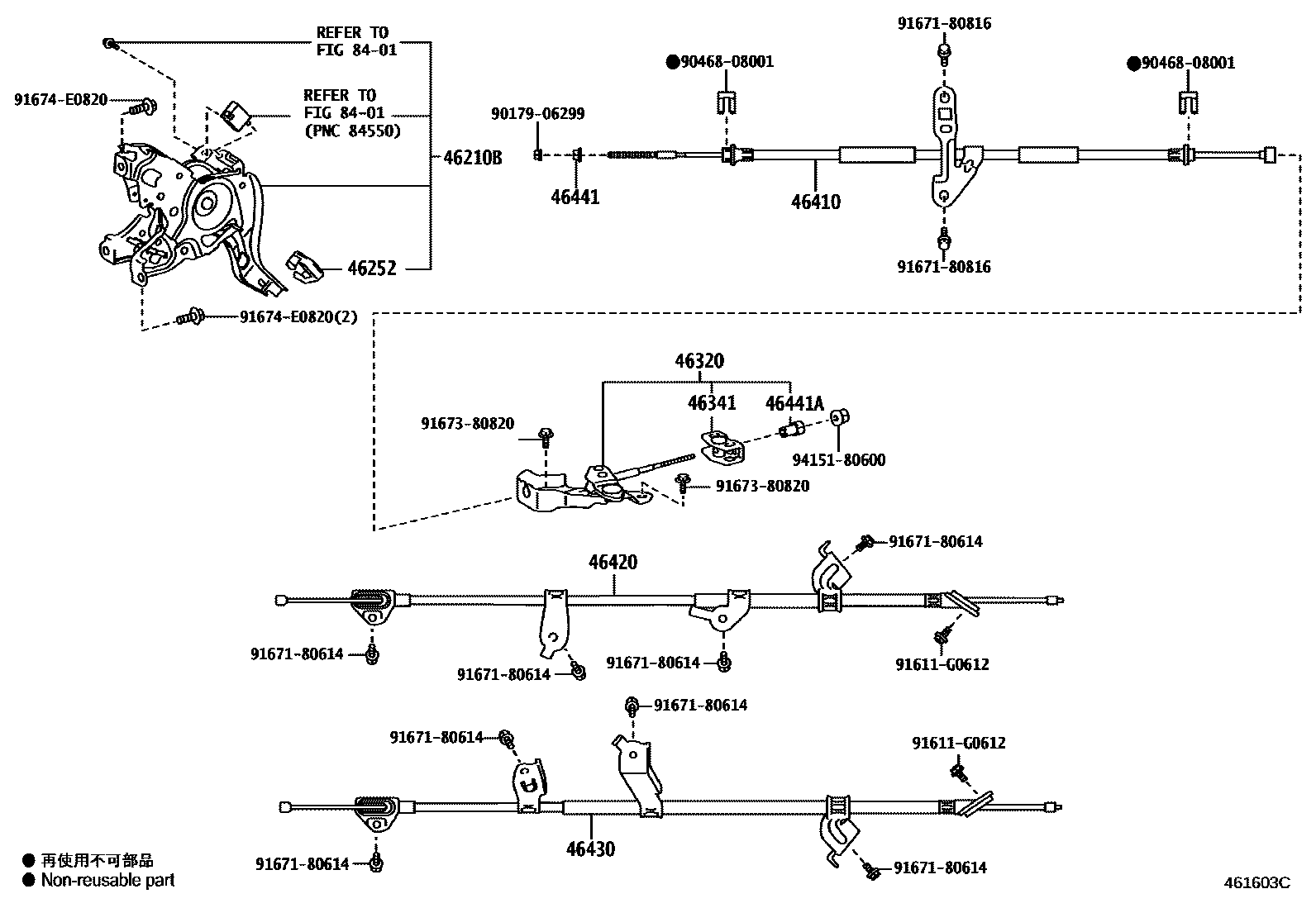

PARKING BRAKE & CABLE

46210BPEDAL ASSY, PARKING BRAKE

main46210-52110iNTP10201710

46252PAD, PARKING PEDAL

main46252-52020iNTP10201710

46320LEVER ASSY, PARKING BRAKE INTERMEDIATE

main46320-52040iNTP10201710

46341EQUALIZER, PARKING BRAKE

main46341-52010iNTP10201710

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-15010iNTP10201710

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-15030iNTP10201710

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-15030iNTP10201710

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iNTP10201710

46441ANUT, WIRE ADJUSTING, NO.2

main46441-52010iNTP10201710

8401

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167180816

main91671-80816

9167380820

main91673-80820

91674E0820

main91674-E0820

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
