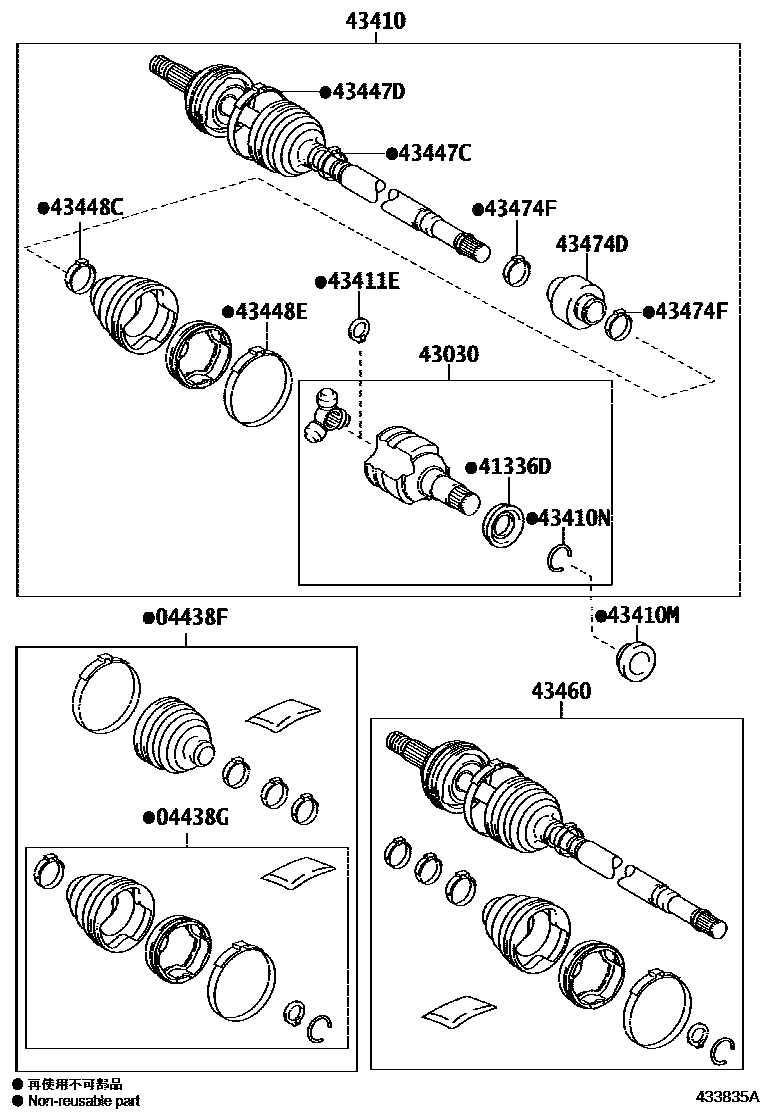

FRONT DRIVE SHAFT

0001 1������ 0002 1�������

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-10030iNTP10201710-201909

sub04428-10031

main04428-10031iNTP10201909

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-10020iNTP10201710

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iNTP10201710

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-52080iNTP10201710

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52400iNTP10201710

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065iNTP10201710

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005iNTP10201710

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iNTP10201710

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iNTP10201710

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iNTP10201710

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iNTP10201710

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iNTP10201710

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-80185iNTP10201710

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12210iNTP10201710

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iNTP10201710

15 parts on this diagram · 2 diagrams in section
