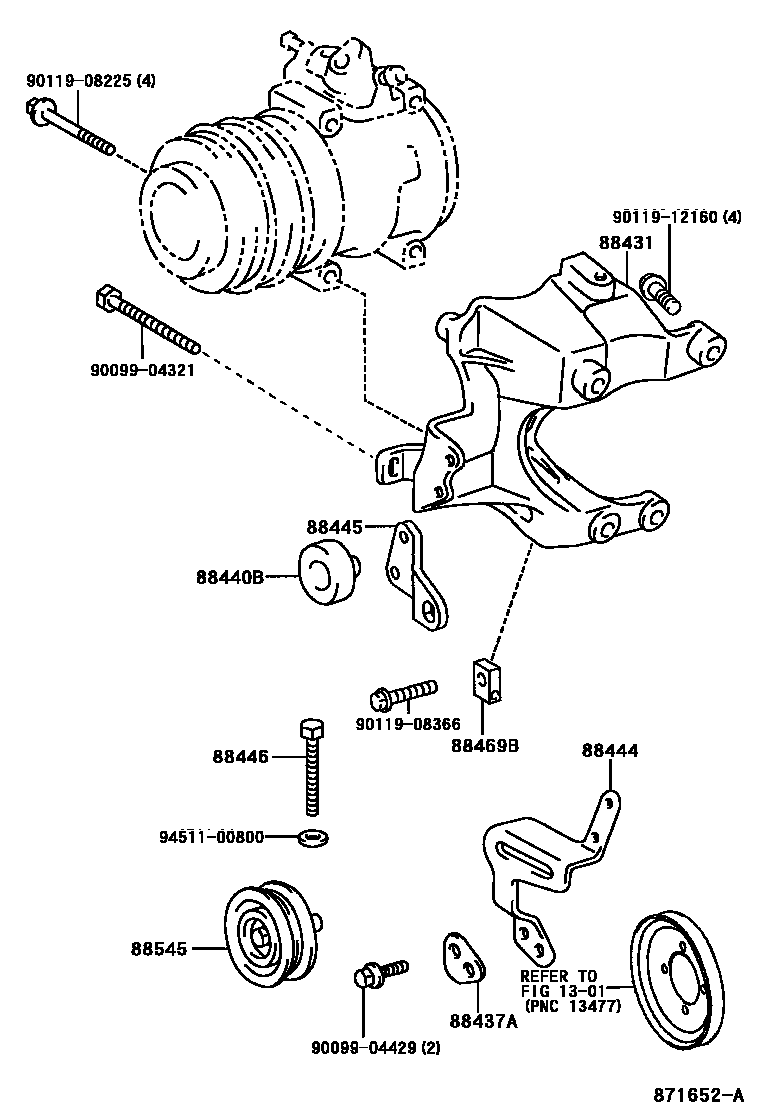

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1301

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22320iLXS11199701-199908

main88431-22320iLXS11199512-199701

main88431-22331iLXS11199512-199701

main88431-22350iGXS10200108-200708

main88431-43010iYXS1#199512-200108

main88431-43020iGXS10199512-200102

main88431-43030iYXS10..4H;YXS10..SED..4HC200108-200706

main88431-43040iGBS12200210

main88431-43050iTSS1#200709

88437AATTACHMENT, COMPRESSOR

main88437-22050iLXS11199512-199908

88440BPULLEY ASSY, IDLE

main88440-20170iGXS10200108-200708

main88440-25070iTSS1#200709

main88440-26070iLXS11199512-199908

main88440-26100iGXS10,YXS1#..ATM199512-200108

main88440-43010iYXS10..CRW..4HC200012-200706

88444BRACKET, IDLE PULLEY

main88444-30290iLXS11199512-199908

88445BRACKET, IDLE PULLEY

main88444-22100iLXS11199512-199701

88446BOLT, IDLE PULLEY

main88446-35010iYXS10..CRW..4HC199512-200706

main90099-04306iGXS10199512-200102

main90099-04417iLXS11199512-199908

88469BCOLLAR

main88469-30280iLXS11199512-199908

88545PULLEY ASSY, IDLE

main88440-35010iLXS11199512-199908

9009904321

main90099-04321

9009904429

main90099-04429

9011908225

main90119-08225

9011908366

main90119-08366

9011912160

main90119-12160

9451100800

main94511-00800

15 parts on this diagram · 9 diagrams in section
