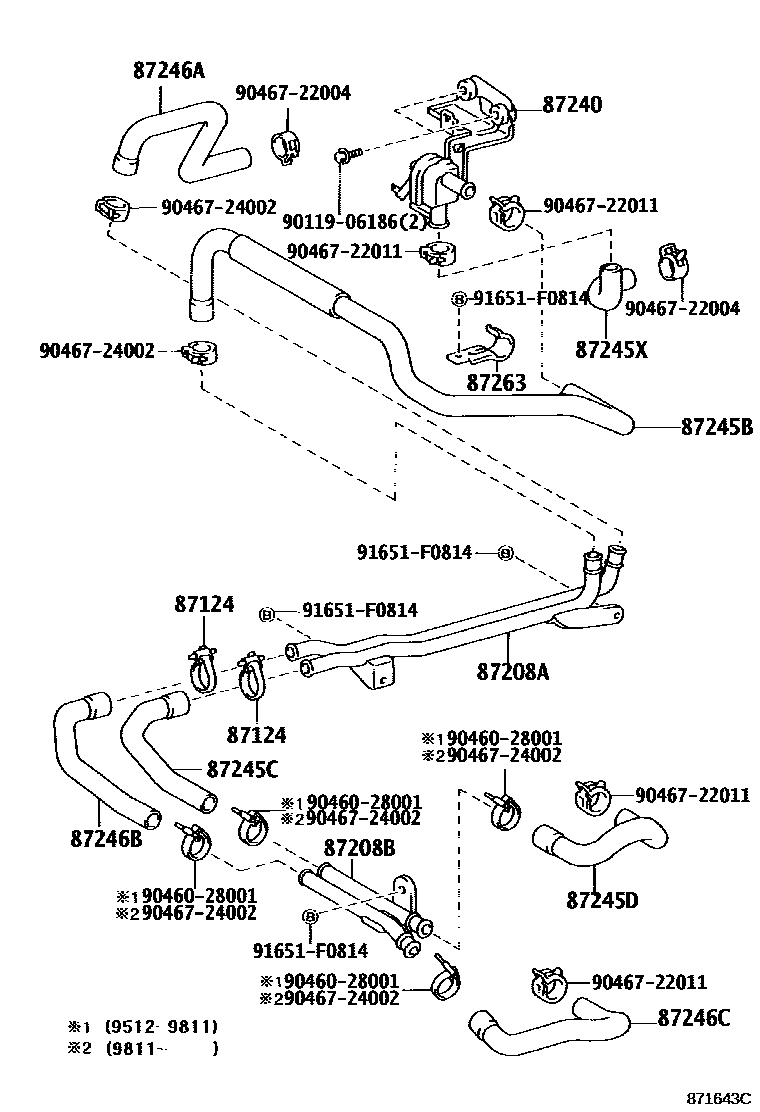

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

87124CLAMP, HEATER

main87124-28030iLXS11199512-199811

main90467-22011iLXS11199811-199908

87208PIPE SUB-ASSY, HEATER WATER

main87208-22272iGXS10199512-200210

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-22211iLXS11199512-199908

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-89144iLXS11199512-199908

87240VALVE ASSY, HEATER WATER

main87240-43010iGXS10199512-200504

sub87240-43011

main87240-43011iTSS1#200505-200707

main87240-43020iLXS11199512-200708

87245BHOSE, HEATER WATER, INLET B

main87245-43020iYXS10..CRW..4HC199512-200706

main87245-43040iGXS10199512-200210

main87245-43050iLXS11199512-199908

main87245-43090iSXS11199604-200108

main87245-43110iGXS12200108-200708

main87245-43130iSXS13200108-200707

main87245-43160iTSS1#200709

87245CHOSE, HEATER WATER ,INLET C

main87245-2A320iLXS11199512-199908

87245DHOSE, HEATER WATER, INLET D

main87245-2A260iLXS11199512-199908

87245XHOSE, HEATER WATER

main87245-43070iYXS10..4HC199512-200707

main87245-43080iGXS12199512-200708

87246AHOSE, HEATER WATER, OUTLET A

main87207-43010iTSS1#200709

main87245-2A400iLXS11199512-199908

main87245-43010iYXS10..CRW..4HC199512-200706

main87245-43030iGXS10199512-200210

main87245-43060iSXS11199604-200108

main87245-43100iGBS12200108-200708

main87245-43120iSXS13200108-200707

87246BHOSE, HEATER WATER, OUTLET B

main87245-2A330iLXS11199512-199908

87246CHOSE, HEATER WATER, OUTLET C

main87245-2A270iLXS11199512-199908

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-22110iLXS11199512-199908

main87263-43010iTSS1#200709

9011906186

main90119-06186

9046028001

main90460-28001

9046722004

main90467-22004

9046722011

main90467-22011

9046724002

main90467-24002

91651F0814

main91651-F0814

19 parts on this diagram · 7 diagrams in section
