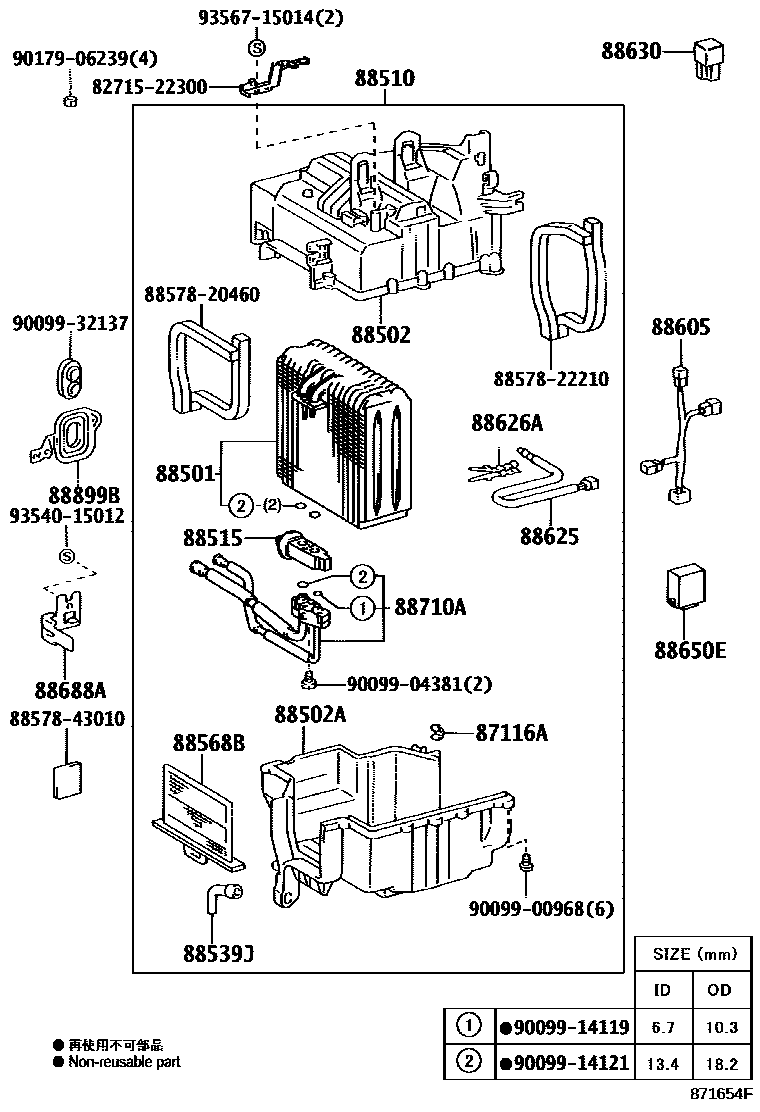

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0007 1 0009 1��(��������)

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22241iYXS10..CRW..4HC200108-200706

main88501-43010iLXS11,SXS11,YXS11..DLX199604-200108

88502CASE SUB-ASSY, COOLING UNIT

main88502-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main88502-43011iYXS10..CRW..4HC200108-200706

main88502-43030iTSS11,13..DLX200709

main88502-43050iTSS10,11..CRW,SED,TAX200808

88502ACASE SUB-ASSY, COOLING UNIT

main88502-43020iGXS1#,YXS1#..CRW,SED,TAX200108-200210

main88502-43021iYXS10..CRW..4HC200108-200706

main88502-43040iTSS11,13..DLX200709

88510UNIT ASSY, COOLER

main88510-43010iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main88510-43030iSXS13200108-200707

main88510-43040iYXS10..SED..4HC200108-200706

main88510-43080iYXS1#..(CRW,TAX)..(4FC,5F)200108

main88510-43090iGBS12200210

main88510-43100iTSS10..SED200808

main88510-43120iTSS10,11..CRW,TAX200808

main88510-43140iTSS11,13..DLX200709

main88510-43160iTSS11..DLX200908

88515VALVE, COOLER EXPANSION

main88515-22180iTSS11,13..DLX200709

main88515-43030iYXS10..CRW..4HC200108-200706

88539JHOSE, DRAIN COOLER

main88539-22130iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main88539-22150×2iYXS11..DLX200108-200801

main88539-22170iSXS11199604-200108

main88539-22171iSXS13200304-200707

main88539-43010iGBS12200210

main88539-43020iTSS11,13..DLX200709

88568BFILTER, AIR

main88568-43010iYXS10..4HC200709

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-43010iYXS1#..(CRW,TAX)..4FC200108

main88605-43020iSXS11199604-200107

main88605-43030iLXS11,YXS11..DLX199604-200107

main88605-43040iTSS10,11..CRW,TAX200808

main88605-43050iTSS11,13..DLX200709

88625THERMISTOR, COOLER, NO.1

main88625-20460iSXS13200108-200707

main88625-22250iTSS10..SED200808

sub88620-26020

main88625-32150iTSS11,13..DLX200709

main88625-43010iYXS1#..(CRW,TAX)..(4FC,5F)200108

88626AHOLDER, THERMISTOR

main88626-28010iYXS10..SED..4HC200108-200706

main88626-40050iLXS11,SXS11,YXS11..DLX199604-200108

88630RELAY ASSY, COOLER

main90987-02009×2iSXS11199604-200108

main90987-02028iYXS10..4HC200709

main90987-04003iSXS11199604-200108

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-43010iYXS1#..(4FC,4H,5F)..(DLX,SG,STD)200108-200808

main88650-43020iGXS10,LXS11199512-200102

main88650-43030iSXS13200108-200707

main88650-43080iTSS10,11..CRW,TAX200808-201801

main88650-43090iTSS1#..DLX,SG,STD200709-201801

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-43020iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main88688-43050iLXS11,SXS11,YXS11..DLX199604-200108

88710ATUBE ASSY, AIR CONDITIONER

main88710-43030iGXS10,LXS11,YXS1#..CRW,TAX199512-200108

main88710-43050iGXS10200108-200210

88899BCOVER, COOLER CONTROL

main88899-22220iYXS10..4H200108-200706

main88899-43020iYXS10..CRW..4HC200108-200706

8271522300BRACKET,WIRING HARNESS CLAMP

main82715-22300

8857820460PAKING, COOLER AIR DUCT

main88578-20460

8857822210PAKING, COOLER AIR DUCT

main88578-22210

8857843010PAKING, COOLER AIR DUCT

main88578-43010

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9009932137

main90099-32137

9017906239

main90179-06239

9354015012

main93540-15012

9356715014

main93567-15014
