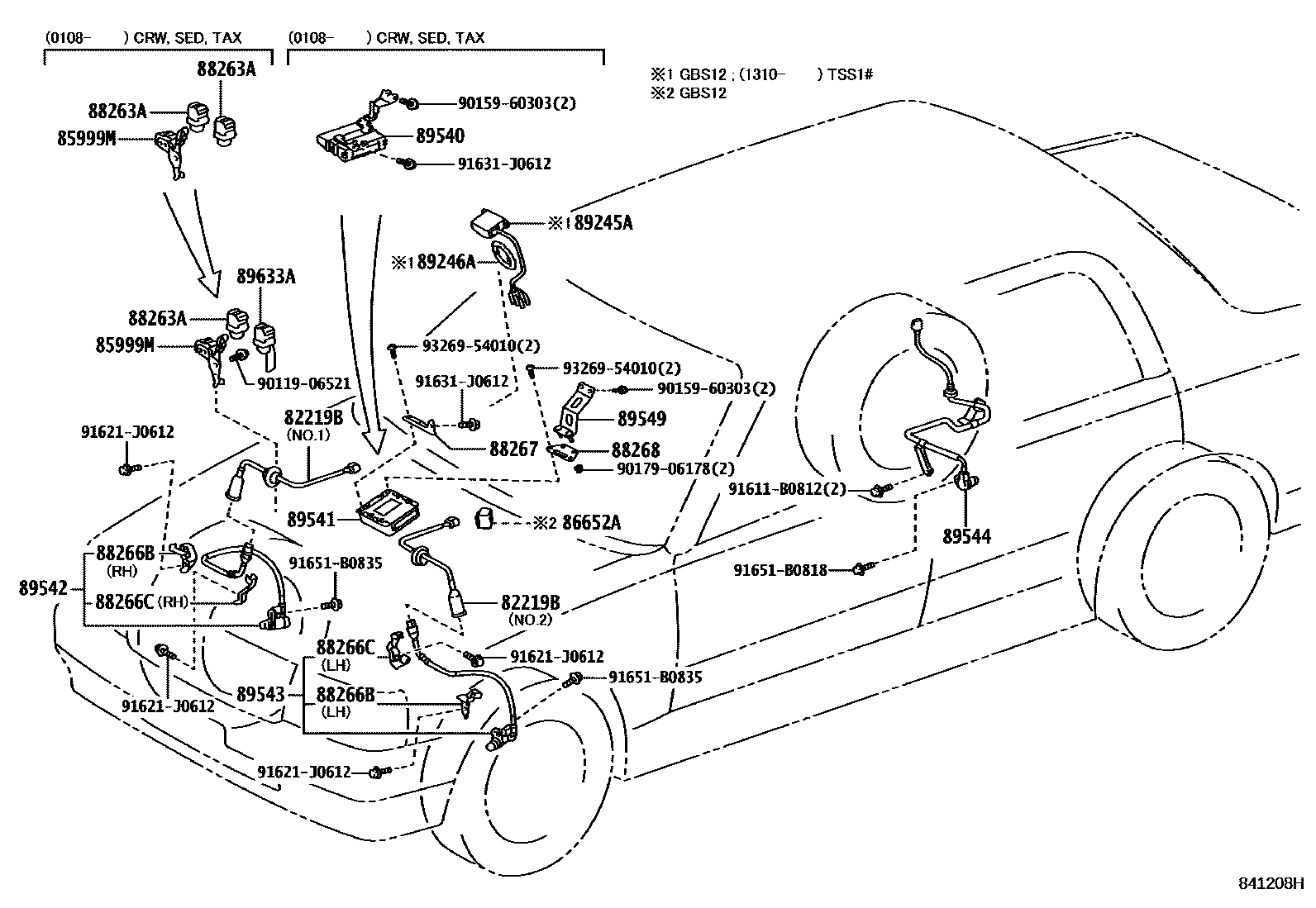

ABS & VSC

0001 1 0002 1

82219BWIRE, SENSOR

main82219-22100iYXS10..CRW..(4FC,4H);GBS12,GXS12,SXS13,YXS1#..KYO,SED,TAX200305-200808

main82219-22120iTSS1#201310

main82219-43010iTSS1#201310

85999MBRACKET, RELAY

main85999-43010iGXS10,LXS11,SXS11,YXS1#199701-200108

main85999-43030iTSS1#200709-201310

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iGBS12200210

88263ARELAY, SKID CONTROL

main88263-35070iGXS10,LXS11,SXS11,YXS1#199701-200108

main88263-43010iSXS13200108-200707

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-22150iGXS10,LXS11,SXS11,YXS1#199701-200108

main88266-22160iGXS10,LXS11,SXS11,YXS1#199701-200108

main88266-43030iGXS10200108-200210

main88266-43040iGXS10200108-200210

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-22170iGXS10,LXS11,SXS11,YXS1#199701-200108

main88266-22180iGXS10,LXS11,SXS11,YXS1#199701-200108

main88266-43050iSXS13200108-200707

main88266-43060iSXS13200108-200707

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-43010iGXS10,LXS11,SXS11,YXS1#199701-200108

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-43010iTSS11,13..DLX200709-201310

89245ASENSOR, STEERING

main89245-22030iGBS12200210-200808

main89245-43020iTSS1#201310

89246ADISC, SENSOR STEERING

main89246-22020iGBS12200210-200808

89540COMPUTER ASSY, SKID CONTROL

main89540-43020iYXS10..4H;YXS10..SED..4HC200108-200706

main89540-43021iTSS11..5F..STD200808-201310

main89540-43030iGBS12200210

main89540-43080iTSS10,11..(CRW,SED,TAX)..4FC200808-201310

89541COMPUTER, SKID CONTROL

main89541-43010iYXS11..DLX200108

89542SENSOR, SPEED, FRONT RH

main89542-22050iGXS10,LXS11,SXS11,YXS1#199701-200108

main89542-22051iYXS10..CRW..4HC200108-200706

89543SENSOR, SPEED, FRONT LH

main89543-22050iGXS10,LXS11,SXS11,YXS1#199701-200108

main89543-22051iYXS10..CRW..4HC200108-200706

89544SENSOR, SKID CONTROL

main89544-43010iGXS10,LXS11,SXS11,YXS1#199701-200108

main89544-43030iTSS1#200709-201310

89549BRACKET, SKID CONTROL COMPUTER

main88269-43010iGXS10,LXS11,SXS11,YXS1#199701-200108

89633ARELAY, TRACTION CONTROL OR VSC

main88263-12110iGXS10,LXS11,SXS11,YXS1#199701-200108

9011906521

main90119-06521

9015960303

main90159-60303

9017906178

main90179-06178

91611B0812

main91611-B0812

91621J0612

main91621-J0612

91631J0612

main91631-J0612

91651B0818

main91651-B0818

91651B0835

main91651-B0835

9326954010

main93269-54010

26 parts on this diagram · 2 diagrams in section
